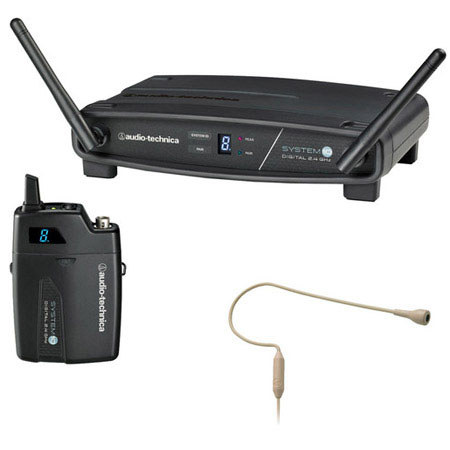

Audio-Technica ATW-1101/H92-TH System 10 Stack-mount Digital Wireless System, Includes ATW-R1100 Receiver, ATW-T1001 Transmitter with PRO 92cW-TH Mic, 2.4 GHz ISM Band

SKU: ATW1101H92TH MFR: ATW-1101/H92-TH
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Audio-Technica wireless microphone system, perfect for presenters.
  • Enjoy freedom of movement with the ATW-1101/H92-TH's reliable 2.4 GHz digital wireless connectivity.
  • The included PRO-92CW headworn microphone ensures consistent sound quality for every performance.
  • Benefit from a wide frequency response (20 Hz - 20 kHz) for natural, detailed vocal reproduction.
  • Confidently present with a typical operating range of 100 feet, thanks to this wireless microphone.
  • Achieve superior sound with >109 dB dynamic range, making this digital wireless system ideal for stages.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-1101/H92 Specifications

  • Operating Frequencies

    2.4 GHz ISM band

  • Dynamic Range

    >109 dB (A-weighted), typical

  • Total Harmonic Distortion

    <0.05% typical

  • Operating Range

    30 m (100') typical
    Open range environment with no interfering signals

  • Operating Temperature Range

    0deg. C to +40deg. C (32deg. F to 104deg. F) Battery performance may be reduced at very low temperatures

  • Frequency Response

    20 Hz to 20 kHz, Depending on microphone type

  • Receiver: Receiving System

    Diversity (frequency/time/space)

  • Receiver: Maximum Output Level

    XLR, balanced: 0 dBV
    1/4" (6.3mm), unbalanced: +6 dBV

  • Receiver: Power Supply

    100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply

  • Transmitter: RF Output Power

    10 mW

  • Transmitter: Spurious Emission

    Following federal and national regulations

  • Transmitter: Input Connections

    Four-pin Locking Connector
    Pin 1: GND, Pin 2: INST INPUT,
    Pin 3: MIC INPUT, Pin 4: DC BIAS +9V

  • Transmitter: Batteries

    Two 1.5V AA, not included

  • Transmitter: Battery Life

    >7 hours (alkaline), Depending on battery type and use pattern

  • Microphone: Element

    Condenser

  • Microphone: Polar Pattern

    Omnidirectional

  • Microphone: Frequency Response

    20 Hz - 20 kHz

  • Microphone: Open Circuit Sensitivity

    -45 dB (5.6 mV) re 1V at 1 Pa

  • Microphone: Maximum Input Sound Level

    116 dB SPL, 1 kHz at 1% T.H.D.

  • Microphone: Signal-to-Noise Ratio

    60 dB, 1 kHz at 1 Pa

  • Microphone: Current Consumption

    0.3 mA typical at 5V

  • Microphone: Voltage Range

    1.5 - 9V

  • Microphone: Connector

    Locking 4-Pin HRS connector

  • Microphone: Cable Length

    55" (139.7cm)

  • Dimensions

    Receiver: 190 x 46.2 x 128.5mm / 7.48 x 1.82 x 5.06" (W x H x D)
    Transmitter: 70.2 x 107 x 24.9mm / 2.76 x 4.21 x 0.98" (W x H x D)
    Microphone: 21.7 x 9.2mm / 0.85 x 0.36" (L x Diam.)
    Boom: 110 x 2.4mm / 4.33 x 0.09" (L x Diam.)

  • Weight

    Receiver: 10.2oz / 290g
    Transmitter: 3.5oz / 100g
    Microphone and Boom: 0.14oz / 3.96g
    Mic, Boom, Connector and Cable: 0.84oz / 23.8g

  • UPC Code

    042005175390

About Audio-Technica ATW-1101/H92

You can elevate your presentations with the Audio-Technica ATW-1101/H92-TH System 10 Stack-mount Digital Wireless System. This professional-grade, high-quality digital wireless system is specifically designed to deliver articulate and clear vocal reproduction, making it an ideal choice for lecturers, presenters, and similar applications.

The system includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter, and the beige PRO 92cW-TH headworn microphone. Operating in the 2.4 GHz frequency range, it offers 24-bit, 48 kHz digital audio, ensuring clear, interference-free transmission even in environments with multiple wireless systems.

The PRO 92cW-TH headworn microphone, designed with a flexible boom and a comfortable earpiece, can be worn over either ear. Its omnidirectional polar pattern and optimized frequency response ensure natural, uncolored sound reproduction, capturing your speech accurately even with the microphone positioned near the corner of your mouth. The microphone also features a windscreen to minimize breath and wind noise, and a 55" cable with a locking 4-pin connector for secure connection to the ATW-T1001 UniPak pocket transmitter.

The ATW-1101/H92-TH wireless system is engineered with advanced features to ensure reliable performance. The automatic frequency selection function quickly identifies and selects open bands for optimal signal clarity. To combat interference, the system employs three diversity techniques: frequency diversity, time diversity, and space diversity. This innovative approach ensures the system selects the clearest signal, delivering consistent, high-quality audio performance.

Whether you're a professional presenter or a lecturer, the Audio-Technica ATW-1101/H92-TH System 10 Stack-mount Digital Wireless System offers the advanced features, durable construction, and superior sound quality you need to deliver your message with clarity and confidence.

Audio-Technica ATW-1101/H92 Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range - completely free from TV interference
  • Three levels of diversity assurance: frequency, time & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4" output jacks with level control

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Audio-Technica wireless microphone system, perfect for presenters.
  • Enjoy freedom of movement with the ATW-1101/H92-TH's reliable 2.4 GHz digital wireless connectivity.
  • The included PRO-92CW headworn microphone ensures consistent sound quality for every performance.
  • Benefit from a wide frequency response (20 Hz - 20 kHz) for natural, detailed vocal reproduction.
  • Confidently present with a typical operating range of 100 feet, thanks to this wireless microphone.
  • Achieve superior sound with >109 dB dynamic range, making this digital wireless system ideal for stages.

What's in the box:

  • Audio-Technica PRO-92CW Omnidirectional Headworn Microphone
  • ATW-T1001 System 10 Digital UniPak Transmitter
  • ATW-R1100 System 10 Digital Wireless Receiver
  • Windscreen
  • Clothing Clip
  • Mic Carrying Pouch
  • Power Supply
  • Audio-Technica 2 Years Limited Warranty
