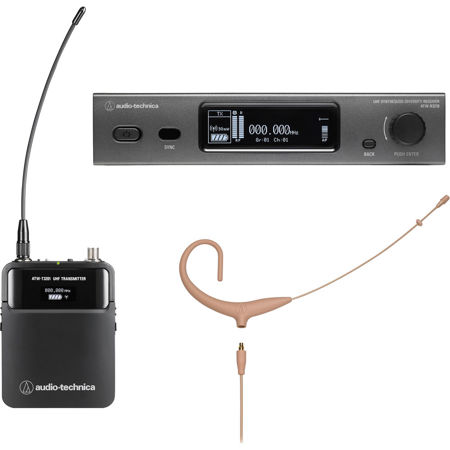

Audio-Technica ATW-3211/892X 3000 Series 4th Gen Wireless System with BP892xcH-TH Headworn Microphone, 470-530 MHz

ATW-T3201 Bodypack Transmitter
All transmitters operate using two AA batteries and feature high- and low-level RF output settings. The low-level setting extends battery life while retaining a strong RF signal link. Charging terminals on the base of each transmitter work with the optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries. Each transmitter's OLED screen presents a great deal of setup and operating information, including battery indicator, mute status and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental activation.

A dual-color status LED illuminates green when power is on and red when the transmitter is muted or battery power is low. Transmitters have a selectable high-pass filter and a gain setting that can be adjusted in 2dB increments. As with the receiver, transmitter settings can be locked. The ATW-T3201 body-pack transmitter features a tactile mute toggle switch (defeatable) for physical confirmation of the mute status when the transmitter display is not visible.

It also has a multifunction button that can be programmed to perform one of two functions when pressed and held: turn off RF transmission or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) An input is available on the transmitter for low impedance microphone and high-impedance musical instrument or line input. The transmitter supplies 5V DC bias to power condenser microphones. The rugged cH-style screw-down 4-pin input connector provides secure connection to cH-style lavalier mics, headworn mics and cables. The durable metal body-pack transmitter features a field replaceable whip antenna, OLED screen and a secure, locking battery compartment door.

ATW-R3210 True Diversity Wireless Receiver
The ATW-R3210 receiver features automatic frequency scanning that eliminates the need for searching for clear channels by automatically selecting the most appropriate frequency for the area in which the wireless is operating. 25kHz frequency spacing enables the system to easily find an open frequency in crowded RF environments, while pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system. Once selected, frequencies can be synced with transmitters using the system's IR sync functionality. The system's squelch setting can be configured to automatically adjust to maximize range while minimizing potential interference. Advanced digital Tone Lock squelch provides enhanced rejection of interference.

In addition, the Tone Lock signal from the transmitter also conveys information on the transmitter's battery condition and mute status back to the receiver for display. The receiver's dual-mode front panel display can switch between the standard view, which provides continuous indication of RF signal strength, frequency, mute status, audio modulation level of the received signal and transmitter information and a performance view, which highlights key metering. Settings can be easily adjusted using the control dial and BACK button located on the receiver's front panel. Settings can also be locked to prevent them from being changed.

Operating on 12V DC, the receiver incorporates rear-panel connections for balanced XLR and unbalanced 1/4" outputs, along with detachable BNC 1/4" wave antennas. Switchable 12V DC antenna power is available on the BNC-type connectors for powered antenna accessories. The receiver is half-width for a standard 1U 19" rack-mount and includes rack-mount adapters.

BP892xcH-TH MicroSet Omnidirectional Condenser Headworn Wireless Microphone
The BP892xcH-TH Omnidirectional Condenser Headworn Wireless Microphone is designed to provide intelligible natural audio for stage and television talent, lecturers, and worship leaders. The microphone includes the BPCB-cH-TH detachable, field-replaceable 1.4 m (55") cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style wireless body-pack transmitters. Other detachable cables with a variety of output terminations are available separately.

The BP892xcH-TH includes the AT8440 cable clip, AT8464x-TH dual-ear adapter kit, AT8157-TH windscreen, AT8171-TH windscreen, two AT8156-TH element covers, a moisture guard, and a carrying case.
