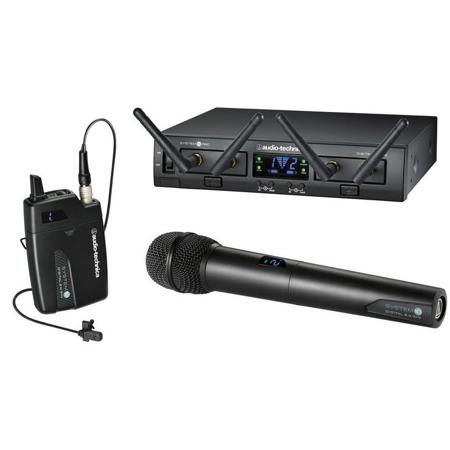

Audio-Technica ATW-1312/L System 10 PRO Digital Wireless System
See all Audio-Technica items

Audio-Technica ATW-1312/L System 10 PRO Digital Wireless System, Includes Rack-Mount Receiver Chassis, 2x Receiver Unit, Unidirectional Microphone/Transmitter

SKU: ATW1312L

This item is no longer available.

Recommended Alternatives

Audio-Technica ATW-1101/G: Picture 1 regular
Audio-Technica ATW-1101/G System 10 Digital Wireless Guitar System, 2.4GHz Range
$409.00
Audio-Technica ATW-1101/H: Picture 1 regular
Audio-Technica ATW-1101/H System 10 Digital Wireless Mic System, 2.4GHz Range
$469.00
Audio-Technica ATW-1101/H92: Picture 1 regular
Audio-Technica ATW-1101/H92 System 10 Digital Miniature Mic System, 2.4GHz Range
$519.00
Audio-Technica ATW-1102: Picture 1 regular
Audio-Technica ATW-1102 System 10 Digital Wireless Microphone System, 2.4GHz
$409.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Gordon W : what does the /L mean?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Audio-Technica ATW-1312/L Specifications

  • Operating Frequencies

    2.4GHz ISM band

  • Dynamic Range

    A-Weighted: >109dB, Typical

  • Total Harmonic Distortion

    <0.05 % Typical

  • Operating Range

    60m / 196.85'

  • Frequency Response

    20Hz to 20kHz

  • Audio Sampling

    24bit / 48kHz

  • Latency

    3.8mS

  • Receiver Unit: System

    Diversity (Frequency/Time/Space)

  • Receiver Unit: Remote Receiver Connector

    RJ45

  • Receiver Unit: Mounting Thread Insert

    1 /4" x 20

  • Receiver Chassis: Maximum Output Level

    XLR, balanced: 0dBV
    1/4" / 6.3mm
    unbalanced: +6dBV

  • Receiver Chassis: Remote Connector

    RJ45

  • Receiver Chassis: Link Connector

    RJ12

  • Receiver Chassis: Power Supply

    100 to 240V AC (50/60Hz) to 12V DC 0.5A
    power supply switched mode external

  • UniPak Transmitter: RF Output Power

    10mW

  • UniPak Transmitter: Spurious Emissions

    Following federal and national regulations

  • UniPak Transmitter: Input Connection

    Four-pin Locking Connector
    Pin 1: GND
    Pin 2: INST INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +9V

  • UniPak Transmitter: Batteries

    2x 1.5V AA (not included)

  • UniPak Transmitter: Battery Life

    >7 hours (Alkaline)

  • Handheld Transmitter: RF Output Power

    10mW

  • Handheld: Spurious Emissions

    Following federal and national regulations

  • Handheld Transmitter: Batteries

    2x 1.5V AA (not included)

  • Handheld Transmitter: Battery Life

    >7 hours (Alkaline)

  • Operating Temperature Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions

    Receiver Unit (W x H x D): 2.24 x 0.75 x 3.06" / 57 x 19 x 77.6mm
    Receiver Chassis (W x H x D): 8.26 x 1.73 x 6.67" / 209.8 x 44 x 169.3mm
    UniPak Transmitter (W x H x D): 2.76 x 4.21 x 0.98" / 70.2 x 107.0 x 24.9mm
    Handheld Transmitter(L x Dia.): 50 x 254.8mm / 1.97 x 10.03"

  • Weight

    Receiver Unit: 64g / 2.26oz
    Receiver Chassis: 940g / 33.16oz
    UniPak Transmitter (without batteries): 100g / 3.53oz
    Handheld Transmitter (without batteries): 280g / 9.88oz

  • UPC Code

    4961310130831

About Audio-Technica ATW-1312/L

Audio-Technica ATW-1312/L Features

  • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4GHz range - completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and setup
  • Three levels of diversity assurance: frequency, time & space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Operates in the 2.4GHz range - completely free from TV interference
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation
  • Three levels of diversity assurance
  • Ground-lift switch helps eliminate audible hum caused by ground loops

What's in the box:

  • Audio-Technica ATW-RC13 Rack-Mount Receiver Chassis
  • 2x ATW-RU13 Receiver Unit
  • ATW-T1002 Handheld Dynamic Unidirectional Microphone/Transmitter
  • ATW-T1001 UniPak Transmitter with MT830cW Lavalier Microphone
  • Power Supply
  • AC Adapter
  • Link Cable
  • Rack-Mount Adapters
  • Joining Plate
  • Rubber Feet
  • Audio-Technica 2 Year Limited Warranty
