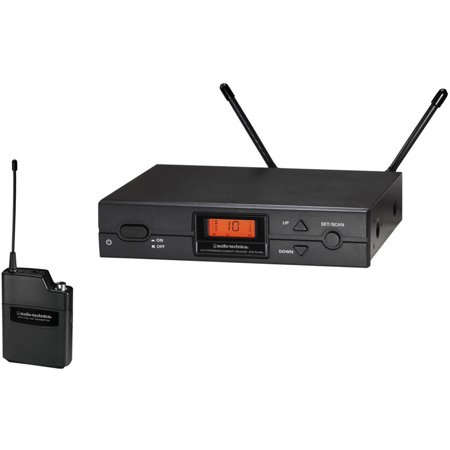

Audio-Technica 2000 Series ATW-2110CS True Diversity UHF Wireless System, S: 508.125-526.825MHz

SKU: ATW2110CS MFR: ATW-2110CS
Earn VIP Reward Points

Key Features

  • Experience clear sound with this Audio-Technica wireless microphone system.
  • Enjoy a reliable UHF wireless connection up to 300' for freedom on stage.
  • This wireless system offers 10 channels, minimizing interference during use.
  • Achieve balanced audio output with XLR & 1/4" connectors on the receiver.
  • Bodypack transmitter provides 7+ hours of battery life for long performances.
  • Perfect for presentations, the wireless microphone ensures clear audio quality.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-2110C Specifications

System
  • Operating Frequency

    UHF: 508.125-526.825MHz

  • Modulation Mode

    FM

  • Maximum Deviation

    +/-40 kHz

  • Frequency Response

    100 Hz to 15 kHz (+1 dB, -3 dB)

  • Operating Range

    300' (100m), typical (Open range environment with no interfering signals)

  • Total Harmonic Distortion

    < 1% (at 1 kHz, +/-20 kHz deviation)

  • Operating Temperature Range

    41 to 113 Degree F (5 to 45 Degree C) (Battery and LCD performance may be reduced at very low temperatures)

  • Number Of Channels

    10 total

Receiver

Jump to...
  • Receiving System

    True diversity

  • Image Rejection

    60 dB nominal, 55 dB minimum

  • RF Sensitivity

    20 dBuV at 60 dB S/N ratio (50 ohms termination)

  • Maximum Output Level

    XLR, balanced: +9 dBV, 1/4" (6.3 mm), unbalanced: +4 dBV

  • Antenna Input

    BNC-type, 50 ohms
    Bias voltage 12V DC, 60 mA, each

  • Power Requirements

    12-18V DC, 500 mA

  • Audio Output Attenuator (ATTN)

    Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB

  • Dimensions (W x D x H)

    8.27 x 6.39 x 1.73" (210 x 162.2 x 44mm) (Not including BNC connectors or feet)

  • Weight

    35.3 oz (1.0kg) (without accessories)

Bodypack Transmitter

Jump to...
  • RF Power Output

    High: 30 mW, Low: 10 mW (switchable), at 50 ohms

  • Battery Life

    High: 7 hours (alkaline)
    Low: 9 hours (alkaline), Depending on battery type and use pattern.

  • Battery

    Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
    Recharging power for NiMH batteries (with ATW-CHG2), 2x 3.2 V DC, 230 mA

  • Input Connections

    Four-pin Locking Connector
    Pin 1: GND
    Pin 2: INST INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +9V

  • Spurious Emissions

    Following federal and national regulations

  • Battery Info

    Required, Not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (W x D x H)

    2.60 x 0.89 x 3.63" (66 x 22.5 x 92.3mm)

  • Weight

    2.9 oz (81g) (without batteries)

  • UPC Code

    4961310162818

About Audio-Technica ATW-2110C

It delivers rock-solid, dependable performance, making the Audio-Technica 2000 Series ATW-2110CS True Diversity UHF Wireless System an ideal choice for a wide range of applications. Designed to cater to MI/live performances, fixed installations, public address systems, A/V rental houses, and places of worship, this wireless system combines professional-grade features with affordability. Operating within the 508.125-526.825MHz frequency range, it offers 10-channel frequency agility, ensuring seamless adaptability to various environments.

The system is equipped with switchable antenna power, enhancing signal reliability and coverage. For added convenience, the optional ATW-CHG2 two-bay recharging station is available to efficiently recharge NiMH batteries in ATW-T210 body-pack transmitters, supporting any combination of units. The 2000 Series stands out with its True Diversity UHF wireless technology, which includes automatic frequency scanning. This feature simplifies setup by automatically identifying and setting the optimal frequency at the touch of a button.

With 10 selectable channels, users can operate multiple systems simultaneously without encountering frequency coordination issues or group selection conflicts. Additionally, the system incorporates Audio-Technica's Tone Lock squelch, ensuring clear audio transmission by minimizing interference. The easy-to-read LCD information display provides users with essential system status updates, enhancing usability and control.

Audio-Technica ATW-2110C Features

  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning
  • 10 compatible user-switchable channels
  • Antenna power available for powered antennas & other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
  • ATW-T210 Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience clear sound with this Audio-Technica wireless microphone system.
  • Enjoy a reliable UHF wireless connection up to 300' for freedom on stage.
  • This wireless system offers 10 channels, minimizing interference during use.
  • Achieve balanced audio output with XLR & 1/4" connectors on the receiver.
  • Bodypack transmitter provides 7+ hours of battery life for long performances.
  • Perfect for presentations, the wireless microphone ensures clear audio quality.

What's in the box:

  • ATW-R2100c Receiver
  • ATW-T210c UniPak Bodypack Transmitter
  • 2x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapters
  • (Battery Not Included)
  • Audio-Technica 2 Year Limited Warranty
