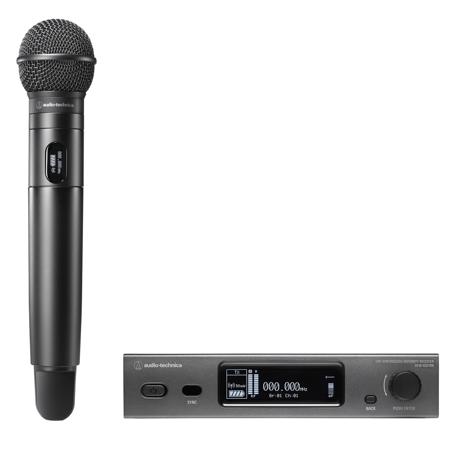

Audio-Technica ATW-3212N 3000 Series 4th Gen Wireless Network Enabled System, Includes ATW-R3210N Rx, ATW-T3202 Handheld Tx, ATW-C510 Cardioid Dynamic Mic Capsule, DE2: 470-530 MHz

SKU: ATW321510DE2 MFR: ATW-3212NC510DE2
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Audio-Technica wireless microphone system.
  • Enjoy reliable wireless range up to 300' for dynamic stage performances or presentations.
  • The ATW-3212N handheld wireless microphone system is network-enabled for easy setup.
  • Benefit from the interchangeable mic capsule, perfect for adapting to various vocal styles.
  • Achieve clear audio with the cardioid dynamic mic, minimizing background noise effectively.
  • This durable wireless microphone system ensures long-lasting performance for any event.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-3212N Wireless Network System, ATW-C510 Capsule, 470-530MHz Specifications

Overall System

Overall System

Jump to...
  • Operating Frequencies

    Band DE2: 470.125 to 529.975 MHz

  • Minimum Frequency step

    25kHz

  • Moderation Mode

    FM

  • Dynamic Range

    115dB (A-weighted), typ.

  • Total Harmonic Distortion

    < 1% (at 1kHz, 17.5kHz deviation)

  • Operating Range

    300' (100m), typical
    Open range environment with no interfering signals.

  • Operation Temperature Range

    23 Degree to 113 Degree (-5 Degree C to +45 Degree C)
    Battery performance may be reduced at very low temperatures.

  • Frequency Response

    T3201: 40Hz-13kHz (-3dB)

ATW-R3210N Receiver

Jump to...
  • Receiving System

    True diversity

  • Image Rejection

    60dB nominal

  • RF Sensitivity

    20dBuV at 60dB S/N ratio

  • Maximum Output Level

    XLR. Balanced: +14dBV

  • Antenna Input

    BNC-Type, 50 Ohm
    Bias: 12VDC, 160mA total

  • Power Requirements

    12V, 1A

  • Dimensions

    8.27 x 1.71 x 7.52" (210 x 43.4 x 191mm)

  • Weight

    38.80 oz (1100g)

ATW-T3202 Transmitter

Jump to...
  • RF Power Output

    High: 30mw, Low: 10mWat 50Ohm, switchable

  • Spurious Emissions

    Following federal and national regulations

  • Microphone Element

    Interchangeable industry standard thread

  • Batteries

    Two 1.5V AA, not included
    30mW : 8 hours
    10mW : 9 hours
    30mW : 9 hours
    10mW: 9.5 hours

  • Dimensions

    7.60 x 1.46" (193 x 37mm) (without capsule)

  • Weight

    7.05 oz (200g) (without capsule)

ATW-C510 Capsule

Jump to...
  • Element

    Dynamic

  • Polar pattern

    Cardioid

  • Weight

    4.6 oz (129g)

  • UPC Code

    042005206568

About Audio-Technica ATW-3212N Wireless Network System, ATW-C510 Capsule, 470-530MHz

Enhance your audio experience with the sophisticated ATW-3212N 3000 Series 4th Gen Wireless Network Enabled System. This advanced system, from a reputable brand known for high-quality audio equipment, offers easy setup, versatile operation, and delivers rock-solid, richly detailed sound reproduction.

The 4th generation 3000 Series is a high-tech, professional-grade wireless system that includes an ATW-R3210N receiver, an ATW-T3202 handheld transmitter, and an ATW-C510 cardioid dynamic mic capsule. Operating on a wide frequency range of 470-530 MHz, this innovative system is designed for a variety of applications, including live performances, broadcasting, and any other scenario where wireless audio transmission is required.

The network-enabled system allows users to remotely configure, monitor, and control the system via the A-T Wireless Manager software. This feature eliminates the need for a 1/4" audio output, retaining only the balanced XLR output for superior sound quality.

The ATW-3212N 3000 Series offers a class-leading 60 MHz tuning range, more than double that of previous models. Frequencies can be easily scanned and selected on the receiver, then synced with the transmitter via IR sync functionality. The system also allows for a backup frequency that can be quickly swapped in the event of unexpected interference.

The ATW-T3201 body-pack and ATW-T3202 handheld transmitter are equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with an ATW-C510 dynamic cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules.

The ATW-3212N 3000 Series 4th Gen Wireless Network Enabled System is not just a product, it's a solution for all your wireless audio transmission needs. Experience the power and flexibility to operate within the congested UHF spectrum with this advanced system.

Audio-Technica ATW-3212N Wireless Network System, ATW-C510 Capsule, 470-530MHz Features

  • Receiver/Transmitter Features
  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
  • Frequency band: DE2 (470-530 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced audio output jack

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Audio-Technica wireless microphone system.
  • Enjoy reliable wireless range up to 300' for dynamic stage performances or presentations.
  • The ATW-3212N handheld wireless microphone system is network-enabled for easy setup.
  • Benefit from the interchangeable mic capsule, perfect for adapting to various vocal styles.
  • Achieve clear audio with the cardioid dynamic mic, minimizing background noise effectively.
  • This durable wireless microphone system ensures long-lasting performance for any event.

What's in the box:

  • ATW-T3202 Handheld Transmitter
  • ATW-R3210N Receiver
  • ATW-C510 Cardioid Dynamic Mic Capsule
  • AT8456a Quiet-Flex Microphone Stand Clamp
  • 2x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapter
  • AT8631 Joining Plate
  • Audio-Technica 2 Year Limited Warranty
