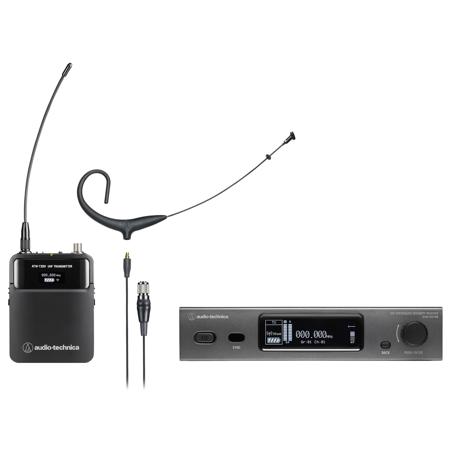

Audio-Technica ATW-3211N 3000 Series 4th Gen Wireless Network Enabled System, Includes ATW-R3210N Rx, ATW-T3201 Body-Pack Tx, BP894xcH Cardioid Headworn Mic, EE1: 530-590 MHz

SKU: ATW32N89XEE1 MFR: ATW-3211N894XEE1
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Audio-Technica wireless microphone system.
  • Enjoy extended battery life for all-day use with the ATW-T3201 body-pack transmitter.
  • Achieve crystal-clear audio for presentations using the BP894xcH cardioid headworn mic.
  • Benefit from a wide wireless range, perfect for large venues & dynamic performances.
  • The network-enabled system offers easy setup and control for professional audio engineers.
  • Ensure clear communication with excellent noise cancellation in any environment.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-3211N Wireless Network System, BP894xcH Mic, EE1: 530-590 MHz Specifications

Overall System

Overall System

Jump to...
  • Operating Frequencies

    Band EE1: 530.000 to 589.975 MHz

  • Minimum Frequency step

    25kHz

  • Moderation Mode

    FM

  • Dynamic Range

    115dB (A-weighted), typ.

  • Total Harmonic Distortion

    < 1% (at 1kHz, 17.5kHz deviation)

  • Operating Range

    300' (100m), typical
    Open range environment with no interfering signals.

  • Operation Temperature Range

    23 Degree to 113 Degree (-5 Degree C to +45 Degree C)
    Battery performance may be reduced at very low temperatures.

  • Frequency Response

    T3201: 40Hz-13kHz (-3dB)

ATW-R3210N Receiver

Jump to...
  • Receiving System

    True diversity

  • Image Rejection

    60dB nominal

  • RF Sensitivity

    20dBuV at 60dB S/N ratio

  • Maximum Output Level

    XLR. Balanced: +14dBV

  • Antenna Input

    BNC-Type, 50 Ohm
    Bias: 12VDC, 160mA total

  • Power Requirements

    12V, 1A

  • Dimensions

    8.27 x 1.71 x 7.52" (210 x 43.4 x 191mm)

  • Weight

    38.80 oz (1100g)

ATW-T3201 Transmitter

Jump to...
  • RF Power Output

    High: 30mw, Low: 10mW at 50 Ohm, switchable

  • Spurious Emissions

    Following federal and national regulations

  • Input Connection

    Pin1: GND
    Pin2: Inst Input
    Pin3: Mic Input
    Pin4: BIAS +5V

  • Batteries

    Two 1.5V AA, not included
    30mW : 8 hours
    10mW : 9 hours
    30mW : 9 hours
    10mW: 9.5 hours

  • Dimensions

    3.23 x 2.52 x 0.91" (82 x 64 x 23mm)

  • Weight

    3.60 oz (102g)

BP894xcH Microphone

Jump to...
  • Element

    Fixed-charge back plate, permanently polarized condenser

  • Polar pattern

    Cardioid

  • Frequency response

    20-20,000 Hz

  • Low frequency roll-off

    80 Hz, 18 dB/octave (wired only)

  • Open circuit sensitivity

    ½½ 47 dB (4.3 mV) re 1V at 1 Pa

  • Impedance

    250 ohms (wired only)

  • Maximum input sound level

    135 dB SPL, 1 kHz at 3% T.H.D.

  • Dynamic range (typical)

    98 dB, 1 kHz at 3% T.H.D. Max SPL (wired only)

  • Signal-to-noise ratio1

    57 dB, 1 kHz at 1 Pa

  • Phantom power requirements

    11-52V DC, 2 mA typical (wired only)

  • Current consumption

    0.2 mA typical at 5V (wireless only)

  • Voltage range

    3.5-10V (wireless only)

  • Switch

    Flat, roll-off (wired only)

  • Output connector (power module)

    Integral 3-pin XLRM-type

  • Cable

    Detachable 4.6' (1.4m) long, 0.06" (1.52mm) diameter, 2- or 3-conductor shielded cable (termination dependent)

  • Audio-Technica case style

    M40

  • Dimensions (L x Dia)

    Microphone: 0.38 x 0.10" (9.5 x 2.6mm)
    Boom: 3.87 x 0.04" (98.4 x 1.07mm)
    Power module (wired only): 3.94 x 0.74" (100.0 x 18.9mm)

  • Weight

    Microphone, boom & earpiece (Without Cable): 0.07 oz (2.0g)
    Power module (wired only): 3.0 oz (85g)

  • UPC Code

    042005206537

About Audio-Technica ATW-3211N Wireless Network System, BP894xcH Mic, EE1: 530-590 MHz

3000 Series (4th Gen) Network Enabled Systems
The fourth-generation 3000 Series wireless systems provide easy setup, versatile operation and rock-solid, richly detailed reproduction sound. New network enabled systems allow users to remotely configure, monitor and control network enabled 3000 Series via A-T Wireless Manager software.

All 3000 Series Network enabled systems will feature:
• Network port for monitoring and control via A-T Wireless Manager software
• An AT8631 joining plate included in each network enabled system.
• Network enabled receivers will no longer have a 1/4" audio output but will retain the balanced XLR output.

All users now have the option to purchase non-network or network enabled systems based on their needs. Network enabled systems feature monitor and control functions via A-T's Wireless Manager software, not network audio.

3000 Series Network Overview
The 3000 Series (fourth generation) wireless systems provide easy setup, versatile operation and rock-solid, richly detailed sound reproduction. 60 MHz tuning bandwidth, 300' operating range and backup frequency. Body-pack transmitter with rugged cH-style screw-down 4-pin connector; handheld transmitter with interchangeable capsules (industry standard thread mount). True Diversity, frequency agility, UHF. Available network-enabled systems offer network monitoring and control via Audio-Technica's Wireless Manager software.

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands DE2 (470-530 MHz) and EE1 (530-590 MHz) that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Available system configurations feature an ATW-R3210 or ATW-R3210N receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables.

The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N charging docks (sold separately) to recharge NiMH batteries.

3000 Series network-enabled systems offer the same features and configurations as the standard systems along with network monitoring and control via Audio-Technica's Wireless Manager software. Each network-enabled receiver also comes with an AT8631 joining plate.

BP894xcH Headworn Microphone
The BP894xcH Cardioid Condenser Headworn Wireless Microphone features a rotating capsule housing with talk-side indicator for perfect polar pattern placement from either ear. It is designed to provide intelligible natural audio for stage and television talent, lecturers, and worship leaders. The microphone includes the BPCB-cH detachable, field-replaceable 1.4 m (55") cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style wireless body-pack transmitters. Other detachable cables with a variety of output terminations are available separately.

Audio-Technica ATW-3211N Wireless Network System, BP894xcH Mic, EE1: 530-590 MHz Features

  • Receiver/Transmitter Features
  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
  • Frequency band: EE1 (530-590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced audio output jack
  • BP894xcH Headworn Microphone Features
  • Features a rotating capsule housing with talk-side indicator for perfect polar pattern placement from either ear
  • Subminiature cardioid condenser capsule offers extremely intelligible, natural vocal reproduction
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
  • Ergonomic under-ear design the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
  • BPCB-cH detachable, field-replaceable 1.4 m (55") cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style wireless body-pack transmitters
  • Handles high sound pressure levels with ease
  • Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that's worn on both ears for maximum stability and comfort
  • Constructed of hypoallergenic materials

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Audio-Technica wireless microphone system.
  • Enjoy extended battery life for all-day use with the ATW-T3201 body-pack transmitter.
  • Achieve crystal-clear audio for presentations using the BP894xcH cardioid headworn mic.
  • Benefit from a wide wireless range, perfect for large venues & dynamic performances.
  • The network-enabled system offers easy setup and control for professional audio engineers.
  • Ensure clear communication with excellent noise cancellation in any environment.

What's in the box:

  • ATW-T3201 Body-Pack Transmitter
  • ATW-R3210N Receiver
  • BP894xcH Cardioid Headworn Microphone- 55 " Detachable Cable with Screw-Down 4-Pin Connector
  • Element Covers
  • 2x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapter
  • AT8631 Joining Plate
  • AT8440 Cable Clip
  • AT8464x Dual-Ear Adapter
  • AT8163 Windscreen
  • AT8171 Windscreen
  • Moisture Guard
  • Carrying Case
  • Audio-Technica 2 Year Limited Warranty
