Audio-Technica ATW-R3210N 3000 Series 4th Generation True Diversity Network Enabled Wireless Receiver, EE1: 530-590MHz

SKU: ATWR3210NEE1 MFR: ATW-R3210NEE1
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this network-enabled wireless receiver.
  • Enjoy true diversity wireless, minimizing dropouts for seamless performance.
  • This receiver operates on 530-590MHz for reliable wireless microphone connectivity.
  • Perfect for professional use, providing balanced XLR output for pristine sound.
  • Ensure clear audio with 60dB image rejection, reducing unwanted interference.
  • Operate confidently within a range of 41 to 113°F, ideal for varied environments.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-R3210N Specifications

  • Operating Frequencies

    Band EE1: 530 to 589.975 MHz

  • Receiving System

    True diversity

  • Image Rejection

    60dB nominal

  • RF Sensitivity

    20dBuV at 60dB S/N ratio

  • Maximum Output Level

    XLR. Balanced: +14dBV

  • Antenna Input

    BNC-Type, 50 Ohm
    Bias: 12VDC, 160mA total

  • Power Requirements

    12V, 1A

  • Operating Temperature Range

    41 to 113 Degree F (5 to 45 Degree C)

  • Dimensions

    8.26 x 1.70 x 7.51" (210 x 43.4 x 191mm)

  • Weight

    2.42 lb (1.1kg)

  • UPC Code

    042005206810

About Audio-Technica ATW-R3210N

With the Audio-Technica ATW-R3210N 3000 Series 4th Generation True Diversity Network Enabled Wireless Receiver, experience the pinnacle of wireless audio reception technology. This durable and high-quality receiver is part of the acclaimed 3000 Series, renowned for its advanced features and reliable performance. The ATW-R3210N is engineered to deliver rock-solid, richly detailed sound reproduction, making it an ideal choice for professionals in live performance or recording settings.

The innovative network-enabled design allows for seamless remote configuration, monitoring, and control via the Audio-Technica Wireless Manager software. This cutting-edge functionality ensures that users can fine-tune their audio setup with precision and ease. The receiver's network port is a testament to its advanced capabilities, providing a direct connection for these remote operations.

This receiver boasts a robust 60 MHz tuning bandwidth within the EE1 frequency range of 530-590 MHz, offering exceptional frequency agility and the flexibility to operate in congested UHF environments. The true diversity design ensures uninterrupted audio by automatically selecting the best signal from two independent receiver sections.

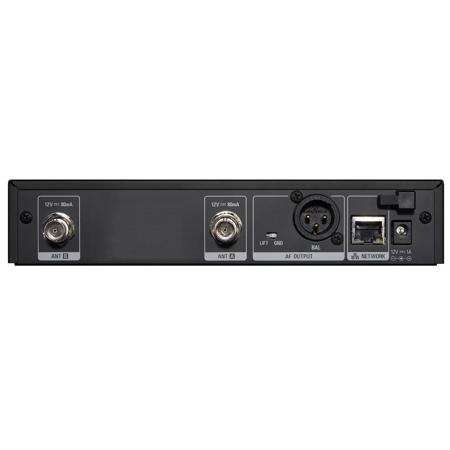

The ATW-R3210N does away with the traditional 1/4" audio output, focusing on a balanced XLR output to maintain the integrity of the audio signal. Additionally, each network-enabled system includes an AT8631 joining plate, further enhancing the unit's versatility and integration into existing setups.

Users will appreciate the ability to scan and select frequencies directly on the receiver, with the added convenience of IR sync to ensure seamless transmitter-receiver pairing. The system also features a backup frequency option, which can be activated with a simple press of the transmitter's multifunction button in case of interference.

Compatible with both the ATW-T3201 body-pack and ATW-T3202 handheld transmitters, the ATW-R3210N receiver is designed for flexibility. The ATW-T3201 transmitter features a secure cH-style screw-down 4-pin connector, while the ATW-T3202 offers interchangeable capsules, including dynamic and condenser options, with an industry-standard thread mount for compatibility with a wide range of microphones.

Constructed with rugged, metal housings, the transmitters are built to withstand the rigors of on-the-road use. They operate on two AA batteries and include charging terminals compatible with Audio-Technica's ATW-CHG3 and ATW-CHG3N charging docks (available separately) for convenient recharging of NiMH batteries.

In summary, the Audio-Technica ATW-R3210N 3000 Series 4th Generation True Diversity Network Enabled Wireless Receiver is a testament to innovation, offering professional-grade sound quality, extensive control features, and the reliability that comes with a trusted brand. Whether for live performances, broadcasts, or studio recordings, this receiver stands as a top-tier choice for audio professionals seeking the best in wireless technology.

Audio-Technica ATW-R3210N Features

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
  • Frequency band: EE1 (530-590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced audio output jack

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this network-enabled wireless receiver.
  • Enjoy true diversity wireless, minimizing dropouts for seamless performance.
  • This receiver operates on 530-590MHz for reliable wireless microphone connectivity.
  • Perfect for professional use, providing balanced XLR output for pristine sound.
  • Ensure clear audio with 60dB image rejection, reducing unwanted interference.
  • Operate confidently within a range of 41 to 113°F, ideal for varied environments.

What's in the box:

  • 3000 Series ATW-R3210N 4th Generation True Diversity Network Enabled Wireless Receiver
  • 2x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapter
  • AT8631 Joining Plate
  • Audio-Technica 2 Year Limited Warranty
