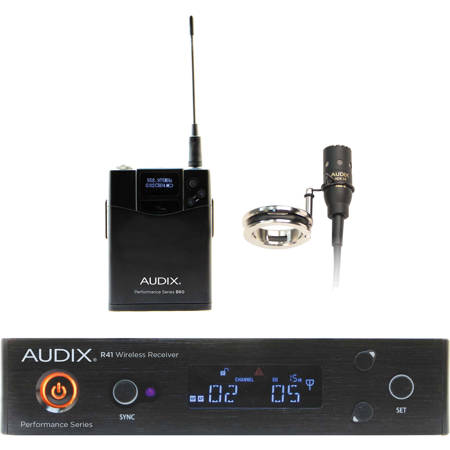

Audix Performance Series AP41 FLUTE-B Wireless System, Includes R41 Receiver, B60 Body Pack Transmitter, ADX10FLP Condenser Flute Microphone, Band B: 554-586MHz

SKU: AUAP41FLUTEB MFR: AP41FLUTEB
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system for captivating flute performances.
  • Achieve stellar sound quality with the ADX10FLP condenser flute microphone; natural, clear audio.
  • Enjoy a reliable wireless range up to 300 feet, perfect for stage performances and recording sessions.
  • The B60 bodypack transmitter offers approximately 10 hours of battery life for extended use.
  • Easy to use system with 106 preset frequencies, ensuring quick setup and interference-free operation.
  • Durable Audix system includes a robust R41 receiver and a 3-year warranty for peace of mind.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41 FLUTE-B Specifications

  • R41 Receiver: Frequency Range

    554 MHz - 586 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • ADX10FLP Microphone: Transducer Type

    Pre-Polarized Condenser

  • ADX10FLP Microphone: Frequency Response

    50 Hz - 18 kHz

  • ADX10FLP Microphone: Polar Pattern

    Cardioid

  • ADX10FLP Microphone: Output Impedance

    250 Ohms

  • ADX10FLP Microphone: Sensitivity

    4.5 mV / Pa at 1k

  • ADX10FLP Mic: Equivalent Noise Level

    <29 dB (A-weighted)

  • ADX10FLP Mic: Signal to Noise Ratio

    >65 dB

  • ADX10FLP Microphone: Maximum SPL

    =120 dB

  • ADX10FLP Microphone: Power Requirements

    5-52 V phantom

  • ADX10FLP Microphone: Connector

    Shielded 3' terminating to a miniature 3 pin XLRf

  • ADX10FLP Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • ADX10FLP Microphone: Materials / Finish

    Machined Brass Capsule / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    ADX10FLP Microphone (Length): 25mm / 0.98"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    ADX10FLP Microphone: 110g / 3.88oz

  • UPC Code

    00687471731055

About Audix AP41 FLUTE-B

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.

Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.

R41 Receivers
• 32 MHz Extended spectrum receiver
• Microprocessor-controlled antenna diversity
• 8 compatible system operation
• 106 pre-coordinated frequencies for quick, easy and reliable set up
• 300' (91 Meters) operating range
• Metal rack mountable chassis
• RF and AF indicators
• High contrast LCD display
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Choice of balanced XLR or 1/4" outputs
• Soft keys control output levels, squelch, pilot, lockout
• Wide selection of handheld, instrument, headset and lavalier options

Bodypack B60 Transmitters
The Audix Performance Series body pack system is very contemporary in design, rugged, comfortable to wear and easy to use.

• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Precision metal housing
• Lightweight, slim design
• Modular antenna design
• May be used with lavalier, head worn and instrument mics as well as electric guitar and bass
• AF and RF gain control
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries

ADX10FLP Condenser Instrument Microphone
The ADX10FLP is characterized with a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz - 18 kHz, the ADX10FLP is lightweight, low profile and will provide natural sound with exceptional transient response. The ADX10FLP, specifically for use with a standard flute, includes a clip that attaches to the headstock of a flute, an 8f ½ cable terminating to a mini XLR-f connector and a phantom power adapter (APS911). Other model versions include the ADX10FL for use with the Audix RAD360 wireless system. Manufactured to high standards and tight tolerances, the ADX10FLP features a modular threaded capsule, machined brass body with matte black finish, high quality shielded microphone cable and a variety of optional accessories.

• Miniature condenser flute microphone
• Natural, accurate sound reproduction
• May be used wired or with RAD360 Wireless System
• Designed, assembled & tested in the USA

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system for captivating flute performances.
  • Achieve stellar sound quality with the ADX10FLP condenser flute microphone; natural, clear audio.
  • Enjoy a reliable wireless range up to 300 feet, perfect for stage performances and recording sessions.
  • The B60 bodypack transmitter offers approximately 10 hours of battery life for extended use.
  • Easy to use system with 106 preset frequencies, ensuring quick setup and interference-free operation.
  • Durable Audix system includes a robust R41 receiver and a 3-year warranty for peace of mind.

What's in the box:

  • Audix R41 Receiver
  • B60 Body Pack Transmitter
  • ADX10FLP Condenser Flute Microphone
  • Audix 3 Year Limited Warranty
