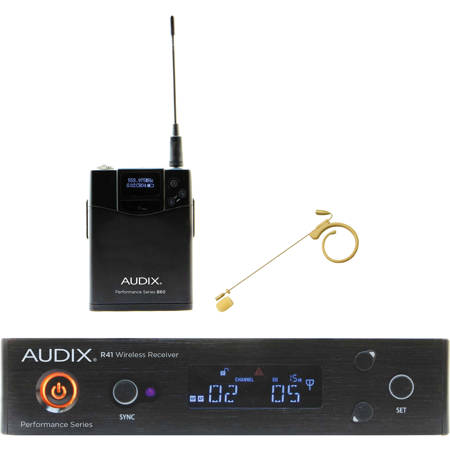

Audix Performance Series AP41 HT7BG-A Wireless System, Includes R41 Receiver, B60 Body Pack Transmitter, HT7 Headset Microphone, Band A: 522-554MHz, Beige

SKU: AUAP41HT7BGA

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audix AP41 HT7BG-A Specifications

  • R41 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • HT7 Microphone: Transducer Type

    Pre-Polarized Condenser

  • HT7 Microphone: Frequency Response

    20 Hz - 20 kHz

  • HT7 Microphone: Polar Pattern

    Omni-directional

  • HT7 Microphone: Output Impedance

    1000 Ohms

  • HT7 Microphone: Sensitivity

    17 mV / Pa at 1k

  • HT7 Microphone: Maximum SPL

    =135 dB

  • HT7 Microphone: Power Requirements

    5-48V DC

  • HT7 Microphone: Connector

    3-pin XLRf, 4-pin XLRf, 2.5 mm connector

  • HT7 Microphone: Materials / Finish

    Flexible steel alloy / Black / Beige

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    HT7 Microphone: 120mm / 4.72"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    HT7 Microphone: 7g / 0.25oz

About Audix AP41 HT7BG-A

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.

Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.

R41 Receivers
• 32 MHz Extended spectrum receiver
• Microprocessor-controlled antenna diversity
• 8 compatible system operation
• 106 pre-coordinated frequencies for quick, easy and reliable set up
• 300' (91 Meters) operating range
• Metal rack mountable chassis
• RF and AF indicators
• High contrast LCD display
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Choice of balanced XLR or 1/4" outputs
• Soft keys control output levels, squelch, pilot, lockout
• Wide selection of handheld, instrument, headset and lavalier options

Bodypack B60 Transmitters
The Audix Performance Series body pack system is very contemporary in design, rugged, comfortable to wear and easy to use.

• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Precision metal housing
• Lightweight, slim design
• Modular antenna design
• May be used with lavalier, head worn and instrument mics as well as electric guitar and bass
• AF and RF gain control
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries

HT7 Condenser Headworn Microphone
The HT7 is a professional single ear headworn condenser microphone designed for stage, presentation and broadcast applications. The professional-grade omnidirectional HT7 features a comfortable ear piece that can be worn around either the left or right ear and a durable and adjustable length boom arm. The HT7 may be used wireless or wired with optional phantom power adapter. Engineered for use wireless body pack systems such as the Audix RAD360, the HT7 can be used with other brands of wireless body packs. A selection of adapters is available depending on the input connectors of the body pack. Designed to blend with the skin tone of the wearer, the HT7 is available in two colors-beige and black.

• Can be worn on either the left or right side
• Durable and adjustable length boom arm for easy placement and positioning
• Modular design allows for field replaceable parts when necessary
• Can be used wireless or wired with optional phantom power adapter
• Available in beige and black

Product Documents

User Manual

What's in the box:

  • Audix R41 Receiver
  • B60 Body Pack Transmitter
  • HT7 Headset Microphone
  • Audix 3 Year Limited Warranty
