17% Off

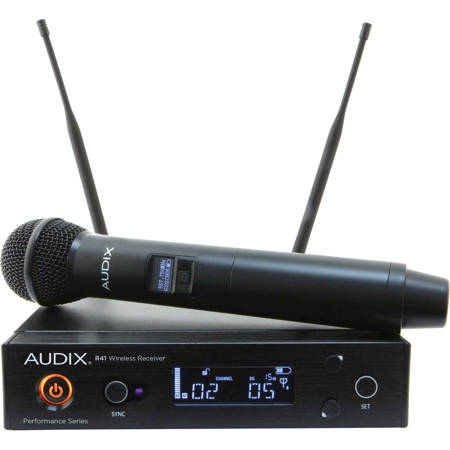

Audix Performance Series AP41 OM2-B Wireless System, Includes R41 Receiver, H60 Handheld Transmitter, OM2 Dynamic Microphone, Band B: 554-586MHz

SKU: AUAP41OM2B MFR: AP41OM2B
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Achieve freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • Enjoy up to 10 hours of battery life with the H60 transmitter, ensuring uninterrupted use.
  • This handheld wireless microphone system is easy to set up, making it ideal for beginners.
  • The Audix OM2 dynamic microphone delivers exceptional sound quality and durability for any venue.
  • Operate up to 8 compatible systems simultaneously, great for bands needing multiple wireless mics.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41 OM2-B Specifications

  • R41 Receiver: Frequency Range

    554 MHz - 586 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    OM2 Microphone: 307g / 10.83oz

  • UPC Code

    687471701034

About Audix AP41 OM2-B

Discover the Audix Performance Series AP41 OM2-B Wireless System, a professional-grade audio solution designed for vocalists, musicians, performers, and presenters. This advanced system is engineered to simplify wireless audio, offering a reliable and versatile platform for live performances.

The system includes the R41 Receiver, a device that boasts a 32 MHz extended spectrum and microprocessor-controlled antenna diversity. With 106 pre-coordinated frequencies, this receiver ensures quick, easy, and reliable setup, offering an impressive operating range of 300' (91 meters). Its high-contrast LCD display, one-touch auto scan for clear channels, and one-touch sync linking the transmitter to the receiver via infrared beam, make it a user-friendly choice for professionals.

The package also includes the H60 Handheld Transmitter, a compact and well-balanced device housed in durable metal. This 64 MHz wide spectrum transmitter is compatible with all Performance Series receivers and can be used with both dynamic (OM Series) and condenser microphones (VX5). Its high-contrast LCD display provides essential information including group, channel, and battery indicator, while its soft mute switch and 10-hour run time on AA batteries ensure uninterrupted performance.

The OM2 Dynamic Vocal Microphone, included in the system, is a versatile tool for both live and studio applications. Designed, assembled, and tested by Audix in the USA, this microphone offers clear and accurate sound reproduction, resistance to feedback, and the ability to handle very high Sound Pressure Levels (SPL) without distortion. Its hypercardioid polar pattern isolates vocals from other instruments on stage, providing excellent isolation for outstanding feedback rejection.

Constructed with a precision die-cast zinc alloy body, a durable black E-coat finish, and a dent-resistant steel mesh grill, the OM2 is both durable and aesthetically pleasing. Its gold-plated XLR connector ensures optimal signal transmission, making the Audix Performance Series AP41 OM2-B Wireless System a high-quality, reliable choice for all your professional audio needs.

Audix AP41 OM2-B Features

  • Professional-grade Audix Performance Series AP41 OM2-B Wireless System for live performances and studio applications
  • Includes R41 Receiver with 32 MHz extended spectrum and 106 pre-coordinated frequencies for easy setup
  • Compact, durable H60 Handheld Transmitter with 64 MHz wide spectrum and 10-hour battery life
  • OM2 Dynamic Vocal Microphone with clear sound reproduction & high SPL handling without distortion
  • Hypercardioid polar pattern in OM2 microphone for excellent isolation and feedback rejection
  • Robust construction with precision die-cast zinc alloy body, black E-coat finish, and dent-resistant steel mesh grill

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Achieve freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • Enjoy up to 10 hours of battery life with the H60 transmitter, ensuring uninterrupted use.
  • This handheld wireless microphone system is easy to set up, making it ideal for beginners.
  • The Audix OM2 dynamic microphone delivers exceptional sound quality and durability for any venue.
  • Operate up to 8 compatible systems simultaneously, great for bands needing multiple wireless mics.

What's in the box:

  • Audix R41 Receiver
  • H60 Handheld Transmitter
  • OM2 Dynamic Microphone
  • Audix 3 Year Limited Warranty
