17% Off

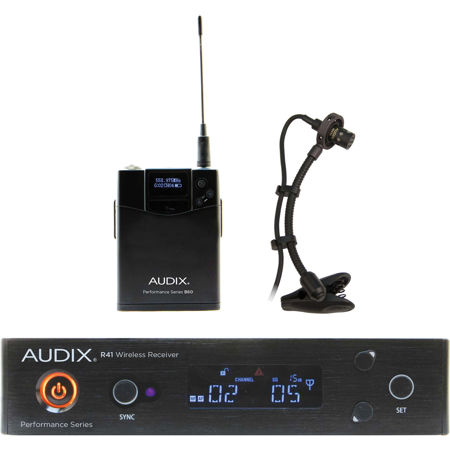

Audix Performance Series AP41 SAX-A Wireless System, Includes R41 Receiver, B60 Body Pack Transmitter, ADX20I Clip-On Cardioid Condenser Saxophone Microphone, Band A: 522-554MHz

SKU: AUAP41SAXA MFR: AP41SAXA
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system for saxophone performances.
  • Achieve crystal-clear sound quality with the ADX20i condenser microphone, tailored for sax.
  • Enjoy reliable wireless range up to 300 feet, perfect for stage or studio use.
  • The B60 bodypack transmitter offers approximately 10 hours of battery life for long gigs.
  • Simple setup with 106 preset frequencies ensures ease of use for any musician.
  • Durable Audix construction guarantees this wireless system will withstand rigorous touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41 SAX-A Specifications

  • R41 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • ADX20i Microphone: Transducer Type

    Pre-Polarized Condenser

  • ADX20i Microphone: Frequency Response

    40 Hz - 20 kHz

  • ADX20i Microphone: Polar Pattern

    Cardioid

  • ADX20i Microphone: Output Impedance

    250 Ohms

  • ADX20i Microphone: Sensitivity

    Cardioid - 6 mV / Pa at 1k
    Hypercardioid - 5.6 mV / Pa at 1k

  • ADX20i Mic: Equivalent Noise Level

    <29 dB (A-weighted)

  • ADX20i Microphone: Signal to Noise Ratio

    >65 dB

  • ADX20i Microphone: Maximum SPL

    =135 dB

  • ADX20i Microphone: Power Requirements

    9-52 V phantom

  • ADX20i Microphone: Connector

    Shielded 6' terminating to a miniature 3 pin XLRf

  • ADX20i Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • ADX20i Microphone: Materials / Finish

    Machined Brass Capsule / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    ADX20i Microphone (Length): 29mm / 1.14"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    ADX20i Microphone: 48g / 1.69oz

  • UPC Code

    687471731017

About Audix AP41 SAX-A

If you're a vocalist, musician, performer, or presenter seeking a high-quality, professional-grade wireless system, the Audix Performance Series AP41 SAX-A Wireless System is your ideal solution. This innovative system is designed to simplify the complexities of wireless technology, offering a reliable and versatile solution for live performances.

The system includes the R41 Receiver, a microprocessor-controlled device with a 32 MHz extended spectrum and antenna diversity. It supports up to 8 compatible systems and offers 106 pre-coordinated frequencies for quick, easy, and reliable setup. The receiver has a robust metal rack-mountable chassis and features a high-contrast LCD display, RF and AF indicators, and one-touch auto scan and sync functions. It also offers a choice of balanced XLR or 1/4" outputs, and soft keys for controlling output levels, squelch, pilot, and lockout.

The B60 Body Pack Transmitter, part of the Audix Performance Series, is a 64 MHz wide spectrum transmitter that is compatible with all Performance Series receivers. Its precision metal housing is lightweight and slim, making it comfortable to wear and easy to use. The transmitter features a modular antenna design and can be used with lavalier, head worn, and instrument mics, as well as electric guitar and bass. It also has AF and RF gain control, a high contrast LCD display with group, channel, and battery indicator, and a soft mute switch.

The ADX20I Clip-On Cardioid Condenser Saxophone Microphone, designed, assembled, and tested by Audix in the USA, is a miniaturized condenser microphone known for its clarity, excellent transient response, resistance to feedback, and SPL handling. Primarily used for miking saxophone and other brass instruments, the ADX20i offers natural sound reproduction at very close distances and excellent isolation and feedback control on stage. It features a uniformly controlled cardioid polar pattern and a rubber shock mount system that reduces vibration.

The Audix Performance Series AP41 SAX-A Wireless System operates within a wide frequency range of 522-554 MHz, ensuring compatibility with other wireless systems and devices. This durable and versatile system is perfect for live performances, allowing performers to move freely without the constraints of wired microphones.

Audix AP41 SAX-A Features

  • High-quality, professional-grade wireless system designed for vocalists, musicians, performers, and presenters
  • Includes R41 Receiver with 32 MHz extended spectrum, antenna diversity, and high-contrast LCD display
  • B60 Body Pack Transmitter features 64 MHz wide spectrum, modular antenna design, and high contrast LCD display
  • ADX20I Clip-On Cardioid Condenser Saxophone Microphone offers excellent sound clarity and resistance to feedback
  • Operates within a wide frequency range of 522-554 MHz for enhanced compatibility
  • Ideal for live performances, providing performers with the freedom to move without wired constraints

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system for saxophone performances.
  • Achieve crystal-clear sound quality with the ADX20i condenser microphone, tailored for sax.
  • Enjoy reliable wireless range up to 300 feet, perfect for stage or studio use.
  • The B60 bodypack transmitter offers approximately 10 hours of battery life for long gigs.
  • Simple setup with 106 preset frequencies ensures ease of use for any musician.
  • Durable Audix construction guarantees this wireless system will withstand rigorous touring.

What's in the box:

  • Audix R41 Receiver
  • B60 Body Pack Transmitter
  • ADX20I Clip-On Cardioid Condenser Saxophone Microphone
  • Audix 3 Year Limited Warranty
