17% Off

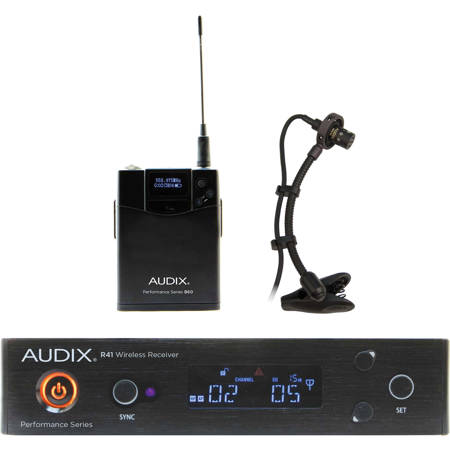

Audix Performance Series AP41 SAX-B Wireless System, Includes R41 Receiver, B60 Body Pack Transmitter, ADX20I Clip-On Cardioid Condenser Saxophone Microphone, Band B: 554-586MHz

SKU: AUAP41SAXB MFR: AP41SAXB
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system for saxophones.
  • Achieve stellar sound quality with the ADX20I clip-on cardioid condenser microphone.
  • Enjoy a wide 300' wireless range, perfect for dynamic stage performances.
  • The B60 bodypack transmitter provides up to 10 hours of battery life.
  • Easily set up with 106 preset frequencies on the R41 receiver for quick use.
  • Durable design ensures reliable performance for countless gigs and rehearsals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41 SAX-B Specifications

  • R41 Receiver: Frequency Range

    554 MHz - 586 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • ADX20i Microphone: Transducer Type

    Pre-Polarized Condenser

  • ADX20i Microphone: Frequency Response

    40 Hz - 20 kHz

  • ADX20i Microphone: Polar Pattern

    Cardioid

  • ADX20i Microphone: Output Impedance

    250 Ohms

  • ADX20i Microphone: Sensitivity

    Cardioid - 6 mV / Pa at 1k
    Hypercardioid - 5.6 mV / Pa at 1k

  • ADX20i Mic: Equivalent Noise Level

    <29 dB (A-weighted)

  • ADX20i Microphone: Signal to Noise Ratio

    >65 dB

  • ADX20i Microphone: Maximum SPL

    =135 dB

  • ADX20i Microphone: Power Requirements

    9-52 V phantom

  • ADX20i Microphone: Connector

    Shielded 6' terminating to a miniature 3 pin XLRf

  • ADX20i Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • ADX20i Microphone: Materials / Finish

    Machined Brass Capsule / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    ADX20i Microphone (Length): 29mm / 1.14"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    ADX20i Microphone: 48g / 1.69oz

About Audix AP41 SAX-B

Bring your live performances to life with the Audix Performance Series AP41 SAX-B Wireless System. This high-quality, professional-grade system is designed for vocalists, musicians, performers, and presenters who demand reliability, versatility, and simplicity in their audio equipment.

The system includes the R41 Receiver, a robust and intuitive device with a modern design. It boasts a 32 MHz extended spectrum receiver and microprocessor-controlled antenna diversity. With 8 compatible system operations and 106 pre-coordinated frequencies, setting up is quick and effortless. The receiver's operating range extends up to 300' (91 meters), and it features a high-contrast LCD display, RF and AF indicators, and one-touch auto scan for clear channel searching. The R41 Receiver also offers a choice of balanced XLR or 1/4" outputs and soft keys control for output levels, squelch, pilot, and lockout.

The B60 Body Pack Transmitter, part of the Audix Performance Series, is designed with a sleek, lightweight, and durable metal housing. It's a 64 MHz wide spectrum transmitter that's compatible with all Performance Series receivers. The high-contrast LCD display provides clear visibility of group, channel, and battery indicators. The transmitter also features an AF and RF gain control and a soft mute switch.

The system is completed with the ADX20I Clip-On Cardioid Condenser Saxophone Microphone, a miniaturized condenser microphone known for its clarity, excellent transient response, resistance to feedback, and SPL handling. Primarily used for miking saxophones and other brass instruments, the ADX20I delivers natural, accurate sound reproduction and excellent isolation and feedback control on stage. The microphone is housed in an aluminum ring and isolated by a rubber shock mount system to reduce vibration.

The Audix Performance Series AP41 SAX-B Wireless System operates on an analog frequency range of 554-586 MHz, offering broad compatibility with other wireless systems and devices. Whether you're performing on stage or presenting in a conference room, this innovative, reliable, and durable wireless system ensures your sound is heard clearly and accurately.

Audix AP41 SAX-B Features

  • Professional-grade wireless system for live performances and presentations
  • R41 Receiver with 32 MHz spectrum and intuitive one-touch functions
  • B60 Body Pack Transmitter with 64 MHz range and high-contrast LCD display
  • ADX20I Clip-On Cardioid Condenser Microphone for natural brass instrument sound
  • Durable and reliable with a 300' (91 meters) operating range and extended battery life
  • Operates on 554-586 MHz frequency for versatile compatibility with other devices

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system for saxophones.
  • Achieve stellar sound quality with the ADX20I clip-on cardioid condenser microphone.
  • Enjoy a wide 300' wireless range, perfect for dynamic stage performances.
  • The B60 bodypack transmitter provides up to 10 hours of battery life.
  • Easily set up with 106 preset frequencies on the R41 receiver for quick use.
  • Durable design ensures reliable performance for countless gigs and rehearsals.

What's in the box:

  • Audix R41 Receiver
  • B60 Body Pack Transmitter
  • ADX20I Clip-On Cardioid Condenser Saxophone Microphone
  • Audix 3 Year Limited Warranty
