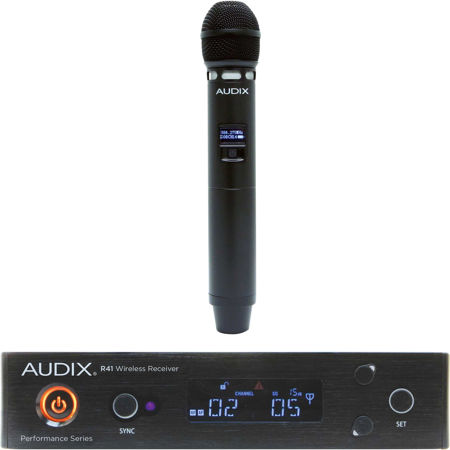

Audix Performance Series AP41/ VX5-A Wireless System, Includes R41 Receiver, H60 Handheld Transmitter, VX5 Condenser Microphone, Band A: 522-554MHz

SKU: AUAP41VX5A MFR: AP41VX5A
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range up to 300 feet!
  • The VX5 condenser microphone captures every nuance with exceptional sound quality.
  • This handheld wireless microphone system offers up to 10 hours of battery life for long events.
  • Easily set up and use this wireless system with 106 preset frequencies, ready to perform!
  • Built for durability, this Audix wireless microphone system ensures reliable performance show after show.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41/ VX5-A Specifications

  • R41 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • VX5 Microphone: Transducer Type

    Pre-Polarized Condenser

  • VX5 Microphone: Frequency Response

    40 Hz - 16.5 kHz

  • VX5 Microphone: Polar Pattern

    Supercardioid

  • VX5 Microphone: Output Impedance

    150 Ohms

  • VX5 Microphone: Sensitivity

    5 mV / Pa at 1k

  • VX5 Microphone: Equivalent Noise Level

    26 dB (A-weighted)

  • VX5 Microphone: Off Axis Rejection

    >20 dB

  • VX5 Microphone: Maximum SPL

    =140 dB (w/ -10 pad)

  • VX5 Microphone: Power Requirements

    9-52 V

  • VX5 Microphone: Connector

    3-pin XLRm

  • VX5 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • VX5 Microphone: Materials / Finish

    Zinc Alloy & Machined Brass / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    VX5 Microphone (Length): 181mm / 7.13"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    VX5 Microphone: 277g / 9.77oz

About Audix AP41/ VX5-A

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.

Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.

R41 Receivers
• 32 MHz Extended spectrum receiver
• Microprocessor-controlled antenna diversity
• 8 compatible system operation
• 106 pre-coordinated frequencies for quick, easy and reliable set up
• 300' (91 Meters) operating range
• Metal rack mountable chassis
• RF and AF indicators
• High contrast LCD display
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Choice of balanced XLR or 1/4" outputs
• Soft keys control output levels, squelch, pilot, lockout
• Wide selection of handheld, instrument, headset and lavalier options

Handheld H60 Transmitters
The H60 features an elegantly designed slim line body that is compact, well-balanced and comfortable to hold.

• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Durable metal housing
• May be used with dynamic (OM Series) and condenser microphones (VX5)
• AF and RF gain control
• Modular and interchangeable capsule assemblies
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries

VX5 Condenser Vocal Microphone
The VX5 is a professional vocal condenser microphone designed for a wide variety of live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 is known for its smooth and accurate frequency response, resistance to feedback and ability to handle very high sound pressure levels without distortion. The VX5 is characterized with a tight and uniformly controlled supercardioid polar pattern which helps to isolate the vocals from the rest of the instruments on stage. With a wide frequency range of 40 Hz - 16.5 kHz, the VX5 has a very clean and natural sound with exceptional transient response. This mic requires 9 - 52 volts phantom power.

• Premium electret condenser for vocals and acoustic instruments
• Smooth accurate frequency response
• Switches for -10 dB pad and bass roll-off
• Suited for acoustic music as well as loud stages
• Designed, assembled & tested in the USA

Other features include a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with multi-stage pop filter and a -10 dB pad and bass roll-off filter. The VX5 will handle sound pressure levels in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages. In addition to vocal applications, the VX5 is ideally suited to capture acoustic instruments such as guitar, woodwinds, brass, percussion toys, drum overheads, hi-hat and piano. It is a very versitile mic for home studio recording. The VX5 is well balanced, comfortable to hold, durable and designed with very high standards and tight tolerances. The VX5 is manufactured with a precision die cast zinc alloy body, durable black E-coat finish and gold plated XLR connector.

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable wireless range up to 300 feet!
  • The VX5 condenser microphone captures every nuance with exceptional sound quality.
  • This handheld wireless microphone system offers up to 10 hours of battery life for long events.
  • Easily set up and use this wireless system with 106 preset frequencies, ready to perform!
  • Built for durability, this Audix wireless microphone system ensures reliable performance show after show.

What's in the box:

  • Audix R41 Receiver
  • H60 Handheld Transmitter
  • VX5 Condenser Microphone
  • Audix 3 Year Limited Warranty
