17% Off

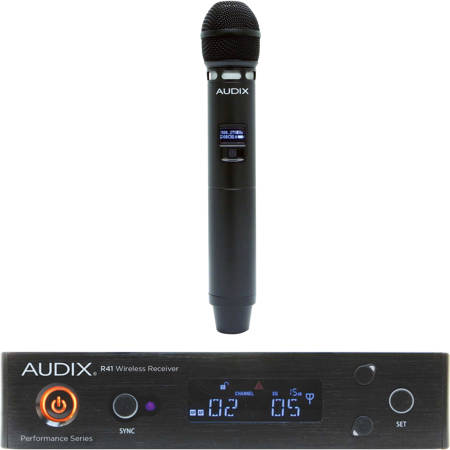

Audix Performance Series AP41/ VX5-B Wireless System, Includes R41 Receiver, H60 Handheld Transmitter, VX5 Condenser Microphone, Band B: 554-586MHz

SKU: AUAP41VX5B MFR: AP41VX5B
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Achieve superior sound quality with the VX5 condenser microphone, ideal for professional performances.
  • Enjoy freedom of movement with a 300' wireless range, great for dynamic stage presentations.
  • The handheld transmitter offers up to 10 hours of battery life, ensuring long-lasting reliability.
  • Easily switch between 106 preset frequencies to avoid interference and maintain signal strength.
  • Rugged build quality ensures this wireless microphone system withstands the rigors of touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41/ VX5-B Specifications

  • R41 Receiver: Frequency Range

    554 MHz - 586 MHz

  • R41 Receiver: Bandwidth

    32 MHz

  • R41 Receiver: Compatible Systems

    8 Compatible System Operation

  • R41 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R41 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R41 Receiver: Signal to Noise Ratio

    >105 dB

  • R41 Receiver: Compander System

    2:1

  • R41 Receiver: Pilot Tone

    32 kHz

  • R41 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R41 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R41 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R41 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R41 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R41 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R41 Receiver: Output Connectors

    1/4", XLR

  • R41 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R41 Receiver: Adjacent Channel Rejection

    >65 dB

  • R41 Receiver: Intermodulation Spacing

    >65 dB

  • R41 Receiver: Image Rejection

    >70 dB

  • R41 Receiver: Range

    300' / 91.44m

  • R41 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • VX5 Microphone: Transducer Type

    Pre-Polarized Condenser

  • VX5 Microphone: Frequency Response

    40 Hz - 16.5 kHz

  • VX5 Microphone: Polar Pattern

    Supercardioid

  • VX5 Microphone: Output Impedance

    150 Ohms

  • VX5 Microphone: Sensitivity

    5 mV / Pa at 1k

  • VX5 Microphone: Equivalent Noise Level

    26 dB (A-weighted)

  • VX5 Microphone: Off Axis Rejection

    >20 dB

  • VX5 Microphone: Maximum SPL

    =140 dB (w/ -10 pad)

  • VX5 Microphone: Power Requirements

    9-52 V

  • VX5 Microphone: Connector

    3-pin XLRm

  • VX5 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • VX5 Microphone: Materials / Finish

    Zinc Alloy & Machined Brass / Black Finish

  • Dimensions

    R41 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    VX5 Microphone (Length): 181mm / 7.13"

  • Weight

    R41 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    VX5 Microphone: 277g / 9.77oz

  • UPC Code

    00687471701058

About Audix AP41/ VX5-B

Are you a vocalist, musician, performer, or presenter seeking a professional-grade wireless system that combines simplicity, reliability, and versatility Look no further than the Audix Performance Series AP41/ VX5-B Wireless System. This system is meticulously designed to demystify wireless technology, featuring a robust R41 receiver, a sleek H60 handheld transmitter, and a VX5 condenser microphone, all operating within Band B: 554-586MHz.

The R41 receiver, a key component of this system, boasts a modern design and rugged construction. It offers a 32 MHz extended spectrum and microprocessor-controlled antenna diversity, ensuring optimal signal reception. With 8 compatible system operations and 106 pre-coordinated frequencies, setup is quick, easy, and reliable. The receiver also features a high-contrast LCD display, one-touch auto scan for clear channel search, and one-touch sync linking the transmitter to the receiver via infrared beam.

The H60 handheld transmitter, encased in durable metal housing, is a marvel of design and functionality. It's compact, well-balanced, and comfortable to hold, making it perfect for extended use. The transmitter is compatible with both dynamic (OM Series) and condenser microphones (VX5), and features AF and RF gain control, modular and interchangeable capsule assemblies, and a high-contrast LCD display with group, channel, and battery indicators.

The VX5 Condenser Vocal Microphone, designed for a wide variety of live, studio, and broadcast applications, is known for its smooth and accurate frequency response, resistance to feedback, and ability to handle high sound pressure levels without distortion. It features a tight and uniformly controlled supercardioid polar pattern, isolating vocals from other instruments on stage. With a wide frequency range of 40 Hz - 16.5 kHz, the VX5 delivers clean and natural sound with exceptional transient response.

The VX5 microphone is also versatile, suitable for capturing acoustic instruments such as guitar, woodwinds, brass, percussion toys, drum overheads, hi-hat, and piano. It's perfect for home studio recording, designed with high standards and tight tolerances. The microphone is manufactured with a precision die-cast zinc alloy body, durable black E-coat finish, and gold-plated XLR connector, ensuring longevity and performance.

In summary, the Audix Performance Series AP41/ VX5-B Wireless System is a comprehensive solution for all your wireless audio needs, offering unparalleled performance, ease of use, and versatility.

Audix AP41/ VX5-B Features

  • Professional-grade wireless system from the Audix Performance Series, perfect for vocalists, musicians, performers, and presenters
  • R41 receiver with a 32 MHz extended spectrum, microprocessor-controlled antenna diversity, and 106 pre-coordinated frequencies for reliable setup
  • H60 handheld transmitter, compact and well-balanced, featuring a durable metal housing and high-contrast LCD display
  • VX5 Condenser Vocal Microphone with smooth and accurate frequency response, ideal for live, studio, and broadcast applications
  • Supercardioid polar pattern microphone, perfect for isolating vocals and capturing a variety of acoustic instruments
  • High-quality construction with a precision die-cast zinc alloy body, durable black E-coat finish, and gold-plated XLR connector

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live vocals.
  • Achieve superior sound quality with the VX5 condenser microphone, ideal for professional performances.
  • Enjoy freedom of movement with a 300' wireless range, great for dynamic stage presentations.
  • The handheld transmitter offers up to 10 hours of battery life, ensuring long-lasting reliability.
  • Easily switch between 106 preset frequencies to avoid interference and maintain signal strength.
  • Rugged build quality ensures this wireless microphone system withstands the rigors of touring.

What's in the box:

  • Audix R41 Receiver
  • H60 Handheld Transmitter
  • VX5 Condenser Microphone
  • Audix 3 Year Limited Warranty
