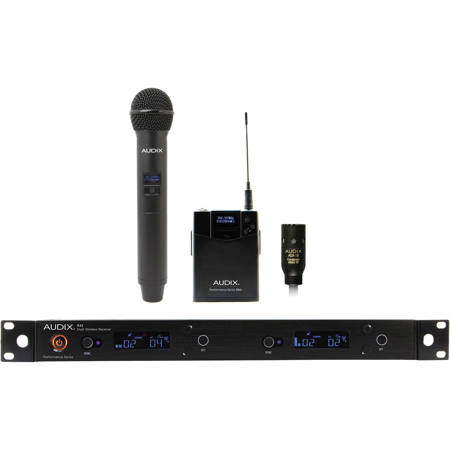

Audix Performance Series AP42 C210-A Wireless System, Includes R42 Receiver, OM2 Handheld Dynamic Microphone, B60 Body Pack Transmitter, ADX10 Lavalier Condenser Microphone, Band A: 522-554MHz

SKU: AUAP42C210A MFR: AP42C210A
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Achieve vocal clarity with the included OM2 handheld dynamic microphone's hypercardioid pattern.
  • Enjoy freedom of movement with a robust wireless range, ideal for dynamic performances.
  • The ADX10 lavalier condenser microphone delivers exceptional sound for interviews and film.
  • Get up to 10 hours of battery life with the B60 bodypack transmitter for uninterrupted use.
  • Easily integrate this wireless system with XLR and 1/4" outputs on the R42 receiver.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP42 C210-A Specifications

  • R42 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R42 Receiver: Bandwidth

    32 MHz

  • R42 Receiver: Compatible Systems

    8 Compatible System Operation

  • R42 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R42 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R42 Receiver: Signal to Noise Ratio

    >105 dB

  • R42 Receiver: Compander System

    2:1

  • R42 Receiver: Pilot Tone

    32 kHz

  • R42 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R42 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R42 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R42 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R42 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R42 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R42 Receiver: Output Connectors

    1/4", XLR

  • R42 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R42 Receiver: Adjacent Channel Rejection

    >65 dB

  • R42 Receiver: Intermodulation Spacing

    >65 dB

  • R42 Receiver: Image Rejection

    >70 dB

  • R42 Receiver: Range

    300' / 91.44m

  • R42 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • ADX10 Microphone: Transducer Type

    Pre-Polarized Condenser

  • ADX10 Microphone: Frequency Response

    50 Hz - 18 kHz

  • ADX10 Microphone: Polar Pattern

    Cardioid

  • ADX10 Microphone: Output Impedance

    800 Ohms

  • ADX10 Microphone: Sensitivity

    5 mV / Pa at 1k

  • ADX10 Mic: Equivalent Noise Level

    <29 dB (A-weighted)

  • ADX10 Microphone: Signal to Noise Ratio

    >65 dB

  • ADX10 Microphone: Maximum SPL

    =120 dB

  • ADX10 Microphone: Power Requirements

    9-52 V phantom

  • ADX10 Microphone: Connector

    Shielded 3' terminating to a miniature 3 pin Female XLR connector

  • ADX10 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • ADX10 Microphone: Materials / Finish

    Machined Brass / Black Finish

  • Dimensions

    R42 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    ADX10 Microphone (Length): 25mm / 0.98"
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R42 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    ADX10 Microphone: 21g / 0.74oz
    OM2 Microphone: 307g / 10.83oz

About Audix AP42 C210-A

Let the Audix Performance Series AP42 C210-A Wireless System elevate your live performances with its high-quality, professional-grade audio equipment. Designed for vocalists, musicians, performers, and presenters, this advanced wireless system is not only reliable and versatile but also user-friendly, taking the complexity out of wireless audio setup.

The system includes the R42 Receiver, a dual-channel system housed in a durable, rack-mountable unit. Operating with a single set of antennas and one power supply, this receiver boasts a contemporary design and rugged construction, ensuring longevity and consistent performance.

The B60 Body Pack Transmitter, part of the Audix Performance Series, is a testament to innovative design and durability. Its slim, lightweight design makes it comfortable to wear and easy to use, while the precision metal housing ensures its robustness. With a 64 MHz wide spectrum transmitter, it's compatible with all Performance Series receivers. Its high-contrast LCD display provides clear visibility of group, channel, and battery indicators, and it offers a 10-hour run time on AA batteries.

The OM2 Handheld Dynamic Microphone, designed, assembled, and tested by Audix in the USA, is an all-purpose professional vocal mic ideal for live sound, rehearsal rooms, and home studios. It provides clear and accurate sound reproduction, resistance to feedback, and the ability to handle very high SPL (Sound Pressure Levels) without distortion. Its tight and uniformly controlled hypercardioid polar pattern helps isolate vocals from other instruments on stage, ensuring your voice cuts through the mix.

The ADX10 Lavalier Condenser Microphone is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. Known for its clarity, resistance to feedback, and ease of operation, the ADX10 accurately captures and reproduces vocals from a comfortable distance of 4"-8". Its small, lightweight, low-profile design makes it easy to use and set up, and it's available for both wireless and wired applications.

The Audix Performance Series AP42 C210-A Wireless System operates on the analog frequency range of 522-554 MHz, making it compatible with most professional wireless microphone systems. This complete wireless system is a versatile and convenient option for a variety of applications, offering a comprehensive solution for capturing clear, high-quality audio from performers on stage.

Audix AP42 C210-A Features

  • High-quality, professional-grade wireless system, ideal for vocalists, musicians, performers, and presenters
  • Includes R42 Receiver, OM2 Handheld Dynamic Microphone, B60 Body Pack Transmitter, and ADX10 Lavalier Condenser Microphone
  • Operates on the analog frequency range of 522-554 MHz, compatible with most professional wireless microphone systems
  • OM2 Microphone provides clear and accurate sound reproduction, resistance to feedback, and handles high SPL without distortion
  • B60 Transmitter features a slim, lightweight design, high-contrast LCD display, and 10-hour run time on AA batteries
  • ADX10 Lavalier Condenser Microphone offers clarity, resistance to feedback, and accurately captures and reproduces vocals from a comfortable distance of 4"-8"

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Achieve vocal clarity with the included OM2 handheld dynamic microphone's hypercardioid pattern.
  • Enjoy freedom of movement with a robust wireless range, ideal for dynamic performances.
  • The ADX10 lavalier condenser microphone delivers exceptional sound for interviews and film.
  • Get up to 10 hours of battery life with the B60 bodypack transmitter for uninterrupted use.
  • Easily integrate this wireless system with XLR and 1/4" outputs on the R42 receiver.

What's in the box:

  • Audix R42 Receiver
  • OM2 Handheld Dynamic Microphone
  • B60 Body Pack Transmitter
  • ADX10 Lavalier Condenser Microphone
  • Audix 3 Year Limited Warranty
