17% Off

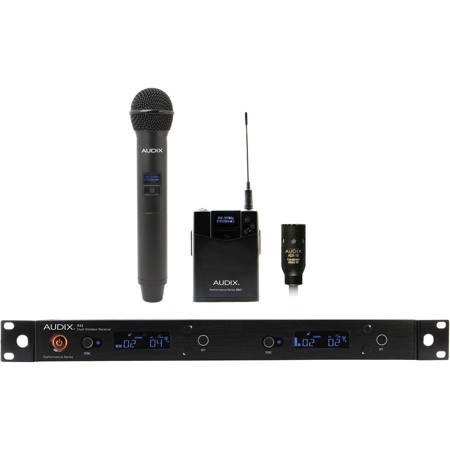

Audix Performance Series AP42 C210-B Wireless System, Includes R42 Receiver, OM2 Handheld Dynamic Microphone, B60 Body Pack Transmitter, ADX10 Lavalier Condenser Microphone, Band B: 554-586MHz

SKU: AUAP42C210B MFR: AP42C210B
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Achieve superior sound quality with the OM2 handheld microphone, featuring a hypercardioid polar pattern.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic stage presence.
  • The ADX10 lavalier mic delivers exceptional clarity for speeches and presentations; discreet and effective.
  • Long-lasting battery life ensures uninterrupted performance; focus on your show, not the power levels.
  • This durable wireless system is built to withstand rigorous use, offering years of reliable performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP42 C210-B Specifications

  • R42 Receiver: Frequency Range

    554 MHz - 586 MHz

  • R42 Receiver: Bandwidth

    32 MHz

  • R42 Receiver: Compatible Systems

    8 Compatible System Operation

  • R42 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R42 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R42 Receiver: Signal to Noise Ratio

    >105 dB

  • R42 Receiver: Compander System

    2:1

  • R42 Receiver: Pilot Tone

    32 kHz

  • R42 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R42 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R42 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R42 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R42 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R42 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R42 Receiver: Output Connectors

    1/4", XLR

  • R42 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R42 Receiver: Adjacent Channel Rejection

    >65 dB

  • R42 Receiver: Intermodulation Spacing

    >65 dB

  • R42 Receiver: Image Rejection

    >70 dB

  • R42 Receiver: Range

    300' / 91.44m

  • R42 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter: Input Impedance

    Mic: 10k Ohm, Line: 1M Ohm

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • ADX10 Microphone: Transducer Type

    Pre-Polarized Condenser

  • ADX10 Microphone: Frequency Response

    50 Hz - 18 kHz

  • ADX10 Microphone: Polar Pattern

    Cardioid

  • ADX10 Microphone: Output Impedance

    800 Ohms

  • ADX10 Microphone: Sensitivity

    5 mV / Pa at 1k

  • ADX10 Mic: Equivalent Noise Level

    <29 dB (A-weighted)

  • ADX10 Microphone: Signal to Noise Ratio

    >65 dB

  • ADX10 Microphone: Maximum SPL

    =120 dB

  • ADX10 Microphone: Power Requirements

    9-52 V phantom

  • ADX10 Microphone: Connector

    Shielded 3' terminating to a miniature 3 pin Female XLR connector

  • ADX10 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • ADX10 Microphone: Materials / Finish

    Machined Brass / Black Finish

  • Dimensions

    R42 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
    ADX10 Microphone (Length): 25mm / 0.98"
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R42 Receiver: 1.92lbs / 0.87kg
    B60 Transmitter: 3.0oz / 85.05g (without battery)
    ADX10 Microphone: 21g / 0.74oz
    OM2 Microphone: 307g / 10.83oz

  • UPC Code

    687471931028

About Audix AP42 C210-B

Experience the pinnacle of wireless audio performance with the Audix Performance Series AP42 C210-B Wireless System. This professional-grade system is engineered to simplify the wireless experience for vocalists, musicians, performers, and presenters, offering a reliable and versatile solution for any live event or presentation.

The system includes the Dual Channel R42 Receiver, which boasts a sleek, contemporary design and rugged construction suited for both single and dual rack mountable setups. The intuitive menu ensures easy operation, while the dual channel capability allows for seamless audio management with a single set of antennas and one power supply.

The B60 Body Pack Transmitter is a testament to modern design, offering a robust and comfortable user experience. Its 64 MHz wide spectrum transmitter is compatible with all Performance Series receivers, ensuring a broad range of operation. The precision metal housing and modular antenna design contribute to its durability and functionality. This transmitter is incredibly versatile, supporting lavalier, headworn, and instrument microphones, as well as electric guitars and basses. Key features include AF and RF gain control, a high-contrast LCD display for monitoring group, channel, and battery status, a soft mute switch for noiseless operation, and an impressive 10-hour run time on AA batteries.

The OM2 Handheld Dynamic Microphone is a standout in the Audix lineup, designed, assembled, and tested in the USA for superior quality assurance. It delivers clear and accurate sound reproduction, capable of handling very high SPLs without distortion. The hypercardioid polar pattern is tightly controlled, isolating vocals from other stage noise and providing exceptional feedback resistance. The OM2's frequency range of 50 Hz - 16 kHz, coupled with a VLM diaphragm, ensures a natural sound with excellent transient response. The microphone's design is optimized for both small and mid-size PA systems, offering a warm, full sound with a tailored mid-range. The OM2's durable construction includes a precision die-cast zinc alloy body, black E-coat finish, dent-resistant steel mesh grill, and a gold-plated XLR connector.

The ADX10 Lavalier Condenser Microphone is a compact powerhouse, ideal for speech, presentation, and theatrical production. Renowned for its clarity and feedback resistance, the ADX10 captures and reproduces vocals with precision from a comfortable distance of 4"-8". Its cardioid polar pattern ensures focused audio capture, minimizing background noise and isolating the desired sound source. The frequency response of 50 Hz - 18 kHz guarantees a smooth and accurate vocal representation. The ADX10 is not only lightweight and discreet but also features a field-replaceable capsule and is available for both wireless and wired applications. Included with the microphone is a tie-clip and a 3.5-foot attached cable with a mini-XLRf connector, ensuring easy integration with Audix wireless systems.

The Audix Performance Series AP42 C210-B Wireless System is a comprehensive audio solution that combines ease of use with professional-quality sound, making it an ideal choice for anyone seeking a top-tier wireless microphone system in the 554-586MHz frequency band.

Audix AP42 C210-B Features

  • Dual Channel R42 Receiver with intuitive operation and durable rack-mount design
  • B60 Body Pack Transmitter, versatile with high-contrast LCD display and 10-hour battery life
  • OM2 Handheld Dynamic Microphone for clear, feedback-resistant audio with a hypercardioid pattern
  • ADX10 Lavalier Condenser Microphone with natural sound reproduction and cardioid polar pattern
  • Professional-grade wireless system ideal for live performances and presentations
  • Designed and tested in the USA for assured quality and reliability

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Achieve superior sound quality with the OM2 handheld microphone, featuring a hypercardioid polar pattern.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic stage presence.
  • The ADX10 lavalier mic delivers exceptional clarity for speeches and presentations; discreet and effective.
  • Long-lasting battery life ensures uninterrupted performance; focus on your show, not the power levels.
  • This durable wireless system is built to withstand rigorous use, offering years of reliable performance.

What's in the box:

  • Audix R42 Receiver
  • OM2 Handheld Dynamic Microphone
  • B60 Body Pack Transmitter
  • ADX10 Lavalier Condenser Microphone
  • Audix 3 Year Limited Warranty
