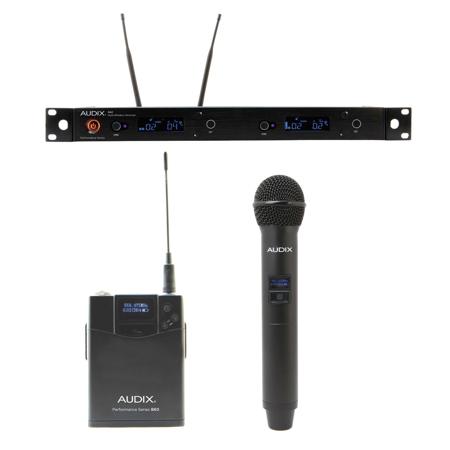

Audix R42 Receiver with H60 OM2 Handheld Transmitter and B60 Bodypack Transmitter, Band B: 554MHz - 586MHz

SKU: AUAP42C2BPB MFR: AP42C2BPB
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Experience freedom with a 300' range using our wireless transmitter and receiver setup.
  • Enjoy up to 14 hours of battery life with both handheld and bodypack wireless microphones.
  • Easily rackmount the receiver for a streamlined setup in your professional audio environment.
  • Customize your sound with adjustable gain on the bodypack wireless transmitter for optimal levels.
  • Utilize the handheld microphone's hypercardioid pattern to minimize background noise effectively.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix R42 with H60 OM2 and B60 Specifications

R42 Receiver

R42 Receiver

Jump to...
  • Frequency Band

    554 to 586 MHz

  • Bandwidth

    32 MHz

  • # Of Simultaneous Systems

    Up to 8

  • Switchable Frequencies

    106 pre-coordinated frequencies

  • Wireless Range

    Up to 300' (91m)

  • Antenna Connector

    2x BNC (8 VDC, 150 mA)

  • Outputs

    2x XLR 3-pin balanced
    2x 1/4" TS unbalanced

  • Audio Output Level

    XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
    1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain

  • Audio Level Control

    -12 to +9 dB in 3 dB steps

  • Frequency Response

    45 Hz to 18 kHz

  • Compander

    2:1

  • Pilot Tone

    32 kHz

  • Receiving System

    Single tuner, antenna diversity

  • Signal to Noise Ratio

    105 dB at 30 kHz deviation (A-weighted)

  • Total Harmonic Distortion (THD)

    <=0.7% (33 kHz deviation at 1 kHz)

  • Sensitivity

    5 dBmicroV (S/N 60 dB at 25 kHz deviation, A-weighted)

  • Power Requirement

    100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

  • Dimensions (W x D x H)

    16.0 x 8.2 x 1.7" (406 x 209 x 44mm)

  • Weight

    4.8 lb (2.2kg)

H60 OM2 Handheld Transmitter

Jump to...
  • Type

    Dynamic

  • Polar Pattern

    Hypercardioid

  • Capsule

    VLM Type B

  • Frequency Response

    50 Hz to 16 kHz

  • Maximum SPL

    >=140 dB

  • Impedance

    290 Ohms

  • Sensitivity

    1.6 mV/Pa at 1 kHz

  • Off-Axis Performance

    Rejection >25 dB

  • RF Power Output

    10/30 mW

  • Bandwidth

    64 MHz

  • Gain Adjustment

    0 dB, -6 dB, -12 dB

  • Battery Life

    Approximately 14 hours

  • Current Consumption

    110 mA typical

  • Power Requirement

    2x AA 1.5 V batteries

  • Dimensions (Diam. x L)

    2.1 x 10.4" (53 x 265mm)

  • Weight

    11 oz (312g) without batteries

B60 Bodypack Transmitter

Jump to...
  • RF Power Output

    10/30 mW

  • Bandwidth

    64 MHz

  • Gain Adjustment

    0 dB, -6 dB, -12 dB, -24 dB

  • Inputs

    1x mini-XLR 3-pin

  • Input Impedance

    Mic: 10 kOhms
    Line: 1 Mohm

  • Maximum SPL

    Approximately 128 to 140 dB (depending on microphone)

  • Battery Life

    Approximately 14 hours

  • Current Consumption

    110 mA typical

  • Power Requirement

    2x AA 1.5 V batteries

  • Dimensions (W x L x D)

    2.6 x 3.5 x 0.7" (67 x 90 x 17mm)

  • Weight

    3 oz (85g) without batteries

About Audix R42 with H60 OM2 and B60

If you're seeking a robust and versatile wireless microphone system that delivers professional-grade audio quality, the R42 Receiver with H60 OM2 Handheld Transmitter and B60 Bodypack Transmitter is an exceptional choice. This system is engineered to meet the rigorous demands of live performances, presentations, and professional AV applications, offering a durable and reliable solution for your audio needs.

The R42 Receiver is a two-channel diversity receiver that comes complete with antennas, a power supply, a rack mount, and BNC cables for front mounting antennas. Its innovative design allows for a variety of combination packs to be customized to specific applications, ensuring that you have the right transmitters and microphones for your unique requirements. When paired with the ADS48 antenna distribution system, you can seamlessly integrate up to four R42 systems (8 channels of wireless) into just 5 rack spaces, all running off a single set of antennas for a streamlined setup.

The H60 OM2 Handheld Transmitter features our best-selling vocal microphone, the OM2, renowned for its high-quality sound with a slight bass proximity, a tailored mid-range, and a full-bodied sound profile. This microphone is ideally optimized for small to mid-size PA systems and is celebrated for its excellent stage isolation, outstanding feedback rejection, and capability to handle high sound pressure levels without distortion, making it a top choice for vocalists and speakers.

Complementing the handheld transmitter is the B60 Bodypack Transmitter, known for its innovative and comfortable design. The bodypack is built to be both rugged and user-friendly, making it suitable for a wide range of users and applications. It features a convenient soft mute switch at the top of the housing, which doubles as an on-off switch when necessary. The high-contrast LCD display ensures easy monitoring of group, channel, and battery status. Designed for compatibility with all Audix lavalier, headworn, and instrument mics, the B60 Bodypack Transmitter also excels when used with guitars and basses.

With a frequency range of 554-586 MHz, this wireless system offers flexibility and reliability for your audio setups. Choose the R42 Receiver with H60 OM2 Handheld Transmitter and B60 Bodypack Transmitter for a high-quality, professional audio experience backed by the trusted reputation of Adorama, a leading retailer in the electronics industry.

Audix R42 with H60 OM2 and B60 Features

  • R42 Receiver Features:
  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam
  • H60 OM2 Handheld Transmitter Features:
  • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
  • Durable metal housing
  • 14 Hour run time - AA batteries
  • B60 Bodypack Transmitter Features:
  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 14 Hour run time - AA batteries

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Experience freedom with a 300' range using our wireless transmitter and receiver setup.
  • Enjoy up to 14 hours of battery life with both handheld and bodypack wireless microphones.
  • Easily rackmount the receiver for a streamlined setup in your professional audio environment.
  • Customize your sound with adjustable gain on the bodypack wireless transmitter for optimal levels.
  • Utilize the handheld microphone's hypercardioid pattern to minimize background noise effectively.

What's in the box:

  • R42 Receiver (Band B: 554MHz
  • 586MHz)
  • 2x BNC Cables
  • 2x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Kit
  • H60 OM2 Handheld Transmitter
  • 2x AA Batteries
  • Mic Clip
  • Pouch
  • B60 Bodypack Transmitter
  • Audix 1 Year Limited Warranty
