Audix AP42 OM2-A Performance Series Wireless System
Audix AP42 OM2-A: Picture 1 thumbnail
Audix AP42 OM2-A: Picture 2 thumbnail
See all Audix items
17% Off

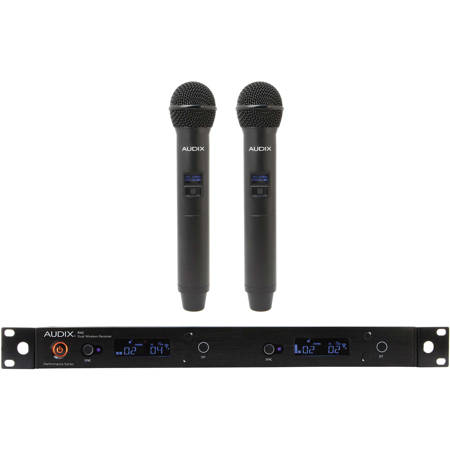

Audix Performance Series AP42 OM2-A Wireless System, Includes R42 Receiver, 2x H60 Handheld Transmitter, 2x OM2 Dynamic Microphone, Band A: 522-554MHz

SKU: AUAP42OM2A MFR: AP42OM2A
Be the first to review this itemAsk a Question
$1,240.00
$1,488.00
Save: $248 (17%)
OR
$104/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear sound with this wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • The robust handheld microphone system includes two OM2 dynamic mics known for their durability.
  • Achieve professional audio quality with a wide frequency response, ideal for various vocal styles.
  • This wireless system features easy setup and operation, making it great for both beginners and pros.
  • Get long-lasting performance with approximately 10 hours of battery life on the handheld transmitters.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Audix AP42 OM2-A Specifications

  • R42 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R42 Receiver: Bandwidth

    32 MHz

  • R42 Receiver: Compatible Systems

    8 Compatible System Operation

  • R42 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R42 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R42 Receiver: Signal to Noise Ratio

    >105 dB

  • R42 Receiver: Compander System

    2:1

  • R42 Receiver: Pilot Tone

    32 kHz

  • R42 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R42 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R42 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R42 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R42 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R42 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R42 Receiver: Output Connectors

    1/4", XLR

  • R42 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R42 Receiver: Adjacent Channel Rejection

    >65 dB

  • R42 Receiver: Intermodulation Spacing

    >65 dB

  • R42 Receiver: Image Rejection

    >70 dB

  • R42 Receiver: Range

    300' / 91.44m

  • R42 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • Dimensions

    R42 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R42 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    OM2 Microphone: 307g / 10.83oz

  • UPC Code

    687471741009

About Audix AP42 OM2-A

Audix AP42 OM2-A Features

  • Professional-grade AP42 OM2-A Wireless System perfect for live performances and events
  • Dual Channel R42 Receiver with intuitive menus and rack-mountable design for ease of use
  • Two H60 Handheld Transmitters with 64 MHz spectrum and high-contrast LCD display
  • OM2 Dynamic Microphones with VLM diaphragm for natural, clear sound reproduction
  • Hypercardioid polar pattern for superior vocal isolation and feedback resistance
  • Durable construction with die-cast zinc alloy body and dent-resistant steel mesh grill

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear sound with this wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet for dynamic performances.
  • The robust handheld microphone system includes two OM2 dynamic mics known for their durability.
  • Achieve professional audio quality with a wide frequency response, ideal for various vocal styles.
  • This wireless system features easy setup and operation, making it great for both beginners and pros.
  • Get long-lasting performance with approximately 10 hours of battery life on the handheld transmitters.

What's in the box:

  • Audix R42 Receiver
  • 2x H60 Handheld Transmitter
  • 2x OM2 Dynamic Microphone
  • Audix 3 Year Limited Warranty
