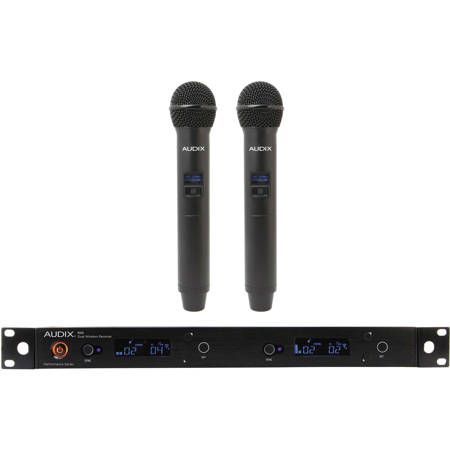

Audix Performance Series AP42 OM5-A Wireless System, Includes R42 Receiver, 2x H60 Handheld Transmitter, 2x OM5 Dynamic Microphone, Band A: 522-554MHz

SKU: AUAP42OM5A

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audix AP42 OM5-A Specifications

  • R42 Receiver: Frequency Range

    522 MHz - 554 MHz

  • R42 Receiver: Bandwidth

    32 MHz

  • R42 Receiver: Compatible Systems

    8 Compatible System Operation

  • R42 Receiver: Switchable Frequencies

    106 Preset Frequencies

  • R42 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R42 Receiver: Signal to Noise Ratio

    >105 dB

  • R42 Receiver: Compander System

    2:1

  • R42 Receiver: Pilot Tone

    32 kHz

  • R42 Receiver: Receiving System

    Single Tuner, Antenna Diversity

  • R42 Receiver: Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (IEC-weighted)

  • R42 Receiver: Total Harmonic Distortion

    <=7% (10 kHz deviation at 1 kHz)

  • R42 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R42 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R42 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R42 Receiver: Output Connectors

    1/4", XLR

  • R42 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R42 Receiver: Adjacent Channel Rejection

    >65 dB

  • R42 Receiver: Intermodulation Spacing

    >65 dB

  • R42 Receiver: Image Rejection

    >70 dB

  • R42 Receiver: Range

    300' / 91.44m

  • R42 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • OM5 Microphone: Transducer Type

    Dynamic

  • OM5 Microphone: Frequency Response

    48 Hz - 19 kHz

  • OM5 Microphone: Polar Pattern

    Hypercardioid

  • OM5 Microphone: Output Impedance

    200 Ohms

  • OM5 Microphone: Sensitivity

    2 mV / Pa at 1k

  • OM5 Microphone: Capsule Technology

    VLM Type C

  • OM5 Microphone: Off-Axis Rejection

    >30 dB

  • OM5 Microphone: Maximum SPL

    =144 dB

  • OM5 Microphone: Connector

    3-pin XLRm

  • OM5 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM5 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • Dimensions

    R42 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    OM5 Microphone (Length): 176mm / 6.93"

  • Weight

    R42 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    OM5 Microphone: 330g / 11.64oz

  • UPC Code

    00687471741016

About Audix AP42 OM5-A

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.

Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.

Dual Channel R42 Receiver
Dual channel system housed within a durable rack mount receiver. Operates with one set of antennas and one power supply.

Handheld H60 Transmitters
The H60 features an elegantly designed slim line body that is compact, well-balanced and comfortable to hold.

• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Durable metal housing
• May be used with dynamic (OM Series) and condenser microphones (VX5)
• AF and RF gain control
• Modular and interchangeable capsule assemblies
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries

OM5 Dynamic Vocal Microphone
Designed, assembled and tested by Audix in the USA, the OM5 is a dynamic vocal microphone used for stage, studio and broadcast applications. The OM5 is known for its clarity, resistance to feedback and ability to handle very high SPL (Sound Pressure Levels) in excess of 144 dB without distortion. The OM5 is characterized with an extremely tight and uniformly controlled hyper cardioid polar pattern which helps to isolate the vocals from the rest of the instruments on stage. With a wide frequency range of 48 Hz - 19 kHz, the OM5 employs a VLM (Very Low Mass) diaphragm for natural response, accurate sound reproduction and exceptional transient response.

• Concert level, professional vocal mic for live sound, broadcast and studio
• Very tight pattern control, exceptional clarity for premium PA systems
• Clear, accurate sound with slight mid-range boost
• Allows vocals to cut through the stage mix
• Extreme off-axis rejection provides excellent isolation on stage
• VLM Capsule
• Designed, assembled & tested in the USA

The OM5 is naturally attenuated at 120 Hz to reduce boominess and handling noise. The mid-range is tailored for presence allowing the vocalist to be more easily heard in the mains as well as the monitors. The OM5 is comfortable to hold, durable and designed with high standards and tight tolerances. The OM5 is manufactured with a precision die cast zinc alloy body, durable black E-coat finish, dent resistant steel mesh grill and gold plated XLR connector.

What's in the box:

  • Audix R42 Receiver
  • 2x H60 Handheld Transmitter
  • 2x OM5 Dynamic Microphone
  • Audix 3 Year Limited Warranty
