Audix AP61 BP Performance Series Wireless System
Audix AP61 BP: Picture 1 thumbnail
Audix AP61 BP: Picture 2 thumbnail
See all Audix items
17% Off

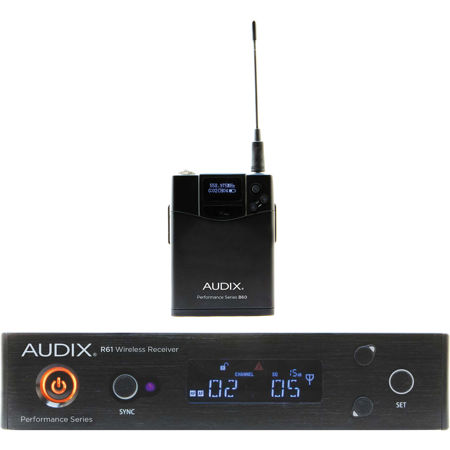

Audix Performance Series AP61 BP Wireless System, Includes R61 Receiver, B60 Body Pack Transmitter, No Microphone

SKU: AUAP61BP MFR: AP61BP
Be the first to review this itemAsk a Question
$869.00
$1,043.00
Save: $174 (17%)
OR
$73/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet using this system.
  • The B60 bodypack transmitter offers durable performance, ideal for demanding stage use.
  • Achieve optimal sound with adjustable gain controls on the B60 transmitter for clear vocals.
  • This wireless system features easy setup with 207 preset frequencies for quick configuration.
  • Get long-lasting power with approximately 10 hours of battery life on the B60 transmitter.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Audix AP61 BP Specifications

  • R61 Receiver: Frequency Range

    522 MHz - 586 MHz

  • R61 Receiver: Bandwidth

    64 MHz

  • R61 Receiver: Compatible Systems

    16 Compatible System Operation

  • R61 Receiver: Switchable Frequencies

    207 Preset Frequencies

  • R61 Receiver: Manual Mode

    2560 frequencies (spaced 25 KHz apart)

  • R61 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R61 Receiver: Signal to Noise Ratio

    >105 dB

  • R61 Receiver: Compander System

    2:1

  • R61 Receiver: Pilot Tone

    32 kHz

  • R61 Receiver: Receiving System

    Dual Tuner, True Diversity

  • R61 Receiver: Signal-to-Noise Ratio

    112 dB at 30 kHz deviation (IEC-weighted)

  • R61 Receiver: Total Harmonic Distortion

    <= 4% (10 kHz deviation at 1 kHz)

  • R61 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R61 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R61 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R61 Receiver: Output Connectors

    1/4", XLR

  • R61 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R61 Receiver: Adjacent Channel Rejection

    >65 dB

  • R61 Receiver: Intermodulation Spacing

    >65 dB

  • R61 Receiver: Image Rejection

    >70 dB

  • R61 Receiver: Range

    300' / 91.44m

  • R61 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • B60 Transmitter: RF Power Output

    10 mW, 40 mW

  • B60 Transmitter: Frequency Bandwidth

    64 MHz

  • B60 Transmitter: Gain Controls

    0 db, -6 dB, -12 dB

  • B60 Transmitter: Input Connector

    3-Pin mini-XLR

  • B60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • B60 Transmitter: Current Consumption

    110 mA typical

  • B60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • B60 Transmitter:Max Sound Pressure Level

    (Approx.) 128 db to140 dB (depending on mic)

  • Dimensions

    R61 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"

  • Weight

    R61 Receiver: 2.43 lbs / 1.1 kg
    B60 Transmitter: 3.0 oz / 85 g (without battery)

About Audix AP61 BP

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.

Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.

R61 Receivers
• 64 MHz Wide spectrum tuning receiver
• True diversity, dual receiver modules
• 16 compatible system operations
• 207 pre-coordinated frequencies for quick, easy and reliable set up
• 2560 tunable frequencies
• 300' (91 Meters) operating range
• Metal rack mountable chassis
• RF and AF indicators
• High contrast LCD display
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Choice of balanced XLR or 1/4" outputs
• Soft keys control output levels, squelch, pilot, lockout
• Wide selection of handheld, instrument, headset and lavalier options

Bodypack B60 Transmitters
The Audix Performance Series body pack system is very contemporary in design, rugged, comfortable to wear and easy to use.

• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Precision metal housing
• Lightweight, slim design
• Modular antenna design
• May be used with lavalier, head worn and instrument mics as well as electric guitar and bass
• AF and RF gain control
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet using this system.
  • The B60 bodypack transmitter offers durable performance, ideal for demanding stage use.
  • Achieve optimal sound with adjustable gain controls on the B60 transmitter for clear vocals.
  • This wireless system features easy setup with 207 preset frequencies for quick configuration.
  • Get long-lasting power with approximately 10 hours of battery life on the B60 transmitter.

What's in the box:

  • Audix R61 Receiver
  • B60 Body Pack Transmitter
  • Audix 3 Year Limited Warranty
