17% Off

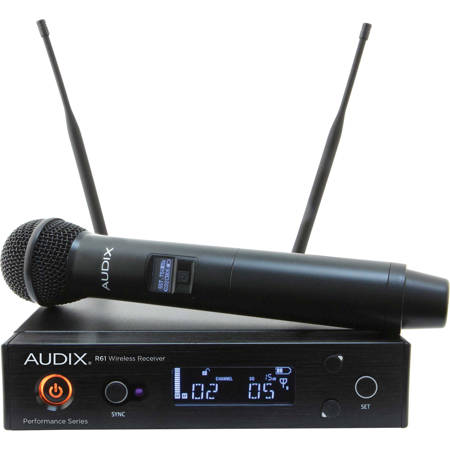

Audix Performance Series AP61 OM2 Wireless System, Includes R61 Receiver, H60 Handheld Transmitter, OM2 Dynamic Microphone

SKU: AUAP61OM2 MFR: AP61OM2
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Audix wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range of up to 300 feet for dynamic performances.
  • The OM2 dynamic microphone ensures exceptional sound quality and clarity for every performance.
  • Achieve professional-grade audio with minimal feedback thanks to the hypercardioid polar pattern.
  • This handheld wireless microphone system offers up to 10 hours of battery life for extended use.
  • Set up is a breeze! Get ready to use this wireless microphone system for events, karaoke, and more.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP61 OM2 Specifications

  • R61 Receiver: Frequency Range

    522 MHz - 586 MHz

  • R61 Receiver: Bandwidth

    64 MHz

  • R61 Receiver: Compatible Systems

    16 Compatible System Operation

  • R61 Receiver: Switchable Frequencies

    207 Preset Frequencies

  • R61 Receiver: Manual Mode

    2560 frequencies (spaced 25 KHz apart)

  • R61 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R61 Receiver: Signal to Noise Ratio

    >105 dB

  • R61 Receiver: Compander System

    2:1

  • R61 Receiver: Pilot Tone

    32 kHz

  • R61 Receiver: Receiving System

    Dual Tuner, True Diversity

  • R61 Receiver: Signal-to-Noise Ratio

    112 dB at 30 kHz deviation (IEC-weighted)

  • R61 Receiver: Total Harmonic Distortion

    <= 4% (10 kHz deviation at 1 kHz)

  • R61 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R61 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R61 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R61 Receiver: Output Connectors

    1/4", XLR

  • R61 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R61 Receiver: Adjacent Channel Rejection

    >65 dB

  • R61 Receiver: Intermodulation Spacing

    >65 dB

  • R61 Receiver: Image Rejection

    >70 dB

  • R61 Receiver: Range

    300' / 91.44m

  • R61 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • Dimensions

    R61 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R61 Receiver: 2.43 lbs / 1.1 kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    OM2 Microphone: 307g / 10.83oz

  • UPC Code

    00687471781005

About Audix AP61 OM2

Because every performer deserves the best, the Audix Performance Series AP61 OM2 Wireless System is meticulously designed to deliver high-quality, reliable, and versatile audio performance. Ideal for vocalists, musicians, and presenters, this professional-grade wireless system simplifies your audio setup while ensuring top-notch sound quality.

The system includes the R61 Receiver, a true diversity, dual receiver module with a wide 64 MHz spectrum tuning. It boasts 207 pre-coordinated frequencies and 2560 tunable frequencies, ensuring quick, easy, and reliable setup. With an operating range of 300' (91 meters), this receiver offers flexibility for performers on stage. Its high-contrast LCD display, one-touch auto scan for clear channels, and one-touch sync linking the transmitter to the receiver via infrared beam, make it user-friendly and efficient. The receiver also features balanced XLR or 1/4" outputs and soft keys for controlling output levels, squelch, pilot, and lockout.

The H60 Handheld Transmitter, part of the package, is a testament to Audix's commitment to innovative design and durability. Its slimline body is compact, well-balanced, and comfortable to hold. The transmitter is compatible with both dynamic (OM Series) and condenser microphones (VX5), and features AF and RF gain control, modular and interchangeable capsule assemblies, and a high contrast LCD display with group, channel, and battery indicators.

The OM2 Dynamic Vocal Microphone, included in the system, is designed, assembled, and tested by Audix in the USA. It's an all-purpose professional vocal mic that delivers clear and accurate sound reproduction, resistance to feedback, and the ability to handle very high Sound Pressure Levels (SPL) without distortion. With a wide frequency range of 50 Hz - 16 kHz, the OM2 employs a Very Low Mass (VLM) diaphragm for natural sound with exceptional transient response. Its hypercardioid polar pattern helps isolate vocals from other instruments on stage, providing excellent feedback rejection and allowing the vocal to cut through the mix.

The OM2 microphone is constructed with a precision die-cast zinc alloy body, a durable black E-coat finish, a dent-resistant steel mesh grill, and a gold-plated XLR connector. Its design features a slight bass proximity and a tailored mid-range, delivering a full-bodied sound on small to mid-size PA systems without compromising performance on larger systems.

In summary, the Audix Performance Series AP61 OM2 Wireless System is a high-quality, professional, and reliable choice for any performer seeking superior audio performance.

Audix AP61 OM2 Features

  • High-quality, professional-grade Audix Performance Series AP61 OM2 Wireless System for clear, reliable audio performance
  • R61 Receiver with wide 64 MHz spectrum tuning, 207 pre-coordinated frequencies, and 2560 tunable frequencies for easy setup
  • H60 Handheld Transmitter featuring a slimline, comfortable design and compatibility with both dynamic and condenser microphones
  • OM2 Dynamic Vocal Microphone with wide frequency range, resistance to feedback, and ability to handle high Sound Pressure Levels (SPL) without distortion
  • Wireless system ideal for vocalists, musicians, and presenters for live performances, rehearsals, and home studios
  • American-made microphone with precision die-cast zinc alloy body, durable black E-coat finish, and gold-plated XLR connector for durability and high standards

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Audix wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement with a reliable wireless range of up to 300 feet for dynamic performances.
  • The OM2 dynamic microphone ensures exceptional sound quality and clarity for every performance.
  • Achieve professional-grade audio with minimal feedback thanks to the hypercardioid polar pattern.
  • This handheld wireless microphone system offers up to 10 hours of battery life for extended use.
  • Set up is a breeze! Get ready to use this wireless microphone system for events, karaoke, and more.

What's in the box:

  • Audix R61 Receiver
  • H60 Handheld Transmitter
  • OM2 Dynamic Microphone
  • Audix 3 Year Limited Warranty
