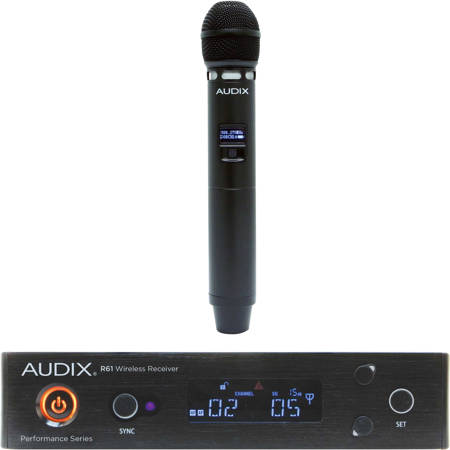

Audix Performance Series AP61 VX5 Wireless System, Includes R61 Receiver, H60 Handheld Transmitter, VX5 Condenser Microphone

SKU: AUAP61VX5 MFR: AP61VX5
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the VX5 condenser microphone, perfect for live vocals.
  • Enjoy a reliable wireless connection up to 300 feet with this handheld microphone system.
  • The Audix R61 receiver offers 207 preset frequencies for interference-free performance.
  • Achieve professional sound quality with a wide 40 Hz - 16.5 kHz frequency response.
  • This durable wireless microphone is ideal for presentations, singing, and public speaking.
  • Get 10 hours of battery life with the H60 transmitter, ensuring long-lasting performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP61 VX5 Specifications

  • R61 Receiver: Frequency Range

    522 MHz - 586 MHz

  • R61 Receiver: Bandwidth

    64 MHz

  • R61 Receiver: Compatible Systems

    16 Compatible System Operation

  • R61 Receiver: Switchable Frequencies

    207 Preset Frequencies

  • R61 Receiver: Manual Mode

    2560 frequencies (spaced 25 KHz apart)

  • R61 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R61 Receiver: Signal to Noise Ratio

    >105 dB

  • R61 Receiver: Compander System

    2:1

  • R61 Receiver: Pilot Tone

    32 kHz

  • R61 Receiver: Receiving System

    Dual Tuner, True Diversity

  • R61 Receiver: Signal-to-Noise Ratio

    112 dB at 30 kHz deviation (IEC-weighted)

  • R61 Receiver: Total Harmonic Distortion

    <= 4% (10 kHz deviation at 1 kHz)

  • R61 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R61 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R61 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R61 Receiver: Output Connectors

    1/4", XLR

  • R61 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R61 Receiver: Adjacent Channel Rejection

    >65 dB

  • R61 Receiver: Intermodulation Spacing

    >65 dB

  • R61 Receiver: Image Rejection

    >70 dB

  • R61 Receiver: Range

    300' / 91.44m

  • R61 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • VX5 Microphone: Transducer Type

    Pre-Polarized Condenser

  • VX5 Microphone: Frequency Response

    40 Hz - 16.5 kHz

  • VX5 Microphone: Polar Pattern

    Supercardioid

  • VX5 Microphone: Output Impedance

    150 Ohms

  • VX5 Microphone: Sensitivity

    5 mV / Pa at 1k

  • VX5 Microphone: Equivalent Noise Level

    26 dB (A-weighted)

  • VX5 Microphone: Off Axis Rejection

    >20 dB

  • VX5 Microphone: Maximum SPL

    =140 dB (w/ -10 pad)

  • VX5 Microphone: Power Requirements

    9-52 V

  • VX5 Microphone: Connector

    3-pin XLRm

  • VX5 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • VX5 Microphone: Materials / Finish

    Zinc Alloy & Machined Brass / Black Finish

  • Dimensions

    R61 Receiver (W x D x H): 205 x 206 x 44mm / 8.07 x 8.11 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    VX5 Microphone (Length): 181mm / 7.13"

  • Weight

    R61 Receiver: 2.43 lbs / 1.1 kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    VX5 Microphone: 277g / 9.77oz

About Audix AP61 VX5

Just imagine the power of professional-grade audio equipment in your hands. The Performance Series AP61 VX5 Wireless System, inclusive of the R61 Receiver, H60 Handheld Transmitter, and VX5 Condenser Microphone, is designed for vocalists, musicians, performers, and presenters who demand quality and reliability. This system is engineered to demystify the complexities of wireless technology, offering a user-friendly, versatile solution that doesn't compromise on performance.

The R61 Receiver, a key component of this system, boasts a wide spectrum tuning receiver with 64 MHz, true diversity with dual receiver modules, and 16 compatible system operations. It offers 207 pre-coordinated frequencies and 2560 tunable frequencies, ensuring quick, easy, and reliable setup. With a robust metal rack mountable chassis, high contrast LCD display, and one-touch auto scan for clear channel, this receiver is as practical as it is powerful.

The H60 Handheld Transmitter, with its slimline body and durable metal housing, is a perfect blend of elegance and durability. It's compatible with both dynamic (OM Series) and condenser microphones (VX5), offering AF and RF gain control, and a high contrast LCD display for easy monitoring. The transmitter also features a soft mute switch and boasts a 10-hour run time on AA batteries.

The VX5 Condenser Vocal Microphone, known for its smooth and accurate frequency response, is a professional-grade microphone designed for live, studio, and broadcast applications. It's capable of handling very high sound pressure levels without distortion, thanks to its tight and uniformly controlled supercardioid polar pattern. The VX5 offers a wide frequency range of 40 Hz - 16.5 kHz, delivering clean and natural sound with exceptional transient response. This microphone requires 9 - 52 volts phantom power and is ideally suited for capturing vocals and acoustic instruments.

The VX5 is crafted with a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with a multi-stage pop filter, and a -10 dB pad and bass roll-off filter. It's designed, assembled, and tested in the USA, ensuring the highest standards of quality and performance. The VX5 is a versatile microphone for home studio recording, capable of handling sound pressure levels in excess of 140 dB and providing over 20 dB of ambient noise rejection on live stages.

With its precision die-cast zinc alloy body, durable black E-coat finish, and gold-plated XLR connector, the VX5 is not just a microphone, but a testament to superior design and craftsmanship. Experience the difference with the Performance Series AP61 VX5 Wireless System.

Audix AP61 VX5 Features

  • Professional-grade AP61 VX5 Wireless System, perfect for vocalists, musicians, performers, and presenters
  • R61 Receiver with wide spectrum tuning, 207 pre-coordinated frequencies, and 2560 tunable frequencies for reliable audio performance
  • H60 Handheld Transmitter with durable metal housing, AF and RF gain control, and a 10-hour run time on AA batteries
  • VX5 Condenser Vocal Microphone with smooth and accurate frequency response, ideal for live, studio, and broadcast applications
  • Microphone features a 14 mm gold vapor diaphragm, multi-stage pop filter, and a -10 dB pad and bass roll-off filter for superior sound quality
  • Manufactured with high standards, featuring a precision die-cast zinc alloy body, durable black E-coat finish, and gold-plated XLR connector

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the VX5 condenser microphone, perfect for live vocals.
  • Enjoy a reliable wireless connection up to 300 feet with this handheld microphone system.
  • The Audix R61 receiver offers 207 preset frequencies for interference-free performance.
  • Achieve professional sound quality with a wide 40 Hz - 16.5 kHz frequency response.
  • This durable wireless microphone is ideal for presentations, singing, and public speaking.
  • Get 10 hours of battery life with the H60 transmitter, ensuring long-lasting performance.

What's in the box:

  • Audix R61 Receiver
  • H60 Handheld Transmitter
  • VX5 Condenser Microphone
  • Audix 3 Year Limited Warranty
