Audix Performance Series AP62 OM2 Wireless System, Includes R62 Receiver, 2x H60 Handheld Transmitter, 2x OM2 Dynamic Microphone

SKU: AUAP62OM2 MFR: AP62OM2
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet with the Audix system.
  • The handheld microphone system features durable construction, ensuring it withstands rigorous use.
  • Achieve superior sound quality with the OM2 dynamic microphone, ideal for vocals and speech.
  • Benefit from long-lasting battery life, providing up to 10 hours of uninterrupted performance.
  • This easy-to-use wireless microphone system is designed for quick setup and seamless operation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP62 OM2 Specifications

  • R62 Receiver: Frequency Range

    522 MHz - 586 MHz

  • R62 Receiver: Bandwidth

    64 MHz

  • R62 Receiver: Compatible Systems

    16 Compatible System Operation

  • R62 Receiver: Switchable Frequencies

    207 Preset Frequencies

  • R62 Receiver: Manual Mode

    2560 frequencies (spaced 25 KHz apart)

  • R62 Receiver: Frequency Response

    45 Hz - 18 kHz

  • R62 Receiver: Signal to Noise Ratio

    >105 dB

  • R62 Receiver: Compander System

    2:1

  • R62 Receiver: Pilot Tone

    32 kHz

  • R62 Receiver: Receiving System

    Dual Tuner, True Diversity

  • R62 Receiver: Signal-to-Noise Ratio

    112 dB at 30 kHz deviation (IEC-weighted)

  • R62 Receiver: Total Harmonic Distortion

    <= 4% (10 kHz deviation at 1 kHz)

  • R62 Receiver: Sensitivity

    5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)

  • R62 Receiver: Intermediate Frequency

    110.6 MHz, 10.7 MHz

  • R62 Receiver: Audio Output (AF=0)

    1/4" 1100 mV (at 1 kHz,)
    10 kHz deviation, 10 k Ohm load
    Balanced: 2200 mV (at 1 kHz,)
    10 kHz deviation, 600 Ohm load

  • R62 Receiver: Output Connectors

    1/4", XLR

  • R62 Receiver: Nominal / Peak Deviation

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • R62 Receiver: Adjacent Channel Rejection

    >65 dB

  • R62 Receiver: Intermodulation Spacing

    >65 dB

  • R62 Receiver: Image Rejection

    >70 dB

  • R62 Receiver: Range

    300' / 91.44m

  • R62 Receiver: Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • H60 Transmitter: RF Power Output

    10 mW, 40 mW

  • H60 Transmitter: Frequency Bandwidth

    64 MHz

  • H60 Transmitter: Gain Controls

    0 dB, -6 dB, -12 dB

  • H60 Transmitter: Input Connector

    No

  • H60 Transmitter: Battery (not included)

    2 AA 1.5 V

  • H60 Transmitter: Current Consumption

    110 mA typical

  • H60 Transmitter: Battery Life

    Approximately 10 hours (depending on battery type and usage)

  • H60 Transmitter:Max Sound Pressure Level

    >140 dB (depending on capsule)

  • OM2 Microphone: Transducer Type

    Dynamic

  • OM2 Microphone: Frequency Response

    50 Hz - 16 kHz

  • OM2 Microphone: Polar Pattern

    Hypercardioid

  • OM2 Microphone: Output Impedance

    290 Ohms

  • OM2 Microphone: Sensitivity

    1.6 mV / Pa at 1k

  • OM2 Microphone: Capsule Technology

    VLM Type B

  • OM2 Microphone: Off-Axis Rejection

    >25 dB

  • OM2 Microphone: Maximum SPL

    =140 dB

  • OM2 Microphone: Connector

    3-pin XLRm

  • OM2 Microphone: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • OM2 Microphone: Materials / Finish

    Zinc Alloy / Black Finish

  • Dimensions

    R62 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
    H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
    OM2 Microphone (Length): 176mm / 6.93"

  • Weight

    R62 Receiver: 1.92lbs / 0.87kg
    H60 Transmitter: 11.0oz / 311.84g (without battery)
    OM2 Microphone: 307g / 10.83oz

About Audix AP62 OM2

With the Performance Series AP62 OM2 Wireless System, you can elevate your audio experience, whether you're a vocalist, musician, performer, or presenter. This professional-grade system, designed by Audix, simplifies the complexities of wireless technology, offering a reliable and versatile solution for all your audio needs.

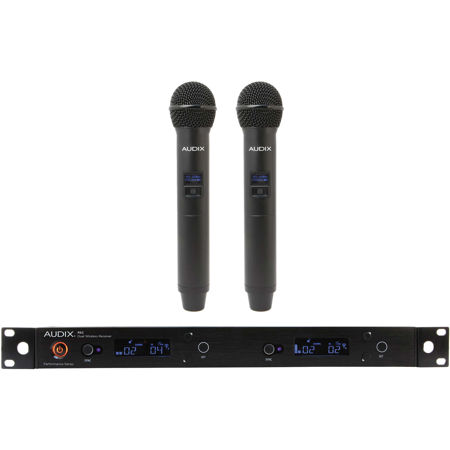

The system includes a dual-channel R62 Receiver, housed within a durable, rack-mountable design. It operates efficiently with a single set of antennas and one power supply, ensuring a seamless audio transmission. The receiver's contemporary design, rugged construction, and intuitive menus make it a standout choice for professionals seeking top-tier audio equipment.

Included in the package are two H60 Handheld Transmitters, each featuring a sleek, slim-line body that is compact, well-balanced, and comfortable to hold. These transmitters boast a 64 MHz wide spectrum, compatible with all Performance Series receivers. Their durable metal housing ensures longevity, while the high-contrast LCD display provides clear visibility of group, channel, and battery indicators. With AF and RF gain control, modular and interchangeable capsule assemblies, and a soft mute switch, these transmitters offer an impressive 10-hour run time on AA batteries.

The system also comes with two OM2 Dynamic Vocal Microphones, meticulously designed, assembled, and tested by Audix in the USA. These microphones offer clear and accurate sound reproduction, resistance to feedback, and the ability to handle very high Sound Pressure Levels (SPL) without distortion. The OM2 microphones feature a tight, uniformly controlled hypercardioid polar pattern, isolating vocals from other on-stage instruments. With a wide frequency range of 50 Hz - 16 kHz, these microphones employ a Very Low Mass (VLM) diaphragm for natural sound and exceptional transient response.

The OM2 microphones are versatile, suitable for live sound, rehearsal rooms, and home studios. They deliver a warm, full sound with slight bass proximity, optimized for small to mid-size PA systems. The microphones are designed with a precision die-cast zinc alloy body, a durable black E-coat finish, a dent-resistant steel mesh grill, and a gold-plated XLR connector, ensuring both performance and durability.

In summary, the Performance Series AP62 OM2 Wireless System is a comprehensive audio solution, offering professional-grade equipment designed for simplicity, reliability, and versatility.

Audix AP62 OM2 Features

  • Professional-grade dual-channel R62 Receiver with intuitive operation and rack-mountable design
  • Two H60 Handheld Transmitters with 64 MHz wide spectrum and 10-hour battery life
  • Includes two OM2 Dynamic Microphones with hypercardioid polar pattern for superior sound isolation
  • OM2 mics feature VLM diaphragm for natural sound and wide frequency range (50 Hz - 16 kHz)
  • Durable construction with metal housing, steel mesh grill, and gold-plated XLR connectors
  • Versatile vocal mic ideal for live performances, rehearsals, and home studio setups

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 300 feet with the Audix system.
  • The handheld microphone system features durable construction, ensuring it withstands rigorous use.
  • Achieve superior sound quality with the OM2 dynamic microphone, ideal for vocals and speech.
  • Benefit from long-lasting battery life, providing up to 10 hours of uninterrupted performance.
  • This easy-to-use wireless microphone system is designed for quick setup and seamless operation.

What's in the box:

  • Audix R61 Receiver
  • 2x H60 Handheld Transmitter
  • 2x OM2 Dynamic Microphone
  • Audix 3 Year Limited Warranty
