Audio-Technica ATW-1302 Specifications

  • Operating Frequencies

    2.4GHz ISM band

  • Dynamic Range

    >109dB (A-weighted), typical

  • Total Harmonic Distortion

    <0.05% typical

  • Operating Range

    60m / 196.85' Open range environment with no interfering signals

  • Operating Temperature Range

    0 to 40 deg. C / 32 to 104 deg. F (Battery performance may be reduced at very low temperatures)

  • Frequency Response

    20Hz to 20kHz (Depending on microphone type)

  • Audio Sampling

    24-bit/ 48kHz

  • Latency

    3.8ms

  • Receiver Unit: Receiving System

    Diversity (frequency/time/space)

  • Receiver Unit: Remote Receiver Connector

    RJ45

  • Receiver Unit: Mounting Thread Insert

    1/4" x 20

  • Receiver: Maximum Output Level

    XLR, balanced: 0dBV 0.25" / 6.35mm, unbalanced: +6dBV

  • Receiver: Power Supply

    100 - 240V AC (50/60Hz) to 12V DC 0.5A power supply switched mode external

  • Receiver: Remote receiver connector

    RJ45

  • Receiver: Link Connector

    RJ12

  • Handheld Transmitter: RF Output Power

    10mW

  • Handheld Transmitter: Spurious Emissions

    Following federal and national regulations

  • Handheld Transmitter: Batteries

    Two 1.5V AA (not included)

  • Handheld Transmitter: Battery Life

    >7 hours (alkaline) Depending on battery type and use pattern

  • Dimensions (W x H x D)

    Receiver Unit: 57 x 19 x 77.6mm / 2.24 x 0.75 x 3.06"
    Receiver: 209.8 x 44 x 169.3mm / 8.26 x 1.73 x 6.67"
    Handheld Transmitter (L x Dia): 254.8 x 50.0mm / 10.03 x 1.97"

  • Weight

    Receiver Unit: 64g / 2.26oz
    Receiver: 940g / 33.16oz
    Handheld Transmitter (without batteries): 280g / 9.88oz

  • UPC Code

    4961310130015

About Audio-Technica ATW-1302

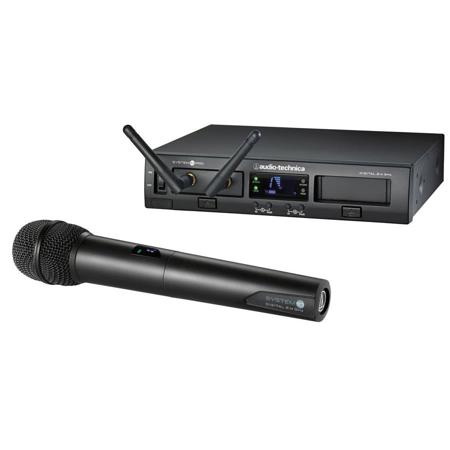

With the Audio-Technica ATW-1302 System 10 PRO Digital Wireless System, you can experience professional, high-quality audio performance. This advanced and innovative system operates interference-free in the 2.4 GHz range, well beyond the reach of TV bands, ensuring clear, natural sound quality.

This durable system includes the ATW-RC13 Receiver, ATW-RU13 Receiver Unit, and ATW-T1002 Microphone/Transmitter, all designed for robust use in live performances, recording studios, and broadcasting environments. The system's half-rack chassis is built to house two receiver units, which can be operated locally or remotely mounted up to 328 feet away via an Ethernet cable for maximum versatility.

The ATW-1302 System 10 PRO is capable of linking up to five chassis or 10 receiver units using the included RJ12 cable. This creates a stable, multichannel system that can simultaneously use up to 10 channels, making it an ideal choice for complex audio setups.

The System 10 PRO Rack-Mount stands out with its 24-bit operation, easy setup, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity dynamically allocates two frequencies for the signal, ensuring interference-free communication. Time Diversity maximizes immunity to multipath interference by sending the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

Both the receiver chassis and transmitters feature easy-to-read displays, simplifying operation and setup. The ATW-1302 System 10 PRO Digital Wireless System from Audio-Technica, a reputable brand known for high-quality audio equipment, is a reliable choice for professional audio applications.

Audio-Technica ATW-1302 Features

  • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4GHz range - completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time & space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Operates interference-free in the 2.4 GHz range, ensuring clear, natural sound quality
  • Includes ATW-RC13 Receiver, ATW-RU13 Receiver Unit, and ATW-T1002 Microphone/Transmitter
  • Capable of linking up to five chassis or 10 receiver units for a stable, multichannel system

What's in the box:

  • Audio-Technica ATW-RC13 Rack-Mount Digital Wireless Receiver
  • ATW-RU13 Receiver Unit
  • ATW-T1002 Handheld Unidirectional Microphone/Transmitter
  • 2x Antennas
  • AT8690 RU13 Holder
  • Transmitter Screwdriver
  • AT8456a Quiet-Flex Stand Clamp
  • Power Supply
  • AC Adapter
  • Link Cable
  • Rack-Mount Adapters
  • Joining Plate
  • Rubber Feet
  • Audio-Technica 2 Year Limited Warranty
