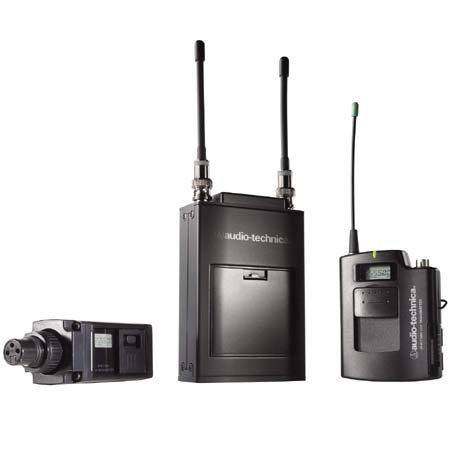

Audio-Technica ATW-1823D Dual Wireless Combo System with ATW-R1820 Dual Receiver, ATW-1801 Bodypack, ATW-T1802 Plug-In Transmitters & Microphone

SKU: AUATW1823D

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Specification about this item

Related Articles & Videos

About Audio-Technica ATW1823D

The Audio-Technica ATW-1823D is a Dual Wireless Combo System. With UHF reception (996 frequencies user-selectable in 25 kHz steps), Audio-Technica's new 1800 Series camera-mount wireless microphone systems provide extremely flexible, professional and easy-to-use portable wireless solutions. The 1800 Series is available in dual-channel and single-channel systems.

For simultaneous operation of two microphones, dual-channel 1800 wireless systems include the ATW-R1820 dual receiver with two completely independent receiver channels in a single unit. Dual balanced outputs enable signals to be mixed, or independently assigned to each output. Independent audio level controls provide flexible audio mixing and monitoring possibilities.

1800 Series wireless systems come equipped with a choice of plug-on and body-pack transmitters. The ATW-T1801 UniPak body-pack transmitters feature a professional locking 4-pin connector compatible with all Audio-Technica Wireless Essentials microphones. The ATW-T1802 plug-on transmitters feature a locking XLR connector for adapting dynamic and condenser microphones. Both transmitters offer selectable high and low transmission modes to conserve battery life/maximize power.

Additional 1800 Series features include automatic frequency scanning, Tone Lock squelch, back-lit LCD, soft-touch buttons, headphone monitor output with independent level control and durable metal construction.

Audio-Technica ATW1823D Features

  • Two completely independent receiver channels in a single unit, for simultaneous operation of two microphones (dual-channel systems)
  • Compact receiver is easy to mount on a camera
  • UHF reception with 996 frequencies selectable in 25 kHz steps
  • Automatic frequency scanning for easy selection of open channels
  • Tone Lock squelch system eliminates interference when transmitter is off
  • Two independent balanced outputs (dual-channel systems)
  • Headphone monitor output with independent level control
  • Battery fuel-level indicators on transmitters and receiver
  • Soft-touch controls for easy frequency selection
  • True Diversity operation for resistance to multi-path interference and dropouts
  • LCD frequency and battery status display with backlight
  • Antenna and AF Peak LED indicators
  • Dual-channel receiver can operate in single-receiver mode to extend battery life when only one audio channel is in use (dual-channel systems)
  • Transmitters operate in low or high transmission modes to conserve battery life/maximize power
  • Easy, user-friendly operation
  • Clear, natural sound quality
  • Powered by AA batteries
  • System components of the 1800 Series and 3000 Series Wireless Systems can be used interchangeably
