Audio-Technica AT-XP5/H Headshell/Cartridge Combo Kit
See all Audio-Technica items

Audio-Technica AT-XP5/H Headshell/Cartridge Combo Kit

SKU: AUATXP5H
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Audio-Technica VM510CB: Picture 1 regular
Audio-Technica VM510CB Conical Bonded Stereo Dual Moving Magnet Cartridge
$119.00
Audio-Technica VM540ML: Picture 1 regular
Audio-Technica VM540ML MicroLine Nude Stereo Dual Moving Magnet Cartridge
$279.00
Audio-Technica VM740ML: Picture 1 regular
Audio-Technica VM740ML MicroLine Nude Stereo Dual Moving Magnet Cartridge
$349.00
Audio-Technica VM760SLC: Picture 1 regular
Audio-Technica VM760SLC Special Line Contact Nude Dual Moving Magnet Cartridge
$649.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Audio-Technica AT-XP5/H Specifications

  • Frequency Response

    20-18000 Hz

  • Channel Separation

    20 (dB at 1 kHz)

  • Vertical Tracking Force

    2.0-4.0g (3.0g standard)

  • Stylus Construction

    Bonded round shank

  • Recommended Load Impedance

    47000 Ohms

  • Output

    5.5 mV (1 kHz, 5 cm/sec.)

  • Channel Balance

    2.0 dB (1 kHz)

  • Stylus Shape

    0.3 x 0.7 mil elliptical

  • Cantilever

    Carbon fiber-reinforced ABS

  • Mount

    Half-inch

  • Replacement Stylus

    ATN-XP5

  • Coil impedance

    6.7k Ohms (1 kHz)

  • DC resistance

    990 Ohms

  • Recommended load capacitance

    100 to 200 pF

  • Vertical tracking angle

    20 deg.

  • Dimensions (HxWxD)

    Cartridge: 17.2 x 17.8 x 28.3mm (0.68 x 0.70 x 1.11")
    Cartridge & Headshell: 21.2 x 21.4 x 62.4mm (0.83 x 0.84 x 2.46")

  • Weight

    Cartridge: 6.2g (0.22 oz)
    Cartridge & Headshell: 15.6g (0.55 oz)

  • UPC Code

    4961310146566

1 Accessories for Audio-Technica AT-XP5/H Headshell/Cartridge Combo Kit

  • All Accessories (1)
  • Laptop Stand (1)
H&A Single-Tier Multi-Purpose DJ Laptop Stand
H&A Single-Tier Multi-Purpose DJ Laptop Stand
$17.99

About Audio-Technica AT-XP5/H

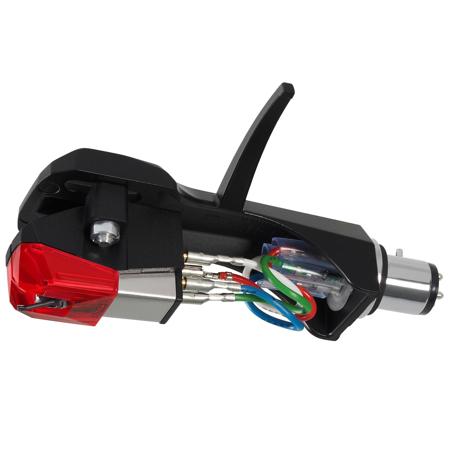

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

Audio-Technica AT-XP5/H Features

  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • Universal 1/2"-mount headshell for 4-pin turntable cartridges

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Audio-Technica AT-XP5 DJ Cartridge
  • AT-HS6 Headshell
  • 2x 11mm Installation Screws
  • 2x 8mm Installation Screws
  • 2x Washers
  • 2x Nuts
  • Nonmagnetic Screwdriver
  • Audio-Technica 1 Year Limited Warranty
