Audio Developments AD071 Camera Mixer with V-Lok Mount, 1x Mic/Line and 2x Line Inputs, 20Hz-20kHz Frequency Response

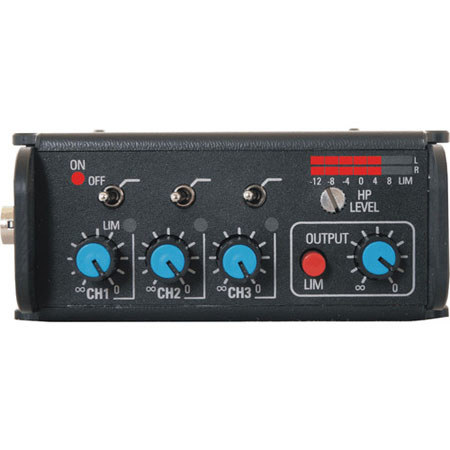

The Audio Developments AD071 Camera Mixer with V-Lok Mount (1x Mic/Line and 2x Line Inputs) is an ideal solution for field mixing, boom pole operation and camera mounted applications. Its portable yet rugged chassis features a single balanced line and microphone level switchable XLR connector. The output section features a pair of balanced XLRs that are also microphone and line level switchable. The mixer is capable of producing 48V phantom power for condenser microphones and its built in limiter maintains distortion from peaking audio signals. The AD071 may be powered via an external power supply or optional PP3 9V battery pack.

Mic Inputs
One electronically balanced XLR connector with 48V phantom power, high-pass filter, gain control and mic or line input selection.

Line Inputs
Electronically balanced with gain/level control.

Routing
Each input features left and right routing toggle switches.

Outputs
Balanced XLR type connectors and stereo rotary level control. Microphone and line level switchable. A secondary 1/8" (3.5mm) mini output carries microphone level signal.

Limiters
A push-button switch introduces the output limiters into circuit and two LEDs indicate the onset of limiting.

Line-up Oscillator
1kHz tone injected into outputs.

Monitoring
1/8" (3.5mm) headphone output jack with a push-button switch selecting the direct or return signals. The return signals are brought in on a 1/8" (3.5mm) stereo jack.

Metering
Two LED ladders indicate output level.

Powering
Either external power, via a 4 pin Hirose connector or a separate PP3 9V battery pack can be used to power the mixer. An LED indicates power present and flashes when the voltage is too low.
