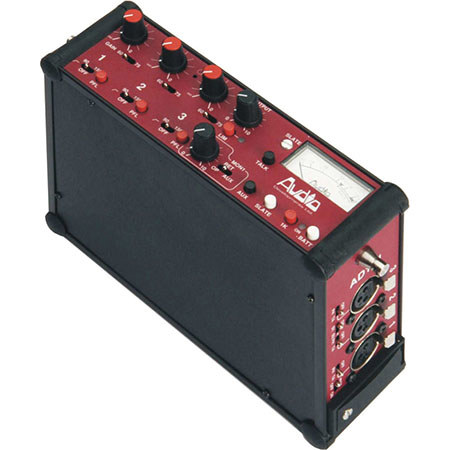

Audio Developments AD161 3 Input Mono ENG Mixer
See all Audio Developments items

Audio Developments AD161 3 Input Mono ENG Mixer, 20Hz-20kHz Frequency Response

SKU: AUD94161100

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Audio Developments AD161 Specifications

  • Maximum Gain

    75 dB

  • Maximum Input Levels

    3dBu

  • Input Impedance

    3kOhms

  • Mic Powering

    48V Phantom 12V Tonader

  • Frequency Response

    1dB 20Hz to 20kHz

  • High-Pass Filter

    3dB at 90Hz & 150Hz
    12dB/Octave

  • Harmonic Distortion

    <0.05% at 1kHz 600R load
    0dBm output
    <0.2% 50Hz to 20kHz +15dBu

  • Crosstalk

    <-65dB 40Hz to 15 kHz

  • Maximum Output Level

    +24dBm into 600R
    50dB Attenuation at Mic Level

  • Output Impedance

    <60R Transformer Balanced

  • Noise

    <-125dB Mic 20Hz to 20kHz

  • Powering Internal

    6 AA size Drycells

  • Power Consumption

    80mA without powered mics

  • Dimensions

    180 x 146 x 58mm / 7.08 x 5.74 x 2.28" (excluding knobs)

  • Weight

    1.15kg / 2.53lbs (Including batteries)

About Audio Developments AD161

The Audio Developments AD161 3 Input Mono ENG Mixer has been designed to meet the needs of today's news gatherers. For speed and efficiency crews have been reduced to the bare essentials and so cameras, lighting and sound equipment need to be quick to set up, reliable to use and produce the first class quality sound and pictures viewers have come to expect. The AD161 has all the facilities needed to fulfill this demanding role. It is small, light, extremely rugged and has such a straightforward layout of controls that even a newcomer to audio will instinctively become familiar with all the functions in minutes.

Audio Developments AD161 Features

  • Auxiliary Line Input - Electronically balanced with Type A jack connector, level control and routable to Main Output and/or monitor
  • Output - Transformer balanced with XLR Type connector, rotary gain control, Hi/Low output level switch
  • Monitoring - Headphones on Type A Jack with switch to select output, line input or return
  • Monitoring - Metering with VU, PPM Scales
  • Monitoring - A second monitor output allows another to receive a signal feed, which also includes a private TALK facility
  • Line Up Oscillator - 1k Tone into Output
  • Limiter - Incorporated in the main output (An IN/OUT switch introduces the Limiter into circuit and an LED indicates when limiting is taking place)
  • Battery Test - Momentary action push switch shows battery status on meter
  • Talkback - There is an electret microphone switchable to main output and external connector (boom man) operated by push switches
  • 6 Pin Tuchel Connector - Output power line, line output and line input for quick connection to recording medium
  • On Indicator - A red LED indicates the mixer is switched ON and flashes to show low battery voltage
  • Powering - From 6x AA internal batteries or a 10V to 15V external source
