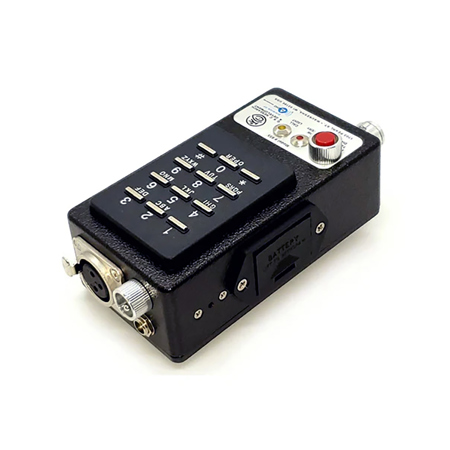

Audio Implements Model #655B Monitor Amplifier with Sliding Battery Drawer
See all Audio Implements items

Audio Implements Model #655B Monitor Amplifier with Sliding Battery Drawer

SKU: AI417 MFR: 417
Be the first to review this itemAsk a Question
$699.00
OR
$117/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the durable die-cast aluminum monitor amplifier.
  • Effortlessly connect via XLR-3 or RJ-11 jack for versatile audio input options.
  • Enjoy reliable performance with flexible power options: 9V battery or AC adapter.
  • Achieve optimal sound levels using the adjustable gain control for precise audio output.
  • Perfect for professional audio setups, ensuring high-quality sound monitoring.
  • Benefit from Audio Implements' quality and a 1-year limited warranty for peace of mind.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Audio Implements Model #655B Specifications

  • Color

    Black

  • Material

    Die cast aluminum

  • Input

    600 ohms, female XLR-3 connector wet or dry input or telephone

  • Jack Input

    Separate RJ-11 Jack for telephone line input

  • Power Requirements

    9V alkaline battery
    Regulated external AC Adapter

  • Current

    Total quiescent current: 10mA

  • Adjustable gain control

    Line output to max: +2db

  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    9-volt

  • Battery Quantity

    1

  • Country of Origin

    China

About Audio Implements Model #655B

Same as the 655 Monitor Amplifier, but now has a sliding battery drawer! The dialer has the capability of storing 9 telephone numbers, a low battery light, built in microphone and defeatable ringer for incoming calls. To operate on the telephone line, use the RJ-11or 3pin XLR jack on the box. The XLR-3 on this model is for all audio input, wet or dry . A 25' telephone cord is included (MAT-2 Part #341).

Audio Implements Model #655B Features

  • Integrated microphone with a switchable ringer for incoming calls
  • Dedicated RJ-11 jack for telephone line input
  • 600-ohm balanced input with female XLR-3 connector, supporting wet/dry or telephone input
  • Operates on a 9V alkaline battery or a regulated external AC adapter
  • Low battery indicator for timely replacement
  • Circuit protected against reverse polarity using diodes
  • Transformer includes thermal protection for added safety
  • Low quiescent current consumption of 10 mA
  • Adjustable line output gain up to +2 dB
  • Durable die-cast aluminum enclosure with black textured finish
  • Keypad with memory for 25 numbers, each storing up to 30 digits

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear audio with the durable die-cast aluminum monitor amplifier.
  • Effortlessly connect via XLR-3 or RJ-11 jack for versatile audio input options.
  • Enjoy reliable performance with flexible power options: 9V battery or AC adapter.
  • Achieve optimal sound levels using the adjustable gain control for precise audio output.
  • Perfect for professional audio setups, ensuring high-quality sound monitoring.
  • Benefit from Audio Implements' quality and a 1-year limited warranty for peace of mind.

What's in the box:

  • Audio Implements Model #655B Monitor Amplifier with Sliding Battery Drawer
  • 25' Telephone Cable
  • Audio Implements 1 Year Limited Warranty
