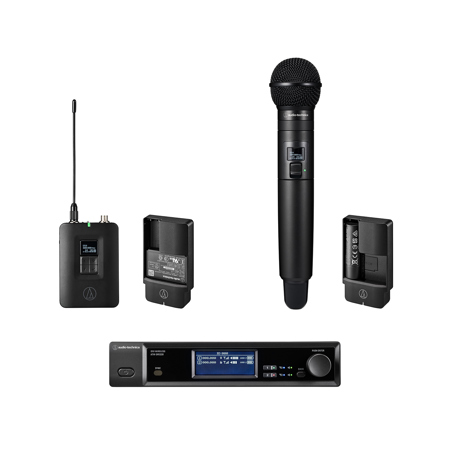

Audio-Technica D50 2-Channel Digital UHF Wireless Handheld Microphone System with Bodypack Transmitter

This D50 2-channel body-pack system features the Audio-Technica LINK-enabled 2-channel receiver, an ATW-DT3202/C510 handheld transmitter, and an ATW-DT3201 compact body-pack transmitter.

The half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system's HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD a feature that can be especially useful in the congested RF environments of large cities.

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger.

The ATW-DT3201 is a compact body-pack transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows switching between two outputs.


- D50 2-Channel Receiver -
The ATW-DR3220LK is an Audio-Technica LINK-enabled 2-channel receiver for the D50 digital UHF wireless system. This half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system's HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD - a feature that can be especially useful in the congested RF environments of large cities.


- D50 Bodypack Transmitter -
The ATW-DT3201 is a compact body-pack transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output - providing discrete live communications with fellow performers or audio engineers.


- D50 Handheld Transmitter -
The ATW-DT3202/C510 is a rugged, handheld transmitter for use with the D50 digital UHF wireless system. The transmitter comes equipped with Audio-Technica's ATW-C510 cardioid dynamic capsule, a workhorse trusted by professionals to capture every nuance of the human voice. The transmitter also works with a wide variety of additional capsules, including A-T's legendary Artist Elite ATW-C4100 cardioid dynamic, ATW-C6100 hypercardioid dynamic, ATW-C3300 and ATW-C5400 cardioid condensers as well as the ATW-C710 cardioid condenser. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows switching between multiple outputs - providing discrete live communications with fellow performers or audio engineers.


- ATW-CHGA6 Battery Charger -
The ATW-CHGA6 battery charger is used to charge the lithium-ion batteries that power D50 wireless system transmitters. The charger can be inserted into an ATW-CHG6 charging station (sold separately) or be powered separately by a USB-C cable.
