Audio-Technica D50 Series ATW-DT3207 Desk Stand Transmitter

SKU: ATWDT3207DF2 MFR: ATW-DT3207DF2
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this high-performance Audio-Technica desk stand transmitter.
  • Enjoy extended use with the included rechargeable Li-ion battery, offering up to 9.5 hours of power.
  • The durable build ensures reliable performance for all your professional audio needs.
  • Easily integrate your gooseneck microphone for versatile and clear communication.
  • Benefit from excellent value with this essential Audio-Technica D50 Desk Stand TX.
  • Its compact design makes it perfect for any workspace, providing a clean and organized setup.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio-Technica ATW-DT3207 Specifications

Desk Stand Transmitter

Desk Stand Transmitter

Jump to...
  • Color

    Black

  • RF Output Power

    Standard: 20 mW, 10 mW, 1 mW
    HD mode: 1 mW

  • Microphone

    Gooseneck microphone supported

  • High-pass Filter

    120 Hz, 12 dB/octave

  • Battery

    Lithium-ion battery LI-220 (included)

  • Battery Life

    When using a gooseneck microphone with no LED: Approx. 9.5 hours (10 mW)
    When using a gooseneck microphone with an LED: Approx. 7.5 hours (10 mW)

  • Operating Temperature Range

    23 Degree F to 104 Degree F (-5 Degree C to +40 Degree C)

  • Storage Temperature Range

    -4 Degree F to 131 Degree F (-20 Degree C to 55 Degree C)

  • USB Charging Connector

    USB Type-C (USB 2.0)

  • Dimensions (W x D x H)

    3.56 x 5.1 x 2.1" (90.5 x 129.4 x 52.1mm)

  • Weight

    17 oz (495g) (with included battery)

Battery

Jump to...
  • Battery Chemistry

    Lithium Ion

  • Capacity

    2200mAh

  • Voltage

    3.6V

  • Watt Hours

    7.92Wh

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

  • Dimensions (W x D x H)

    1.6 x 2.2 x 0.53" (39.7 x 56.7 x 13.5mm)

  • Weight

    1.7 oz (49g)

General

Jump to...
  • Country of Origin

    Japan

  • UPC Code

    4961310166953

About Audio-Technica ATW-DT3207

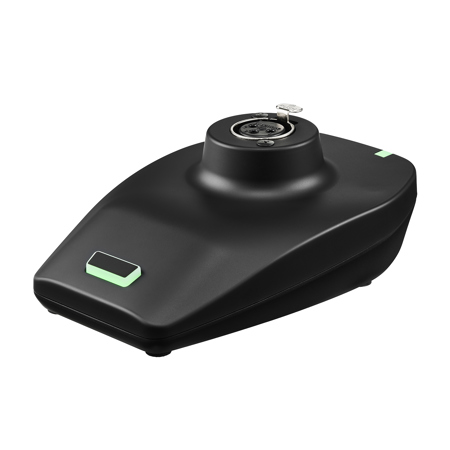

The ATW-DT3207 is a desk stand transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a 3-pin XLR-F connector that provides 24V phantom power to compatible quick-mount gooseneck microphones, such as the family of ES925XLR mics (sold separately).

The transmitter's talk button can be set to three different operation modes (toggle mute on/off, press to mute, press to talk). The unit also features two LED indicators that can be set to illuminate in seven different colors and three different patterns (standard mode and two conference modes).

The ATW-DT3207 is powered by a built-in (replaceable) lithium-ion battery, providing best-in-class battery life. The battery can be charged in the ATW-CHG7 four-bay charging station (sold separately) or via USB-C connection, which allows the transmitter to be used while charging.

Audio-Technica ATW-DT3207 Features

  • Desk stand transmitter for the D50 digital UHF wireless system
  • Equipped with a 3-pin XLR-F connector that provides 24V phantom power to compatible quick-mount gooseneck microphones, such as the family of ES925XLR mics (sold separately)
  • Talk button can be set to three different operation modes (toggle mute on/off, press to mute, press to talk)
  • Two LEDs on the transmitter can be set to illuminate in seven different colors and three different patterns (standard mode and two conference modes)
  • Seven different color rings can be attached to the base of a microphone to color code each channel
  • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG7 four-bay charging station (sold separately) or via USB-C connection

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior audio clarity with this high-performance Audio-Technica desk stand transmitter.
  • Enjoy extended use with the included rechargeable Li-ion battery, offering up to 9.5 hours of power.
  • The durable build ensures reliable performance for all your professional audio needs.
  • Easily integrate your gooseneck microphone for versatile and clear communication.
  • Benefit from excellent value with this essential Audio-Technica D50 Desk Stand TX.
  • Its compact design makes it perfect for any workspace, providing a clean and organized setup.

What's in the box:

  • Audio-Technica D50 Series ATW-DT3207 Desk Stand Transmitter
  • ATW-TI70 Color Ring Indicator Kit
  • Audio-Technica 2 Year Limited Warranty
