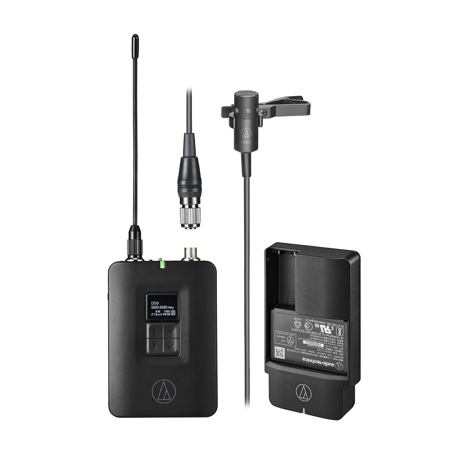

Audio-Technica D50 Series Digital UHF Wireless Bodypack Transmitter with Lavalier Microphone and Charger

SKU: ATWDT3201831 MFR: ATW-DT3201831DF2C
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the D50 wireless transmitter and AT831cH lavalier microphone.
  • Enjoy up to 12 hours of reliable performance, perfect for long presentations or events.
  • The included charger and rechargeable battery ensure your wireless system is always ready to go.
  • Benefit from a durable build, designed for consistent, professional use in various settings.
  • Achieve seamless integration with your existing audio setup thanks to its innovative design.
  • Capture every detail with the high-quality condenser lavalier microphone for superior sound.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio-Technica D50 Bodypack TXCL Specifications

Bodypack Transmitter

Bodypack Transmitter

Jump to...
  • RF Output Power

    Standard: 20 mW, 10 mW, 1 mW
    HD mode: 1 mW

  • Input Connection

    Four pin locking connector
    Pin 1: GND
    Pin 2: INST. INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +10V

  • High-pass Filter

    120 Hz, 12 dB/octave

  • Battery

    Lithium-ion battery LI-220 (included)

  • Battery Life

    12 hours (10 mW)

  • Operating Temperature Range

    23 Degree F to 113 Degree F (-5 Degree C to +45 Degree C)

  • Storage Temperature Range

    -4 Degree F to 131 Degree F (-20 Degree C to 55 Degree C)

  • Dimensions (W x D x H)

    2.2 x 3.1 x 0.94" (56 x 80 x 24mm)

  • Weight

    6.1 oz (172g) (with included battery)

Lavalier Microphone

Jump to...
  • Element

    Condenser

  • Polar Pattern

    Cardioid

  • Included Tone/Pattern Caps

    No

  • Frequency Response

    40 Hz to 16 kHz

  • Maximum SPL

    141 dB

  • Sensitivity

    42 dB

  • Dynamic Range

    112 dB (A-Weighted)

  • Analog Output Connector

    1x Hirose cH-Style 4-Pin Male

  • Cable Length

    55" (1.4m)

  • Environmental Resistance

    No

  • Dimensions (Dia. x L)

    0.4 x 0.98" (10.2 x 25mm)

  • Weight

    0.1 oz (2.84g)

Battery Charger

Jump to...
  • Power supply

    USB Type-C, ATW-CHG6

  • Charging Output

    USB Type-C: 4.2 V 0.5 A
    ATW-CHG6:
    When charging one to four transmitters: 4.2 V 1.2 A

  • Charging Time

    USB Type-C: Approx. 5 hours

  • Operating temperature range

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage temperature range

    -4 Degree F to 131 Degree F (-20 Degree C to 55 Degree C)

  • Dimensions (W x D x H)

    2.5 x 4.2 x 0.98" (63.8 x 106.8 x 25mm)

  • Weight

    2.3 oz (64g)

Battery

Jump to...
  • Battery Chemistry

    Lithium Ion

  • Capacity

    2200mAh

  • Voltage

    3.6V

  • Watt Hours

    7.92Wh

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

  • Dimensions (W x D x H)

    1.6 x 2.2 x 0.53" (39.7 x 56.7 x 13.5mm)

  • Weight

    1.7 oz (49g)

General

Jump to...
  • Country of Origin

    Japan

  • UPC Code

    042005216772

About Audio-Technica D50 Bodypack TXCL

- D50 Bodypack Transmitter -
The ATW-DT3201 is a compact body-pack transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output - providing discrete live communications with fellow performers or audio engineers.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger.

The AT831cH wireless clip-on lavalier mic provides crisp, full-sounding voice pickup, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.


- AT831 Lavalier Microphone -
This clip-on lavalier mic provides crisp, full-sounding voice pickup. It also excels as an instrument mic, especially for pickup of acoustic guitar. The mic is ideal for higher SPL applications, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.

55" (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.


- ATW-CHGA6 Battery Charger -
The ATW-CHGA6 battery charger is used to charge the lithium-ion batteries that power D50 wireless system transmitters. The charger can be inserted into an ATW-CHG6 charging station (sold separately) or be powered separately by a USB-C cable.

Audio-Technica D50 Bodypack TXCL Features

  • D50 Bodypack Transmitter
  • Compact body-pack transmitter for the D50 digital UHF wireless system
  • Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector
  • Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs
  • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the or ATW-CHGA6 battery charger
  • Seven-color LED, along with seven physical color rings, make it easy to color code each channel
  • IR sync functionality enables easy synchronization with receiver
  • Best-in-class, all-metal construction
  • AT831 Lavalier Microphone
  • Provides crisp, full-sounding voice and instrument pickup
  • Excellent gain before feedback and suppression of background noise
  • ATW-CHGA6 Battery Charger
  • Charger for lithium-ion batteries used in D50 wireless system transmitters

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with the D50 wireless transmitter and AT831cH lavalier microphone.
  • Enjoy up to 12 hours of reliable performance, perfect for long presentations or events.
  • The included charger and rechargeable battery ensure your wireless system is always ready to go.
  • Benefit from a durable build, designed for consistent, professional use in various settings.
  • Achieve seamless integration with your existing audio setup thanks to its innovative design.
  • Capture every detail with the high-quality condenser lavalier microphone for superior sound.

What's in the box:

  • Audio-Technica ATW-DT3201 Bodypack Transmitter
  • AT831cH Wireless Clip-On Lavalier Microphone
  • ATW-TI10 Color Ring Indicator Set
  • Windscreen
  • Clothing Clip
  • Audio-Technica 2 Year Limited Warranty
