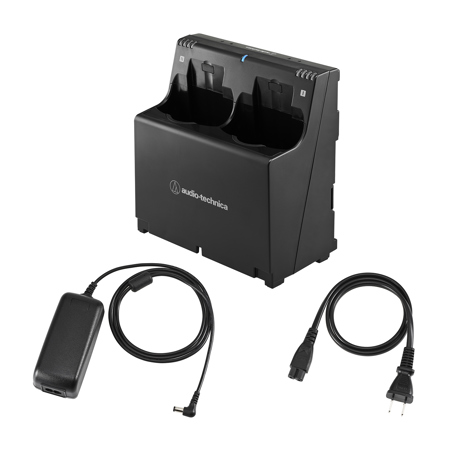

Audio-Technica ATW-CHG6 Two-Bay Charging Station with Power Supply for D50 Series Transmitters

SKU: ATWCHG6AD MFR: ATW-CHG6AD
Earn VIP Reward Points

Key Features

  • Efficiently power your Audio-Technica wireless systems with this reliable charging station.
  • Enjoy seamless compatibility, charging both handheld and bodypack transmitters simultaneously.
  • Experience high performance with rapid charging times, keeping your gear ready for action.
  • Its durable build ensures longevity, making it a great value for professional use.
  • The easy to use design simplifies charging, perfect for busy production environments.
  • Trust in the reliable brand of Audio-Technica for all your charging needs.
See More Product Details
Temporarily On Backorder?Expected Availability: 08/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio-Technica ATW-CHG6 Specifications

  • Color

    Black

  • Power supply

    12V DC 3.0A

  • Charging output

    AC adapter:
    When charging one to four transmitters: 5V 1.1A

    PoE+:
    When charging one to two transmitters: 5V 1.1A

    Energy-saving mode: 12 V 0.2 A

  • Maximum power consumption

    When charging two transmitters:
    AC adapter: 15 W (51 Btu/h)
    PoE+: 16 W (55 Btu/h)

  • Charging time

    AC adapter:
    When charging one to four transmitters:
    ATW-DT3201 (LI-220): Approx. 2 hours 30 minutes
    ATW-DT3202 (LI-320): Approx. 3 hours 50 minutes

    PoE+:
    When charging one to two transmitters:
    ATW-DT3201 (LI-220): Approx. 2 hours 30 minutes
    ATW-DT3202 (LI-320): Approx. 3 hours 50 minutes

    Energy-saving mode:
    ATW-DT3201 (LI-220): Approx. 5 hours
    ATW-DT3202 (LI-320): Approx. 7 hours 10 minutes

  • Network

    100 Mbps

  • Operating temperature range

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage temperature range

    -4 Degree F to 131 Degree F (-20 Degree C to 55 Degree C)

  • Cooling method

    Fan-assisted air cooling

  • Airflow Direction

    Front intake / Rear exhaust

  • Country of Origin

    Japan

  • Dimensions (W x D x H)

    5.7 x 3.1 x 6.1" (145.6 x 78.3 x 154mm)

  • Weight

    24 oz (678g)

  • UPC Code

    042005216857

About Audio-Technica ATW-CHG6

The ATW-CHG6 two-bay charging station is used to charge D50 wireless system body-pack (ATW-DT3201) and handheld (ATW-DT3202) transmitters. The charger can also accept the ATW-CHGA6 single battery charger. Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+. Indicator lamps on the front of the station allow users to easily monitor charging status and battery level, which can also be viewed in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.

Charging stations are designed to mount vertically or horizontally on a rack, wall, or other location. Alternatively, up to three ATW-CHG6 charging stations can be installed in a single 2U rack space by using the AT8620 rack-mount tray (sold separately).

Audio-Technica ATW-CHG6 Features

  • Two-bay charging station for charging D50 wireless system body-pack and handheld transmitters
  • Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+
  • Charging status and battery level can be monitored via the station's LED indicators or in Audio-Technica's Wireless Manager
  • Two microphone hangers are included for convenient lavalier mic storage
  • Transmitter firmware can be updated while transmitters are docked in the charging station
  • Charging station can be mounted vertically or horizontally

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Efficiently power your Audio-Technica wireless systems with this reliable charging station.
  • Enjoy seamless compatibility, charging both handheld and bodypack transmitters simultaneously.
  • Experience high performance with rapid charging times, keeping your gear ready for action.
  • Its durable build ensures longevity, making it a great value for professional use.
  • The easy to use design simplifies charging, perfect for busy production environments.
  • Trust in the reliable brand of Audio-Technica for all your charging needs.

What's in the box:

  • Audio-Technica ATW-CHG6 Two-Bay Charging Station
  • Mounting Plate
  • 2x Lavalier Mic Hangers
  • Link Cables
  • Link Plate Screws
  • Power Supply
  • Audio-Technica 2 Year Limited Warranty
