17% Off

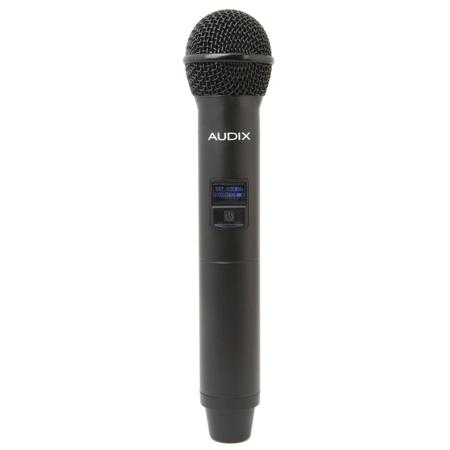

Audix H60 64MHz Handheld Vocal Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule, Frequency Range: 522 to 586MHz

SKU: AUH60OM5 MFR: H60OM5
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the OM5 hypercardioid dynamic capsule microphone.
  • Achieve reliable wireless performance with a wide 522 to 586MHz frequency range.
  • Enjoy extended use with up to 14 hours of battery life using just 2 AA batteries.
  • Easily adjust gain with 0 dB, -6 dB, and -12 dB controls on this wireless transmitter.
  • Rugged zinc alloy build ensures durability for stage performances and touring use.
  • Perfect vocal clarity with excellent off-axis rejection, minimizing background noise.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix H60 OM5 Specifications

Frequency Bandwidth

Frequency Bandwidth

Jump to...
  • Frequency Bandwidth

    522 to 586MHz

Transmitter

Jump to...
  • RF Power Output

    10 mW, 40 mW

  • Frequency Bandwidth

    64 MHz

  • Gain Controls

    0 dB, -6 dB, -12 dB

  • Batteries Included

    2 AA 1.5 V

  • Current Consumption

    110 mA typical

  • Battery Life

    14 hours

Capsule

Jump to...
  • Type

    Dynamic

  • Polar Pattern

    Hypercardioid

  • Frequency Response

    48 Hz - 19 kHz

  • Impedance

    200Ohms

  • Sensitivity

    2 mV / Pa at 1k

  • Capsule Technology

    VLM Type C

  • Off-Axis Rejection

    >30 dB

  • Maximum SPL

    >=144dB

  • Power Requirements

    No

  • Connector

    3-pin XLRm

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • Materials/Finish

    Zinc Alloy / Black Finish

  • Length

    176mm (6.93")

  • Dimensions (Dia.xL)

    Transmitter: 2.1 x 10.43" (5.33 x 26.49cm)

  • Weight

    Transmitter: 11.0 oz (311.84g) (without battery)
    Capsule: 330g (11.64 oz)

  • UPC Code

    687471881040

About Audix H60 OM5

Where professional sound quality meets exceptional design, the H60 64MHz Handheld Vocal Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule stands out. This high-quality, durable microphone transmitter is designed with a slim, well-balanced body, making it not only portable but also comfortable to hold during extended performances.

The H60 is versatile, compatible with both dynamic (OM Series) and condenser microphones (VX5), making it a reliable choice for a wide range of audio applications. The OM5 capsule, meticulously designed, assembled, and tested by Audix in the USA, is renowned for its clarity and resistance to feedback. It can handle high Sound Pressure Levels (SPL) in excess of 144 dB without distortion, ensuring clear, undistorted sound even in the loudest environments.

The OM5 capsule is characterized by a tightly controlled hypercardioid polar pattern, which isolates vocals from other on-stage sounds, enhancing the clarity and quality of the vocal performance. With a wide frequency range of 48 Hz - 19 kHz, the OM5 employs a Very Low Mass (VLM) diaphragm for natural response, accurate sound reproduction, and exceptional transient response.

The OM5 is designed to reduce boominess and handling noise with natural attenuation at 120 Hz. Its mid-range is tailored for presence, allowing the vocalist to be more easily heard in both the mains and the monitors. This microphone transmitter is not only comfortable to hold but also built to last, with a precision die-cast zinc alloy body, a durable black E-coat finish, a dent-resistant steel mesh grill, and a gold-plated XLR connector.

Whether you're a lead or backing vocalist, recording live or in a home studio, or playing an instrument like sax, brass, guitar, dobro, flute, or drums, the H60 64MHz Handheld Vocal Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule is a versatile and reliable choice for all your audio needs.

Audix H60 OM5 Features

  • H60 Handheld Transmitter:
  • 64 MHz Wide spectrum transmitter
  • AF and RF gain control
  • 10 mW and 40 mW Selectable RF power
  • Metal housing / modular capsule design
  • 14 Hour run time - AA batteries
  • High contrast LCD display with group-channel-battery indicators
  • Soft mute switch
  • OM5 Capsule:
  • Concert level, professional vocal mic for live sound, broadcast and studio
  • Very tight pattern control, exceptional clarity for premium PA systems
  • Clear, accurate sound with slight mid-range boost
  • Allows vocals to cut through the stage mix
  • Extreme off-axis rejection provides excellent isolation on stage
  • VLM Capsule
  • Designed, assembled & tested in the USA

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the OM5 hypercardioid dynamic capsule microphone.
  • Achieve reliable wireless performance with a wide 522 to 586MHz frequency range.
  • Enjoy extended use with up to 14 hours of battery life using just 2 AA batteries.
  • Easily adjust gain with 0 dB, -6 dB, and -12 dB controls on this wireless transmitter.
  • Rugged zinc alloy build ensures durability for stage performances and touring use.
  • Perfect vocal clarity with excellent off-axis rejection, minimizing background noise.

What's in the box:

  • Audix H60 64MHz Handheld Vocal Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule
  • 2x AA Batteries
  • Mic Clip
  • Pouch
  • Audix 1 Year Limited Warranty
