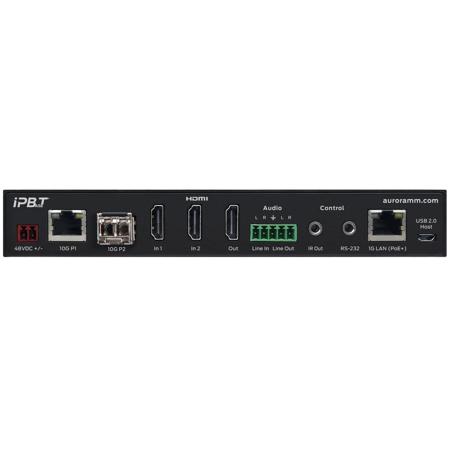

Aurora Multimedia IPX-TC3 4K 10Gbps Copper & Fiber HDMI AV-Over-IP Transceiver Box

The IPX-TC3 provides one of the most advanced IP Streaming solutions on the market utilizing Aurora's IPBaseT technology, which synergizes various IP/AV standards to work together as one. It is the industry's first 4K2K transceiver with zero compression and latency based on BlueRiver NTTM platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The IPX-TC3 can be set up as either one to make installation, inventory and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB (USB 2.0 over IP), ReAX IP control option or Dante audio, for a more complete, distributed system.

Audio, video, data and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of sources further enhances the presentation. Regardless of how the IPX is set up, the audio can be de-embedded at any locations, break away, and/or be sent to or received from a Dante enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSB and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G fiber or copper port.
