Audix M3DK Installed Sound Tri-Element Hanging Ceiling Hypercardioid Microphone Kit with DN43 Dante/AES67 Mic Interface, Gray

SKU: AUM3GDK MFR: M3GDK
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this hypercardioid microphone, perfect for critical sound pickup.
  • Achieve superior sound quality in video conferencing and distance learning environments using this mic.
  • This condenser microphone kit ensures pristine audio, ideal for courtrooms and medical procedures.
  • Experience flexible connectivity with Dante/AES67, streamlining your audio setup effortlessly.
  • Enjoy wide frequency response, capturing every nuance from 30 Hz to 19 kHz with this Audix microphone.
  • Benefit from low noise performance, ensuring clear recordings with a high signal-to-noise ratio.
See More Product Details
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix M3DK Specifications

Microphone

Microphone

Jump to...
  • Transducer Type

    Pre-Polarized Condenser

  • Frequency Response

    30 Hz - 19 kHz

  • Optimized Response

    70 Hz - 9 kHz

  • Polar Pattern

    Hypercardioid

  • Output Impedance

    150 Ohms balanced

  • Sensitivity

    34 mV / Pa at 1k

  • Off Axis Rejection

    1 capsule >23 dB at 180 deg. relative to 0 deg.
    2 capsules >18 dB at 120 deg.
    3 capsules >9 dB at 60 deg.

  • Signal/Noise Ratio

    72 dB (A-weighted)

  • Equivalent Noise Level

    22 dB (A weighted)

  • Maximum SPL

    >=128 dB at .5% THD

  • Dynamic Range

    106 dB

  • Power Requirements

    18 - 52 Volts phantom

  • Cable/Connector

    Terminal block or XLR

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • Applications

    Zone Capture
    Video Conferencing
    Distance Learning
    Hospital and medical procedure
    Courtroom
    Ambient room miking

Microphone Interface

Jump to...
  • Max Input

    -14 dBu, 155 mV (0dB gain)

  • Input Impedance

    1.15 kOhms (balanced)

  • Frequency Response

    15Hz - 22kHz, +0, -3 dB

  • Channel Crosstalk

    < -80 dB (1 kHz)

  • Dante / AES67 Channels

    4

  • Low-pass Options

    Off, 5 kHz, 7 kHz, 10 kHz

  • High-pass Options

    15 Hz, 238 Hz

  • Gain Options

    0 dB, +8 dB, +12 dB, +15 dB, +18 dB, +24 dB, 30 dB, +36 dB

  • Power

    External DC Jack: +48VDC, 125 mA
    PoE (IEEE 802.3af): CLASS 2 (3.84 - 6.49 W)

General

Jump to...
  • Applications

    Zone Capture
    Video Conferencing
    Distance Learning
    Hospital and medical procedure
    Courtroom
    Ambient room miking

  • Dimensions

    Microphone (Dia.xL): 50 x 30mm (1.97 x 1.18")

  • Weight

    Microphone Only: 95g (3.35 oz)

  • UPC Code

    687471151037

About Audix M3DK

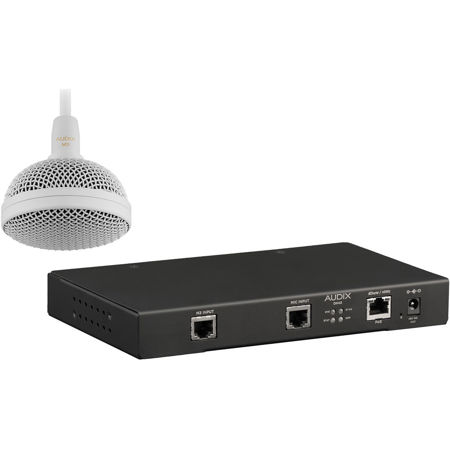

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante | AES67 microphone interface, providing a simple to install, network-ready way to stream Audix audio performance through Ethernet networks. The M3 is an innovative, tri-element hanging microphone designed for applications where aesthetics, sound quality and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise.

The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48KHz audio.

Audix M3DK Features

  • M3 Microphone:
  • 100% RF shielding and immunity
  • Very high output, low self-noise
  • Frequency and pattern tailored for voice clarity and rejection of extraneous noise
  • Evenly dispersed sound with undetectable phase
  • High-quality silicone jacketed microphone cable with adjustable length and position
  • Plenum-rated junction box with RJ45 connector
  • TAA compliant
  • Easy to install
  • DN43 Microphone Interface:
  • Balanced audio inputs with RFI filtering
  • High-fidelity 24-bit, 48KHz audio
  • Each channel has selectable pre-amp gain, as well as low- and high-pass filters
  • Two 5V logic outputs per port, with source/sink capability, for LEDs, if mic is so equipped
  • One logic input per single-element microphone port for buttons
  • 48V phantom power output
  • Operates on PoE from any IEEE 802.3af compliant equipment
  • Dante Domain Manager (DDM) ready

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Key Features

  • Capture crystal-clear audio with this hypercardioid microphone, perfect for critical sound pickup.
  • Achieve superior sound quality in video conferencing and distance learning environments using this mic.
  • This condenser microphone kit ensures pristine audio, ideal for courtrooms and medical procedures.
  • Experience flexible connectivity with Dante/AES67, streamlining your audio setup effortlessly.
  • Enjoy wide frequency response, capturing every nuance from 30 Hz to 19 kHz with this Audix microphone.
  • Benefit from low noise performance, ensuring clear recordings with a high signal-to-noise ratio.

What's in the box:

  • Audix M3DK Installed Sound Tri-Element Hanging Ceiling Hypercardioid Microphone
  • DN43 Dante/AES67 Mic Interface
  • 3' Plenum-Rated CAT6A Shielded Cable
  • 2x 1.56mm (0.063 ") Seismic and Fire Cable Restraints
  • JBM3 Plenum-Rated Junction Box
  • Audix 1 Year Limited Warranty
