17% Off

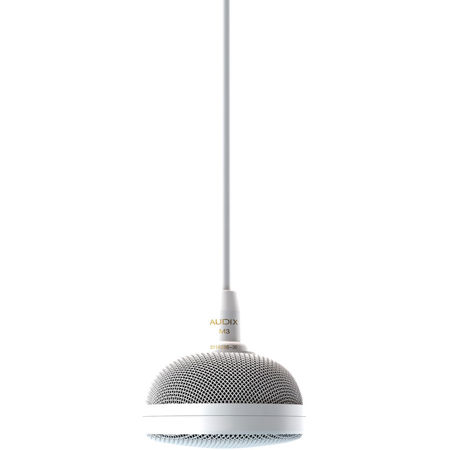

Audix M3 Installed Sound Tri-Element Hanging Ceiling Hypercardioid Microphone with 6' Cable, White

SKU: AUM3W6 MFR: M3W6
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with this Audix hanging microphone, perfect for clear conferencing.
  • Capture every detail; this hypercardioid microphone excels in ambient room miking applications.
  • Enjoy exceptional sound quality with a wide 30 Hz - 19 kHz frequency response for natural tones.
  • Designed for durability, this installed sound microphone includes seismic/fire strain relief.
  • Ensure low noise recordings; the M3's equivalent noise level is only 22 dB (A weighted).
  • Simplify setup with the included plenum rated junction box and breakout cable connectors.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix M3 Specifications

  • Transducer Type

    Pre-Polarized Condenser

  • Frequency Response

    30 Hz - 19 kHz

  • Optimized Response

    70 Hz - 9 kHz

  • Polar Pattern

    Hypercardioid

  • Output Impedance

    150 Ohms balanced

  • Sensitivity

    34 mV / Pa at 1k

  • Off Axis Rejection

    1 capsule >23 dB at 180 deg. relative to 0 deg.
    2 capsules >18 dB at 120 deg.
    3 capsules >9 dB at 60 deg.

  • Signal/Noise Ratio

    72 dB (A-weighted)

  • Equivalent Noise Level

    22 dB (A weighted)

  • Maximum SPL

    >=128 dB at .5% THD

  • Dynamic Range

    106 dB

  • Power Requirements

    18 - 52 Volts phantom

  • Cable/Connector

    Terminal block or XLR

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • Applications

    Zone Capture
    Video Conferencing
    Distance Learning
    Hospital and medical procedure
    Courtroom
    Ambient room miking

  • Dimensions (Dia.xL)

    50 x 30mm (1.97 x 1.18")

  • Weight

    95g (3.35 oz) (mic only)

  • UPC Code

    687471292563

About Audix M3

The M3 is an innovative, tri-element hanging microphone system designed for applications where aesthetics, sound quality and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities and surgical procedures. It can also be used for ambient room miking and surveillance. The M3 incorporates three phase coherent hypercardioid capsules with tailored frequency responses optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans and heating/air conditioning.

Low noise preamp circuitry is employed for highest possible signal to noise and studio quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

The M3 connects to the input of a mixer or dsp console via a breakout cable (provided). The breakout cable consists of a female RJ45 connector that terminates in either three terminal blocks or XLR connectors (optional). A variety of optional shielded CAT7 cable lengths (from plenum rated junction box to break out cable) are available. Installing the M3 requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M3 mounting hardware easily adjusts the cable hanging height up to four feet from the ceiling surface without removing ceiling tiles. A wire safety cable provides additional seismic restraint.

Audix M3 Features

  • 100% RF shielding and immunity
  • Gold diaphragm condenser capsules with studio quality sound
  • Low impedance design allows for extremely long cable runs (if required) without cross talk or interference
  • Frequency and pattern tailored for voice clarity and rejection of extraneous noise
  • Evenly dispersed sound with undetectable phase
  • High-quality silicone jacketed microphone cable with adjustable length and position
  • Plenum rated junction box with RJ45 connector
  • All visible components of the microphone and cable are same color: white
  • TAA compliant
  • Very high output, low self-noise
  • Easy to install

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Key Features

  • Achieve pristine audio with this Audix hanging microphone, perfect for clear conferencing.
  • Capture every detail; this hypercardioid microphone excels in ambient room miking applications.
  • Enjoy exceptional sound quality with a wide 30 Hz - 19 kHz frequency response for natural tones.
  • Designed for durability, this installed sound microphone includes seismic/fire strain relief.
  • Ensure low noise recordings; the M3's equivalent noise level is only 22 dB (A weighted).
  • Simplify setup with the included plenum rated junction box and breakout cable connectors.

What's in the box:

  • Audix M3 Installed Sound Tri-Element Hanging Ceiling Hypercardioid Microphone with 6' Cable
  • Plenum Rated Junction Box
  • Seismic/Fire Strain Relief
  • Breakout Cable with RJ45 Female to 3 Terminal Block Connectors
  • Audix 1 Year Limited Warranty
