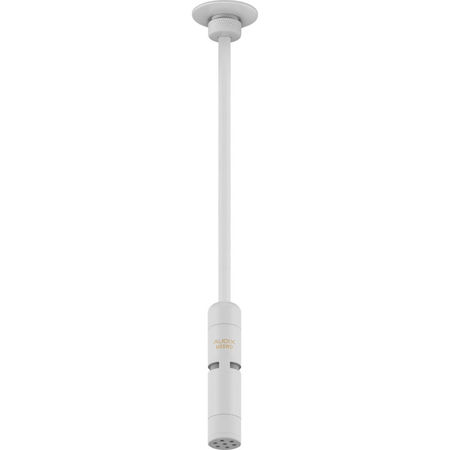

Audix M55WD Installed Sound Hanging Cardioid Ceiling Microphone for Dante/AES67 Integrated Mic System, White

SKU: AUM55WD MFR: M55WD
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this cardioid condenser microphone, perfect for conferencing.
  • Ensure seamless connectivity with the RJ45 connector, compatible with Dante/AES67 systems.
  • Capture every nuance with a wide frequency response, ideal for ambient room miking setups.
  • Benefit from low-noise performance, enhancing sound quality in video teleconferencing.
  • Rely on durable materials for long-lasting use in boardrooms and distance learning.
  • Enjoy easy integration into existing systems, streamlining hospital and medical procedures.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix M55WD Specifications

  • Transducer Type

    Condenser

  • Frequency Response

    60 Hz - 10 kHz

  • Polar Pattern

    Cardioid

  • Output Impedance

    150 ohms

  • Sensitivity

    38 mV (C) / Pa at 1k

  • Equivalent Noise Level

    22 dB (A-weighted)

  • Signal to Noise Ratio

    72 dB

  • Maximum SPL

    >=130 dB

  • Dynamic Range

    108 dB

  • Power Requirements

    18 - 52V phantom

  • Connector

    RJ45

  • Recommended Cable

    CAT5, CAT5e, CAT6, CAT6a, or CAT7

  • Materials

    Aluminum and zinc alloy

  • Applications

    Video teleconferencing (VTC)
    Distance learning
    Boardrooms
    Surveillance
    Hospital and medical procedures
    Ambient room miking

  • Weight

    70g (2.47 oz) (Mic & Cable)
    499g (17.60 oz) (Junction Box & Safety Cable)

  • UPC Code

    687471151068

About Audix M55WD

The M55WD is an innovative, hanging ceiling microphone system designed for applications where aesthetics, sound quality and ease of installation are critical. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices. Installing the M55WD requires just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55WD's mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles and allows for fingertip height adjustment and rotation control. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments.

DANTE Made Simple - By Audix
The M55WD is designed exclusively for the Audix Dante/AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions - including on-off contact closure and LED status indicators - through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation and reduces cost. And like all Audix microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is true plug-and-play installation.

Audix M55WD Features

  • High output allows distance miking
  • Optimized for voice recognition
  • Low-noise preamp circuitry
  • Immunity from RF interference
  • Two-color LED status indicator
  • RJ45 connectors for plug-and-play integration with the Audix Dante/AES67 Integrated Microphone System
  • No external power adaptor required
  • Designed, assembled and tested by Audix in the USA
  • 3-year warranty

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Key Features

  • Achieve crystal-clear audio with this cardioid condenser microphone, perfect for conferencing.
  • Ensure seamless connectivity with the RJ45 connector, compatible with Dante/AES67 systems.
  • Capture every nuance with a wide frequency response, ideal for ambient room miking setups.
  • Benefit from low-noise performance, enhancing sound quality in video teleconferencing.
  • Rely on durable materials for long-lasting use in boardrooms and distance learning.
  • Enjoy easy integration into existing systems, streamlining hospital and medical procedures.

What's in the box:

  • Audix M55WD Installed Sound Hanging Cardioid Ceiling Microphone
  • 0.06 " Seismic and Fire Cable Restraint
  • Audix 3 Year Warranty
