17% Off

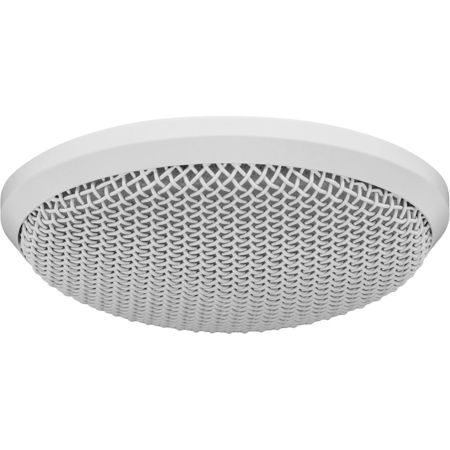

Audix M70WD Flush Mount High Output Cardioid Ceiling Microphone for Dante/AES67 Integrated Mic System, White

SKU: AUM70WD MFR: M70WD
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Audix condenser microphone, perfect for video conferencing.
  • The cardioid polar pattern reduces background noise, ensuring focused sound for your recordings.
  • Seamlessly integrates into Dante/AES67 systems via RJ45, simplifying your audio setup process.
  • Durable brass, aluminum, and steel build ensures this ceiling microphone stands the test of time.
  • Ideal for distance learning, this microphone delivers consistent, high-quality voice capture.
  • Experience a wide frequency response (60 Hz - 10 kHz) for natural sound in any application.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix M70WD Specifications

  • Transducer Type

    Condenser

  • Frequency Response

    60 Hz - 10 kHz

  • Polar Pattern

    Cardioid

  • Output Impedance

    150 ohms

  • Sensitivity

    38 mV / Pa at 1k

  • Signal to Noise Ratio

    72 dB

  • Equivalent Noise Level

    22 dB

  • Maximum SPL

    >=130 dB

  • Dynamic Range

    108 dB

  • Power Requirements

    18 - 52V phantom

  • Connector

    RJ45

  • Recommended Cable

    CAT5, CAT5e, CAT6, CAT6a, or CAT7

  • Materials

    Brass, Aluminum and steel

  • Applications

    Video teleconferencing (VTC)
    Distance learning
    Surveillance
    Hospital and medical procedures
    Ambient room miking

  • UPC Code

    687471151112

About Audix M70WD

The M70WD is a steerable, flush-mount condenser microphone designed for distance miking in a variety of applications, including video conferencing, distance learning, hospital rooms, surveillance and ambient room miking. The flush-mount configuration and a footprint of only three inches in diameter allow the M70WD to virtually disappear. The M70WD capsule is housed within a patented cradle that allows the microphone to be aimed up to an angle of 45 degrees. Other features include a fully integrated preamp and an extremely high sensitivity rating of 38 millivolts. In addition, the M70WD has complete immunity from RF interference caused by cell phones and GSM devices. Installing the M70WD requires just one 2-inch hole in the ceiling, with no additional tools needed.

Dante Made Simple - By Audix
The M70WD is designed exclusively for the Audix Dante/AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions - including on-off contact closure and LED status indicators - through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation and reduces cost. And like all Audix microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is true plug-and-play installation.

Audix M70WD Features

  • High output for distance miking
  • Aimable up to a 45-degree angle
  • Miniaturized integrated preamp circuitry
  • Immunity from RF interference
  • 12 mm gold vapor diaphragm
  • Two-color LED status indicator
  • RJ45 connectors for plug-and-play integration with the Audix Dante/AES67 Integrated Microphone System
  • No external power adaptor required
  • Designed, assembled and tested by Audix in the USA
  • 3-year warranty

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Key Features

  • Capture crystal-clear audio with this Audix condenser microphone, perfect for video conferencing.
  • The cardioid polar pattern reduces background noise, ensuring focused sound for your recordings.
  • Seamlessly integrates into Dante/AES67 systems via RJ45, simplifying your audio setup process.
  • Durable brass, aluminum, and steel build ensures this ceiling microphone stands the test of time.
  • Ideal for distance learning, this microphone delivers consistent, high-quality voice capture.
  • Experience a wide frequency response (60 Hz - 10 kHz) for natural sound in any application.

What's in the box:

  • Audix M70WD Flush Mount High Output Cardioid Ceiling Microphone
  • 0.06 " Seismic and Fire Cable Restraint
  • Audix 3 Year Warranty
