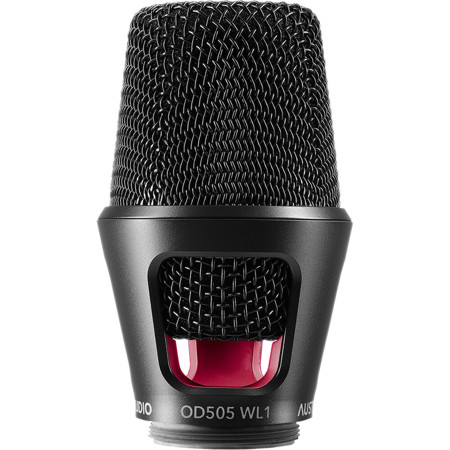

Austrian Audio OD505 WL1 Active Dynamic Supercardioid Wireless Microphone Capsule for Handheld Transmitters

SKU: AUOD505WL1 MFR: OD505-D-WL1-B
Earn VIP Reward Points

Key Features

  • Achieve pristine vocal clarity with this supercardioid microphone capsule.
  • Enjoy superior sound quality with a wide 35 Hz - 16 kHz frequency range.
  • This dynamic microphone capsule is built for durability and lasting use.
  • Reduce unwanted noise; features self-noise at 26 dB SPL (A) for clear audio.
  • High compatibility: fits Shure, Sony & Lectrosonics handheld transmitters.
  • Handle loud sounds easily; max SPL of 150 dB ensures distortion-free audio.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Austrian Audio OD505 WL1 Specifications

  • Directional characteristic

    Supercardioid

  • Frequency range

    35 Hz - 16 kHz

  • Sensitivity

    4.6 mV/Pa

  • Self noise

    26 dB SPL (A)

  • Max. SPL

    150 dB SPL

  • Load impedance

    > 1 k Ohm

  • Supply voltage

    5-10 V (< 1 mA)

  • Connection

    Shure / Sony / Lectrosonics

  • Dimensions

    3.62 x 2.08" (92 x 53mm)

  • Weight

    6.87 oz (195g)

  • UPC Code

    810019100468

Models
Austrian Audio OD505 WL1 Active Dynamic Supercardioid Wireless Mic Capsule
$299.00

$399.00

Save:$100.00 (25%)

Special Order

Generally ships in 7-14 days, subject to availability

Austrian Audio OC707 WL1 True Condenser Cardioid Wireless Microphone Capsule
$449.00

$649.00

Save:$200.00 (31%)

Special Order

Generally ships in 7-14 days, subject to availability

Sennheiser ME36 W Shotgun Microphone Capsule, White
$299.00

$336.00

Save:$37.00 (11%)

Ships from Manufacturer

Usually ships within 3-7 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Austrian Audio OD505 WL1

The best of two worlds. Wireless.
The outstanding sound of the Austrian Audio OD505 vocal microphone with active dynamic circuitry has already won over many FOH engineers, technicians and artists. The OD505 WL[KW1] 1 is the ideal solution for all those who are mobile during their performance and depend on a wireless system, but want to retain the authentic Austrian Audio sound.

The OD505 WL1 is the perfect performance partner for any artist, whether lead or backing vocals. The natural tuning and exemplary signal quality provide the perfect foundation to bring out the strengths of any voice with minimal tweaks required.

In many live situations, ambient sound is a big problem. That's why a supercardioid polar pattern was chosen for the OD505. This optimally fades out unwanted interference and focuses on the voice. Elements such as drums or other loud instruments in the immediate vicinity are not additionally amplified by the vocal microphone.

Austrian Audio's Open Acoustic sound remains present over the radio transmission.

Austrian Audio OD505 WL1 Features

  • ODC50 active dynamic capsule: State-of-the-art dual capsule design for consistent sound
  • 3D Pop Noise Diffusor: Specially designed, this filter effectively reduces the impact of plosives
  • Directional characteristic: Supercardioid

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve pristine vocal clarity with this supercardioid microphone capsule.
  • Enjoy superior sound quality with a wide 35 Hz - 16 kHz frequency range.
  • This dynamic microphone capsule is built for durability and lasting use.
  • Reduce unwanted noise; features self-noise at 26 dB SPL (A) for clear audio.
  • High compatibility: fits Shure, Sony & Lectrosonics handheld transmitters.
  • Handle loud sounds easily; max SPL of 150 dB ensures distortion-free audio.

What's in the box:

  • Austrian Audio OD505 WL1 Active Dynamic Supercardioid Wireless Microphone Capsule
  • Soft Pouch
  • Austrian Audio 2 Year Limited Warranty
