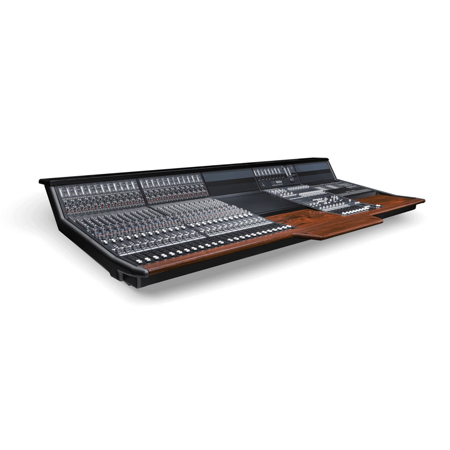

Audient ASP8024 Heritage Edition 48-Channel Large Format In-Line Analog Recording Console

SKU: AUP8024HE48 MFR: ASP8024HE48
Earn VIP Reward Points

Key Features

  • Experience pristine sound quality with this Audient analog recording console.
  • Harness the power of 48 input channels for complex, professional recording sessions.
  • Shape your sound with precision using the console's flexible EQ control features.
  • Enjoy ultra-low noise performance, ensuring clean and clear audio recordings every time.
  • Built for durability, this large format mixer is a reliable studio centerpiece for years.
  • Seamlessly integrate your outboard gear using the comprehensive insert points.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Audient ASP8024 Specifications

Mixer
  • Number of Analog Input Channels

    64 (48 Mono / 4 Stereo)

  • Number of Mic Preamps

    48

  • Analog Output Channels

    1x Stereo Master Output
    32x Mono Bus/Subgroup Output
    1x Stereo Control Room/Monitor Output
    4x Stereo ALT Control Room/Monitor Output
    2x Stereo Foldback/Cue Output
    14x Mono Aux Send Output
    1x Stereo Headphone Output

  • Mix Routing

    1x Stereo Main Mix
    8x Mono Aux Bus/Subgroup
    12x Mono Aux Send
    4x Stereo FX Return
    1x Mono Insert per Aux Bus/Subgroup, Main Mix Channel
    2x Mono Insert per Input Channel

  • Faders & Level Adjustment

    96x Channel Fader
    1x Master Fader
    8x Bus/Subgroup Fader

  • Meters

    Main Meter:
    2x Multi-Segment LED

    Channel Meter:
    24x 20-Segment LED

    Bus Meter:
    8x 20-Segment LED
    1x VU

  • Meter Range

    Channel Meter:
    -18 to +18 dBu Peak/Clip

Signal Processing

Jump to...
  • Gain/Trim Range

    XLR Mic Input:
    6 dB to +60 dB (Stereo Channels)
    -15 dB to -15 dB

  • Input Pad

    -15 dB (Mic/Line Inputs)

  • Input Polarity

    Normal/Reverse

  • Dynamic Processing

    Compressor

  • Compressor Parameters

    Ratio: 1.2:1 to 10:1
    Attack: .1 ms to 30 ms

  • Sidechain Filters

    No

  • EQ

    Input Channels:
    2-Band EQ (Stereo Channels)

  • EQ Parameters

    Stereo Channels:
    Hi-Mid: +/-15 dB at 0.4 kHz to 20 kHz
    Lo-Mid: +/-15 dB at 50 Hz to 1.5 kHz

  • Graphic EQ

    No

  • Filters

    Input Channels:
    1x High-Pass

  • Solo/Mute

    Solo, Mute, PFL per Input Channel, Bus

  • Channel Output/Source Monitoring

    AFL, PFL, Post-Preamp, Post-HPF, Post-EQ, Post-Compressor, Insert Return

  • Built-In Effects

    No

Performance

Jump to...
  • Frequency Response

    Mic Input:
    20 Hz to 20 kHz +/-0.3 dB (With 6 to 40 dB Gain)

    Line Input:
    20 Hz to 20 kHz +/-0.3 dB (With 0 dB Gain)

  • Max Input Level

    Mic:
    +21 dBu (Minimum Gain)

    Line:
    +30 dBu (Minimum Gain)
    >
    Insert:
    +21 dBu

  • Output Level

    Aux/Group/Mix Output:
    +26 dBu (Into 2 Kilohms)

    Insert/Monitor:
    +20 dBu (Into 2 Kilohms)

  • Analog Dynamic Range

    120 dB

  • Headphone Output Power

    317 mW into 600 Ohms
    1000 mW into 150 Ohms
    2000 mW into 60 Ohms
    2000 mW into 32 Ohms

  • I/O Impedance

    1/4" TRS Headphone Output:
    < 10 Ohms (DC Coupled)

  • Crosstalk

    Mix/Bus Assign, Channel Fader Off:
    > 90 dB at 1 kHz
    < -82 dB at 1 kHz (10 Hz to 10 kHz)
    < -80 dB at 1 kHz (10 Hz to 10 kHz)

  • CMRR

    XLR Mic Input:
    70 dB at Unity Gain
    75 dB at Max Gain

  • EIN

    XLR Mic Input:
    < -127.5 dBu (20 Hz to 20 kHz, 150 Ohm Source)

  • Noise Floor

    < -93 dBu (No Inputs Routed)
    < -81 dBu (36 Inputs Routed)

  • THD+N

    Mic/Line Input to Output:
    < 0.005% (At 1 kHz, +22 dBu Output)
    < 0.003% (At 1 kHz, +22 dBu Output)

Connectivity

Jump to...
  • Analog Inputs

    24x XLR 3-Pin Balanced Mic Input
    3x XLR 3-Pin Balanced Stereo Aux Input (3 Stereo Pairs)
    48x 1/4" TS Unbalanced Line Input
    48x 1/4" TS Unbalanced Return
    8x 1/4" TS Unbalanced Subgroup Input
    1x 1/4" TS Stereo Insert Input (1 Stereo Pair)
    4x 1/4" TS Stereo FX Input (4 Stereo Pairs)

  • Analog Outputs

    2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)
    6x XLR 3-Pin Balanced Alt Output (3 Stereo Pairs)
    1x XLR 3-Pin Balanced Stereo Control Room/Monitor Output (1 Stereo Pair)
    2x XLR 3-Pin Balanced Stereo Foldback Output (4 Stereo Pairs)
    14x XLR 3-Pin Balanced Aux Output (7 Stereo Pairs)
    3x XLR 3-Pin Balanced Stereo Mix Output (3 Stereo Pairs)
    48x 1/4" TS Unbalanced Mono Send

  • Phantom Power

    +48 V, Selectable On/Off (Selectable on Individual Inputs)

  • Digital I/O

    No

Physical

Jump to...
  • Rack Mountable

    No

  • UPC Code

    5060374260559

About Audient ASP8024

Where professional sound quality converges with vintage aesthetics, the ASP8024 Heritage Edition 48-Channel Large Format In-Line Analog Recording Console stands as a tribute to the enduring legacy of designer David Dearden. Celebrating over two decades of the ASP8024's production, this Heritage Edition is a reimagined classic, featuring new enhancements and innovations that underscore Audient's unwavering commitment to superior audio technology.

This modular console is a standout in the market, offering unparalleled customization to meet the unique demands of any studio environment. Its interactive console builder provides a seamless configuration experience, allowing for the integration of additional modules such as the Patchbay, Dual Layer Control, and Producers Desk to tailor the console precisely to your needs.

At the core of the ASP8024 Heritage Edition are the renowned Audient Console Mic Preamps, celebrated for their clean and transparent sound. These high-grade op-amp designs ensure an accurate and detailed translation of your audio source, making them the preferred choice for professionals, top studios, and home recordists worldwide. The console boasts an impressive noise floor, 30,000 times quieter than the signal level, ensuring your recordings are captured with exceptional clarity and precision.

The Mix Bus Compressor, inspired by technology from the 80s and 90s, infuses your mix with a dynamic rock and roll edge. Its improved circuitry and new gain reduction VU meter provide essential visual feedback, making it an invaluable tool in your recording arsenal. Additionally, the Variable Mix Bus, featuring the innovative RETRO IRON, delivers a distinctive analogue console sound with added character, drawing inspiration from two consoles from David Dearden's early career at Advision Studios in London. This feature adds punch and 'vibe' to the console's mix output.

The 4-Band Audient EQ, meticulously designed by Dearden, offers two fully parametric bands ranging from 40Hz to 20kHz, complemented by low and high shelving EQ bands. This powerful, musical, and splittable EQ is ideal for sculpting your sound to perfection.

The ASP8024-HE's workflow flexibility is unmatched, featuring one knob per function, no hidden features, and zero latency. Its inline architecture allows you to begin building your mix while tracking, with separate record and monitor balances on a single channel strip. With a wide array of connectivity options, the ASP8024-HE can effortlessly become the central hub of your studio. Depending on your chosen console configuration, the rear connectivity layout may vary, offering endless possibilities to suit your specific requirements.

The console's monitor control section provides comprehensive artist communication, remote talkback control, an additional engineer headphone output, powerful source selection, and loudspeaker control. Built to withstand the rigors of daily use, the ASP8024-HE is renowned for its reliability and durability.

Bundled with a free suite of creative software, including Cubase LE, industry-leading plugins, and virtual instruments, the ASP8024 Heritage Edition allows you to start recording immediately upon setup. Experience the perfect fusion of classic design and modern technology with the ASP8024 Heritage Edition 48-Channel Large Format In-Line Analog Recording Console, a true masterpiece in the world of audio engineering.

Audient ASP8024 Features

  • Variable Mix Bus
  • Audient Mic Pres
  • 4 Band Splittable EQ
  • Mix Bus Compressor
  • Inline Architecture
  • Comprehensive Monitor Control
  • Monitoring Grade Headphone Output
  • 48v Enabled Talkback Mic
  • 24 Track Routing
  • 14 Auxiliary Buses
  • Modular Construction
  • Whisper Quiet Power Supply

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience pristine sound quality with this Audient analog recording console.
  • Harness the power of 48 input channels for complex, professional recording sessions.
  • Shape your sound with precision using the console's flexible EQ control features.
  • Enjoy ultra-low noise performance, ensuring clean and clear audio recordings every time.
  • Built for durability, this large format mixer is a reliable studio centerpiece for years.
  • Seamlessly integrate your outboard gear using the comprehensive insert points.

What's in the box:

  • Audient ASP8024 Heritage Edition 48-Channel Large Format In-Line Analog Recording Console
  • IEC Power Cord
  • User Manual
  • Audient 3 Year Limited Warranty
