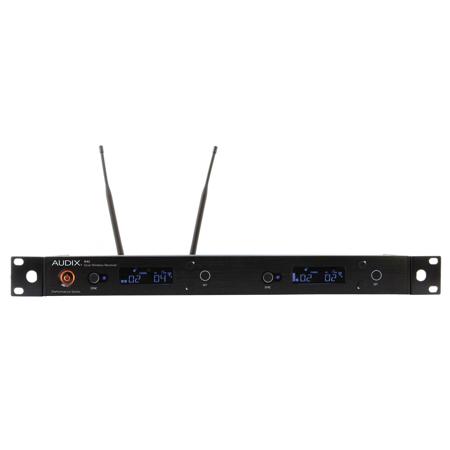

Audix R42 Dual-Channel UHF Diversity Receiver, Band B: 554MHz - 586MHz
See all Audix items
17% Off

Audix R42 Dual-Channel UHF Diversity Receiver, Frequency Band B: 554MHz - 586MHz

SKU: AUR42KITB MFR: R42KITB
Be the first to review this itemAsk a Question
$769.00
$923.00
Save: $154 (17%)
OR
$129/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Audix wireless receiver, perfect for clear audio.
  • Achieve low latency with our advanced wireless microphone system, ideal for live performances.
  • Enjoy a wide 300' operating range, providing freedom on stage with this wireless system.
  • This durable Audix receiver operates in the 554MHz - 586MHz range for reliable performance.
  • Simple setup with included rackmount hardware makes this wireless microphone receiver user-friendly.
  • Ensure clear signal with 106 preset frequencies on this dual-channel UHF diversity receiver.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Audix R42 Receiver Specifications

  • Frequency Range

    554MHz - 586MHz

  • Bandwidth

    32MHz

  • Compatible Systems

    Up to 8 systems / 16 unique channels

  • Switchable Frequencies

    106 Preset frequencies

  • Frequency Response

    45 Hz - 18 kHz

  • Operating range

    300' (91.44m)

  • Compander System

    2:1

  • Pilot Tone

    32kHz

  • Receiving System

    Single tuner, diversity

  • Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (A-weighted)

  • Total Harmonic Distortion

    <=.7% (33 kHz deviation at 1 kHz)

  • Sensitivity

    5dB Mu V (S/N 60 dB at 25 kHz deviation, A-weighted)

  • Audio Output (AF=0)

    Balanced: -12 dBv at 25 kHz deviation, 600Ohms load
    1/4": -18 dBv at 25 kHz deviation, 10k Ohms load

  • Output Connectors

    1/4", XLR

  • Audio Level Adjust

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • Dimensions (WxDxH)

    406 x 209 x 44mm (15.98 x 8.23 x 1.73")

  • Weight

    4.4 lbs (2.00kg)

About Audix R42 Receiver

Two channel diversity receiver including antennas, power supply, rack mount and BNC cables for front mounting antennas. With the R42 Kit a variety of combination packs can be tailored to a specific application depending on what type of transmitter and mics are needed. With the addition of the ADS48 antenna distribution system, a total of four R42 systems (8 channels of wireless) will fit compactly into just 5 rack spaces and run off of one set of antennas.

R42 Dual Diversity Receiver
• 32 MHz Wide spectrum tuning receiver
• 106 Pre-coordinated frequencies
• Up to 8 systems / 16 unique channels simultaneous use
• High contrast LCD display
• AF and RF gain control
• 300' (91 meters) Operating range
• 19" Rackmount chassis with front mount antenna kit included

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound with this Audix wireless receiver, perfect for clear audio.
  • Achieve low latency with our advanced wireless microphone system, ideal for live performances.
  • Enjoy a wide 300' operating range, providing freedom on stage with this wireless system.
  • This durable Audix receiver operates in the 554MHz - 586MHz range for reliable performance.
  • Simple setup with included rackmount hardware makes this wireless microphone receiver user-friendly.
  • Ensure clear signal with 106 preset frequencies on this dual-channel UHF diversity receiver.

What's in the box:

  • Audix R42 Dual-Channel UHF Diversity Receiver
  • 2x BNC Cables
  • 2x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Hardware
  • User Guide
  • Audix 1 Year Limited Warranty
