17% Off

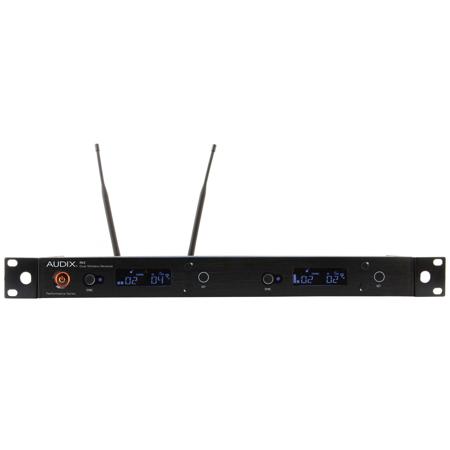

Audix R62 Two Channel 64MHz True Diversity Receiver Kit, Includes 2x BNC Cables, 2x Antennas and Audio Cable

SKU: AUR62KIT MFR: R62KIT
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this wireless microphone receiver kit.
  • Enjoy reliable performance with a wide 64MHz frequency range for clear sound.
  • Easily manage your audio with 207 preset frequencies on this wireless system.
  • Achieve professional sound quality with a signal-to-noise ratio of 112 dB.
  • Perfect for live performances with a robust 450' range and true diversity.
  • Get flexible connectivity with both XLR and 1/4" output connectors included.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix R62 Kit Specifications

  • Frequency Range

    522 MHz - 586 MHz

  • Bandwidth

    64 MHz

  • Compatible Systems

    20 Compatible system operation

  • Switchable Frequencies

    207 Preset frequencies

  • Manual Mode

    2560 Frequencies (spaced 25 kHz apart)

  • Frequency Response

    45 Hz - 18 kHz

  • Compander System

    2:1

  • Pilot Tone

    32 kHz

  • Receiving System

    Single tuner, true diversity

  • Signal-to-Noise Ratio

    112 dB at 30 kHz deviation (A-weighted)

  • Total Harmonic Distortion

    <=.4% (33 kHz deviation at 1 kHz)

  • Sensitivity

    5 dBMuV (S/N 60 dB at 25 kHz deviation, A-weighted); Balanced: -12 dBv at 25 kHz deviation, 600 ohm load

  • Audio Output (AF=0)

    1/4": -18 dBv at 25 kHz deviation, 10 kOhms load

  • Output Connectors

    1/4", XLR

  • Audio Level Adjust

    Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 6 dB-steps)

  • Range

    450' (137.16m)

  • Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • Dimensions (WxDXH)

    406 x 209 x 44mm (15.98 x 8.23 x 1.73")

  • Weight

    4.65 lbs (2.11kg)

About Audix R62 Kit

What you're looking at is the R62 Two Channel 64MHz True Diversity Receiver Kit, a comprehensive package that includes not only the receiver but also two antennas, a power supply, rackmount, and BNC cables for front mounting antennas. This advanced and reliable system is designed by Audix, a leading name in professional audio equipment, ensuring high-quality performance and durability.

The R62 receiver is a true diversity system, featuring two separate receivers that can pick up signals from two different antennas. This innovative design provides superior reception and minimizes interference, making it an ideal choice for live events, broadcasting, and surveillance applications.

One of the standout features of this kit is its wide spectrum tuning receiver, which operates in the 64 MHz frequency range. With 207 pre-coordinated frequencies, setting up is quick, easy, and reliable. The one-touch auto scan function searches for a clear channel, eliminating the guesswork and ensuring optimal performance.

The R62 kit is also highly customizable, allowing you to tailor combination packs to your specific application depending on the type of transmitter and mics needed. With the addition of the ADS48 antenna distribution system, you can fit up to four R42 systems (equating to 8 channels of wireless) compactly into just 5 rack spaces, all running off of one set of antennas.

Furthermore, the one-touch sync feature links the transmitter to the receiver via an infrared beam, simplifying the setup process. With a total of 2560 tunable frequencies, this receiver kit offers unparalleled flexibility and control over your audio setup.

In summary, the R62 Two Channel 64MHz True Diversity Receiver Kit is a comprehensive, high-quality, and reliable solution for all your wireless audio needs. Whether you're hosting a live event, broadcasting, or setting up a surveillance system, this kit offers the advanced features and flexibility you need to ensure optimal audio performance.

Audix R62 Kit Features

  • Comprehensive R62 Two Channel 64MHz True Diversity Receiver Kit by Audix
  • Features two separate receivers for superior reception and minimized interference
  • Wide spectrum tuning receiver operating in the 64 MHz frequency range
  • One-touch auto scan and sync functions for quick, easy, and reliable setup
  • Highly customizable system, compatible with ADS48 antenna distribution system
  • Offers 2560 tunable frequencies for unparalleled flexibility and control

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this wireless microphone receiver kit.
  • Enjoy reliable performance with a wide 64MHz frequency range for clear sound.
  • Easily manage your audio with 207 preset frequencies on this wireless system.
  • Achieve professional sound quality with a signal-to-noise ratio of 112 dB.
  • Perfect for live performances with a robust 450' range and true diversity.
  • Get flexible connectivity with both XLR and 1/4" output connectors included.

What's in the box:

  • Audix R62 Two Channel 64MHz True Diversity Receiver
  • 2x BNC Cables
  • 2x Antennas
  • Audio Cable
  • Power Supply
  • User Guide
  • Rackmount Hardware
  • Audix 1 Year Limited Warranty
