Audessence ProCoder-3 Specifications

  • Frequency Response

    Analogue-Analogue (L=R input, output de-emphasized): 20Hz-15kHz+/-0.2dB

  • Output

    MPX (Analogue): Unbalanced (on BNC), standard operating level -6dBu to +18dBu

  • Pilot tone level

    min. <50 mV pk-pk

  • Noise

    Analogue-Analogue (rms 20Hz-20kHz, output d/e):<- 75dB ref: 100% modulation (d/e on)

  • Output RDS signal amplitude

    Adjustable <25mV to >1.4 V pk-pk

  • Signal connectors

    Unbalanced, BNC, 50-Ohms

  • Distortion

    At 6dB limiting: <-70dB / 0.03% THD

  • RDS spurious suppression

    >90 dB

  • Data connector

    RJ45, RS-232 (9 pin f), bidirectional

  • Stereo Separation

    Better than 60dB at 1kHz

  • RDS harmonics suppression

    >80 dB

  • RDS signal bandwidth

    +/- 2.4 kHz (-50 dBc)

  • Noise protection

    Threefold level sampling

  • Inputs

    Analogue: Active balanced, 10k (bridging), standard operating level 6dBu to +14dBu (clip +22dBu)
    Digital: AES-3 (XLR); 32, 44.1, 48, 88.2, 96kHz. 16, 20, or 24 bits

  • Clock reference

    Pilot tone or internal generator

  • Com. speed

    Software switchable 1200-19200 kbps

  • Com. mode

    8 data bits, no parity, 1 stop bit

  • UECP protocol support

    Basic implementation for TMC and RT+

  • Processing blocks: High-pass

    3dB frequencies 3Hz [DC block], 25Hz, 45Hz, 70Hz, 110Hz, 12dB/octave

  • Processing blocks: Presence Enhancer

    Boosts selected frequencies for presence and / or brightness

  • Processing blocks: HF Limiter

    50 ms or 75 ms emphasis curve

  • Processing blocks: Gated AGC

    Capture range 40dB (+/- 20dB); maximum positive gain can be set + Advanced AGC enables faster, programme-dependent operation

  • Processing blocks: Limiters

    look-ahead dual time-constant peak limiters plus NCDCS fully anti-aliased main clippers

  • Processing blocks: Compressor

    Nominal 2:1 slope

  • Processing blocks: Low-Pass Filter

    Cut-off frequency 15.5kHz, overshoot compensated, stop-band better than -70dB

  • Processing blocks: Stereo Encoder

    Zenith / GE Pilot tone

  • Processing blocks: Composite Clipper

    -1.0 to +2dB, Anti-aliasing, filters protect 19kHz +/- 200Hz and above 54kHz

  • Processing blocks: Tilt Corrector

    Corrects low frequency overshoots in transmitters / exciters. Fully adjustable

  • AC power input

    100-240V AC/12.5 Watts (Acceptable range 88 to 264V AC)

  • Computer Control

    Setup is via PC GUI only (GUI software included, updates are free of charge)
    Select a factory preset, modify it, set levels etc, save to flash memory
    All-text command format
    Every processing and RDS parameter, including all thresholds and time constants, can be accessed and modified under PC control
    USB on front panel, plus RS-232 on rear panel

  • Defining Specification

    CENELEC EN50067

  • Connectivity

    10/100MHz Ethernet TCP/IP port

  • Approvals

    CE (EMC & LVD), RoHS

  • Dimensions

    1-RU: 44 x 482 x 290mm (1.73 x 18.97 x 11.41")

  • Weight

    1.8 kg (3.96lbs)

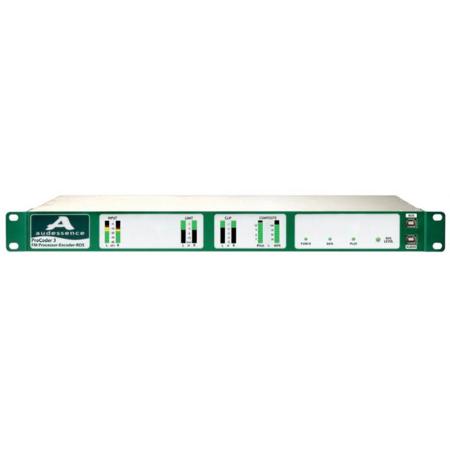

About Audessence ProCoder-3

The Audessence PROCODER-3 Audio Processor, Stereo Encoder and RDS Encoder for FM (TCP/IP Connectivity) in the 'Transparent mode' offers brick-wall peak limiting without disturbing sonic signature. Features automatic silence detect and fall-back to secondary audio source. Comes with composite clipper for 'last ounce' loudness with perfect pilot and subcarrier protection. Overshoot compensated 15.5kHz low-pass filters. The advanced AGC as used in ALPS levelers offers unsurpassed, rapid control of levels. Presence enhancer to brighten program if used without multiband pre-processing. It also features Very low audio latency (7 milliseconds) and very fast boot-up (<1 second). The factory presets deliver exactly the results you need for any application. It is an Integral fully-featured RDS encoder.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Audessence ProCoder-3 Audio Processor & Stereo Encoder and RDS Encoder for FM
  • GUI Software
  • Audessence 3 Year Warranty
