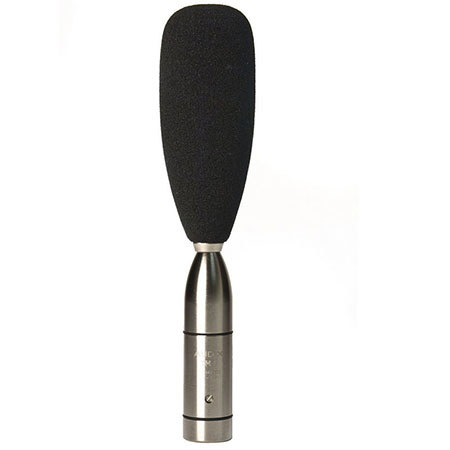

Audix TM1 PLUS Microphone Kit, Includes TM1 Test & Measurement Microphone, Windscreen, Shock Mount Clip, Adaptor, Sensitivity&Calibration Data (CD)

SKU: AUTM1PLUS MFR: TM1PLUS
Earn VIP Reward Points

Key Features

  • Achieve precise audio analysis with the TM1 PLUS condenser microphone's flat frequency response.
  • Capture pristine sound for room analysis using this omnidirectional measurement microphone kit.
  • Ensure accurate readings with included sensitivity & calibration data for your Audix TM1 microphone.
  • Experience low-noise recordings; the TM1 PLUS's equivalent noise level is only 28dB (A weighted).
  • Rely on robust build quality; this test microphone features a precision-machined brass housing.
  • Easily connect via XLR; this condenser microphone is perfect for real-time analyzers & more.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?THOMAS C : Needed a reference microphone, and this one had a solid combination of value and reputation, and price.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix TM1 PLUS Specifications

  • Transducer Type

    Pre-polarized Condenser

  • Frequency Response

    20Hz-25kHz +/-2dB

  • Polar Pattern

    Omni

  • Output Impedance

    200 Ohms

  • Nominal Sensitivity

    6 mV +/- 3dB / Pa at 1k

  • Maximum SPL

    130dB with distortion < 1% 140dB Max

  • Signal to Noise Ratio

    66dB

  • Equivalent Noise Level

    28dB (A weighted)

  • Dynamic Range

    112dB

  • Power Requirements

    18-52V phantom

  • Connector

    Switchcraft or Audix male XLR

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • Housing

    4 piece precision machined brass

  • Finish

    Nickel

  • Applications

    Test and measurement
    Real time analyzers
    Room analysis software programs
    Ambient room miking

  • Length

    5.9"/ 149.86mm

  • UPC Code

    687471061299

About Audix TM1 PLUS

Enhance your audio recording and measurement capabilities with the Audix TM1 PLUS Microphone Kit. This comprehensive kit includes the TM1 Test and Measurement Microphone, a threaded acoustic windscreen, a shock mount clip, a 1/2" calibrator adaptor, and a CD containing the microphone's calibration data.

The TM1 PLUS is a professional-grade, 6mm pre-polarized condenser microphone, renowned for its linearity and accurate response. It delivers consistent performance, making it an invaluable tool for sound engineers, audio companies, and recording enthusiasts.

The calibration data files provide a numeric representation of the TM1's frequency response. When used with popular software measurement systems, these data files can help correct the microphone's response curve, ensuring precise and reliable audio capture.

The TM1 microphone is characterized by its uniformly controlled omnidirectional polar pattern. This feature allows it to capture acoustic measurements from all directions, making it ideal for room analysis software programs, real-time analyzers, and other sound control devices.

With a flat frequency range of 20Hz-25kHz, the TM1 PLUS Microphone Kit is versatile enough to handle a wide range of recording and live sound applications. It requires 18-52V phantom power for operation, ensuring optimal performance in various settings.

The microphone's precision-machined, four-stage brass body and capsule housing ensure durability and longevity. Its nickel plate finish adds a touch of sophistication, while the shock-absorbent O-ring helps protect the microphone from damage. The kit also includes a Switchcraft or Audix XLR, further enhancing its compatibility with professional audio equipment.

In sum, the Audix TM1 PLUS Microphone Kit is a high-quality, reliable, and versatile solution for all your audio recording and measurement needs.

Audix TM1 PLUS Features

  • High SPL response
  • Precision machined brass housings
  • Low noise electronics

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Key Features

  • Achieve precise audio analysis with the TM1 PLUS condenser microphone's flat frequency response.
  • Capture pristine sound for room analysis using this omnidirectional measurement microphone kit.
  • Ensure accurate readings with included sensitivity & calibration data for your Audix TM1 microphone.
  • Experience low-noise recordings; the TM1 PLUS's equivalent noise level is only 28dB (A weighted).
  • Rely on robust build quality; this test microphone features a precision-machined brass housing.
  • Easily connect via XLR; this condenser microphone is perfect for real-time analyzers & more.

What's in the box:

  • Audix TM1 Test & Measurement Microphone
  • Threaded Acoustic Windscreen
  • Shock Mount Clip
  • Calibration Adaptor for use with 1/2 " Calibrators
  • Sensitivity & Calibration Data (CD)
  • Audix 3 Year Warranty
