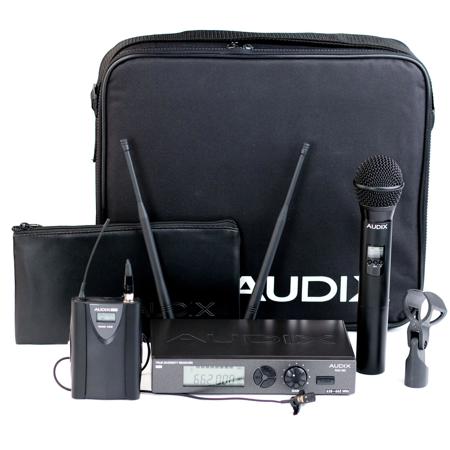

Audix RAD360 UHF Combo Wireless Microphone System with OM3 Handheld Transmitter and ADX10 Lavalier Microphone, Includes RAD360-R Receiver, RAD360-BP Body-Pack Transmitter, 2x 1/2 Wave UHF Whip Antennas, C Range: 566-590MHz

RAD360 Wireless Microphone System
The Audix RAD360 is a frequency agile UHF wireless microphone system with 193 selectable frequencies (per system group) and dual tuner, true diversity receivers. Operating in the UHF band between 566-590MHz, The RAD360 is designed for a wide range of professional applications including live performances, regional sound companies, fixed installations, corporate meetings and events and houses of worship. The RAD360 features easy-to-use and easy-to-read menu driven displays in every component of the system. Both the receiver and the transmitter are synthesizer controlled via Phase Locked Loop (PLL) for stable Radio Frequency (RF) signals.

• Frequency Agile
• Soft-key Controls
• Backlit LCD Menu Driven Displays
• Noise Squelch Circuitry Analyzes signal quality
• Surface Acoustic Wave (S.A.W.) Filters RF resistance
• Tone Key Squelch Eliminates unwanted noise
• Tuned Antennas
• Audio Output
• RF Level Meters
• Audio Meters
• Battery Power Indicators
• Easy to use Set and Lock Function
• Sensitivity Adjustment
• Interchangeable Head Assemblies
• Durable Metal Housings

The RAD-360 handheld transmitters are constructed with durable metal housings and feature legendary performance of the OM-series dynamic microphones from Audix-microphones that have set standards in the pro audio industry for clarity, feedback rejection and dependability. The hand-held transmitters have a convenient gain setting control that will enable a -6, -12 or -24 dB pad to help prevent overload or distortion. The modular design of the threaded capsule housing assembly means that the user can easily change the transmitter mic capsule from one OM Series model to another in a matter of seconds.

The body pack transmitter, constructed of durable ABS composite, is housed in a protective metal cradle. It may be used with lavalier, headset and specialty instrument microphones. A guitar system is also available. Mic/line input adjustments are provided as well as sensitivity/gain control. The receiver is rack-mountable for either 1 or 2 systems into a standard 19 inch rack with optional rack mount kits. An optional amplified Antenna Distribution System (ADS 4) is available, allowing up to 4 systems to be run off a single pair of antennas and one DC power supply. An optional antenna booster (AB 1), which can be wall-mounted or mic stand mounted, is available to strengthen incoming signals, improve signal to noise ratio and increase the RF range.

ADX10 Lavalier Condenser Microphone
The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation and theatrical production. Known for its clarity, resistance to feedback and ease of operation, the ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8". The ADX10 is characterized with a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other vocals or instruments on stage. With a smooth and accurate frequency range of 50 Hz - 18 kHz, the ADX10 is lightweight, low profile and will provide natural sound with exceptional transient response.

• Small, lightweight, low profile
• Natural, accurate sound reproduction
• Easy to use and set up
• Field replaceable capsule
• Available for wireless and wired applications

The ADX10, primarily for use with the Audix RAD360 wireless system, includes a tie-clip, 3' attached cable terminating to a mini-XLRf connector. The wired version (ADX10P) includes an 8' cable terminating to a miniXLRf connector, tie clip, external windscreen and a phantom power adapter module (APS910). The ADX10P, for wired use, includes a tie clip, an 8' cable terminating to an mini XLR-f connector and a phantom power adapter (APS910). Manufactured to high standards and tight tolerances, the ADX10 features a modular threaded capsule, a machined brass body with matte black finish, high quality shielded microphone cable and a variety of optional accessories .
