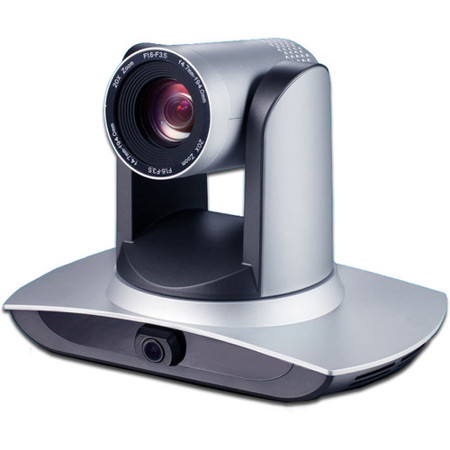

AViPAS AV-1364 2.07MP Full HD SDI Auto Tracking Camera with IP Live Streaming, 20x Optical Zoom, 10x Digital Zoom

The Avipas AV-1364 is a new intelligent auto-tracking camera with a built-in high-speed processor, and advanced image processing & analysis algorithms. It allows lecture capturing to be more accurate, faster and smoother. AV-1364 equips with a full HD 1080p tracking camera with 20X optical zoom & 10X digital zoom, and an integrated panoramic camera for analysis. With the provided IVESmart tool, AV-1364 is easy to install and maintain. Both the tracking & panoramic camera have 2 outputs: HD-SDI and LAN.

AV-1364 SDI Auto-Tracking Camera is a dedicated smart camera solution in educational information industry. It can be used alone, or be easily integrated into any smart-room system according to user settings. AV-1364 features a built-in high-speed processor and advanced image processing and analysis algorithms, to detect and track target accurately and quickly.

It adopts advanced ISP processing technique and algorithms, providing vivid images with balanced brightness, distinct layering, high definition and color reduction. H.264/H.265 encoding supported. It makes video fluent and clear even under less-than-ideal bandwidth conditions. AV-1364 offers flexible functions, autonomous performance, simple use and minimum maintenance.

• Network control interface: control commands will be transmitted via network. It is suitable for all-scenario user settings.
• Recognition algorithm unrelated to location: status detection and recognition of teachers and students adopt unique smart partitioning algorithm to ensure that the result of detection and recognition is unrelated to locatio.
• 2-way installation: with wall-mount or ceiling-mount, it supports both normal and upside-down installation.
• All-in-one design: the built-in panoramic lens allows perfect combination of panoramic view and close-up.
• Advanced tracking algorithm: it applies advanced human detection algorithms, image processing and analytical algorithms for locking and tracking the target (intelligent image recognition library, scene adaptive algorithm) to achievee stable, fast and accurate target tracking results.
• High immunity from interference: more diversified and flexible recognition shield settings ensure that once tracking target is locked, it will not be affected by other moving objects or projector changes.
• Stable tracking: adjustable movement recognition sensitivity. Can be adjusted so that slight movement of the target such as hand movement will not cause wrong operation of the camera.
• Self-adaptive: the tracking camera zooms according to the distance to target so that the visual image maintains the proper size and scale.
• Super wide dynamic exposure: it prevents the tracking target dimming under strong light sources such as the projector.

Camera performance

Full-scene solution
Scenario demands.

Full HD image
1/2.8-inch high quality image sensor, with a maximum resolution 1920x1080.

Wide-angle lens
72.5 Degree wide viewing angle with no distortion.

Advanced focusing technique
The performance is quickly, accurately and steadily.

Low noise & SNR
Low-noise CMOS ensures super high signal to noise ratio of the video. With advanced 2D and 3D noise reduction technology, noise is reduced and image resolution is guaranteed.

Super quiet pan-tilt
High-precision stepping motor and motor driven controller ensure the pan-tilt holder operate at low and stable speed without noise.

Network performance

Audio input interface
Supports 16000, 32000, 44100, 48000 sampling rates; AAC, MP3, PCM audio coding.

Multiple audio/video compression
Supports H.264/H.265 video compression; AAC, MP3 and PCM audio compression; supports compression of resolution up to 1920x1080 with frame rate up to 60 fps and 2-channel 1920x1080p with 30 fps compression.

Multiple network protocol
Supports ONVIF, RTSP, RTMP protocols and RTMP push mode; easy to connect to streaming media server (Wowza, FMS, etc.).
