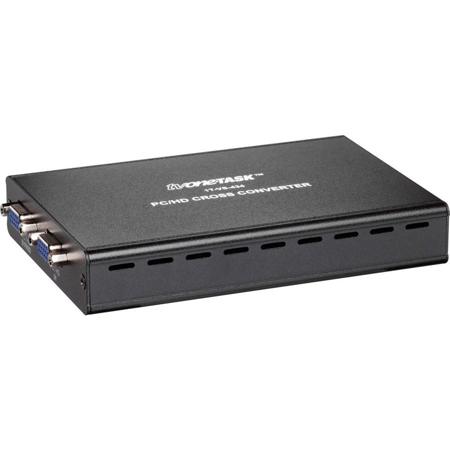

AV Toolbox 1T-VS-434 PC/HD Cross Converter
See all AV Toolbox items

AV Toolbox 1T-VS-434 PC/HD Cross Converter

SKU: AV1TVS434

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AV Toolbox 1T-VS-434 Specifications

  • Resolutions

    Input Resolutions

    VESA / Resolution / Refresh Rate

    VGA 640x480 RGBHV 60, 72, 75, 85Hz
    SVGA 800x600 RGBHV 56, 60, 72, 75, 85Hz
    XGA 1024x768 RGBHV 60, 70, 75, 85Hz
    WXGA 1280x768 RGBHV 60Hz
    SXGA 1280x1024 RGBHV 60, 75, 85Hz
    WSXGA 1680x1050 RGBHV 60Hz
    UXGA 1600x1200 RGBHV 60Hz WUXGA 1920x1200 RGBHV 60Hz

  • Resolutions 1

    Input Resolutions

    480i 720x480 NTSC YPbPr 60Hz
    576i 720x576 PAL YPbPr 50Hz
    1080i 1920x1080 YPbPr 50, 60Hz
    480p 720x480 RGBHV, YPbPr 60Hz
    576p 720x576 RGBHV, YPbPr 50Hz
    720p 1280x720 RGBHV, YPbPr 50, 60Hz
    1080p 1920x1080 RGBHV, YPbPr 50, 60Hz

  • Resolutions 2

    Output Resolutions

    VESA / Resolution / Refresh Rate

    VGA 640x480 RGBHV 60Hz
    SVGA 800x600 RGBHV 60Hz
    XGA 1024x768 RGBHV 60Hz
    WXGA 1280x768 RGBHV 60Hz
    SXGA 1280x1024 RGBHV 60Hz
    WSXGA 1680x1050 RGBHV 60Hz
    UXGA 1600x1200 RGBHV 60Hz
    WUXGA 1920x1200 RGBHV 60Hz
    480i 720x480 NTSC YPbPr 60Hz
    576i 720x576 PAL YPbPr 50Hz

  • Resolutions 3

    Output Resolutions

    1080i 1920x1080 YPbPr 50, 60Hz
    480p 720x480 YPbPr 60Hz
    576p 720x576 YPbPr 50Hz
    720p 1280x720 YPbPr 50, 60Hz
    1080p 1920x1080 YPbPr 50, 60Hz

  • Picture Control

    Brightness, Contrast, Color, Saturation, Sharpness, R-G-B Levels, Aspect Ratio

  • Inputs

    RGBHV, YPbPr: 2x via HD-15 Connector

  • Outputs

    RGBHV, YPbPr: 1x via HD-15 Connector

  • Power Requirements

    5VDC (includes AC adapter)

  • Power Consumption

    2A

  • Operating Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Dimensions (W x H x D)

    4.2 x 1 x 6.2" / 10.67 x 2.54 x 15.75cm

  • Weight

    0.7lbs / 0.32kg

About AV Toolbox 1T-VS-434

1T-VS-434 PC/HD Cross Converter is a Cross Format Scaler for PC and HD formats and resolutions. The input resolution is automatically detected and can either be RGBHV or YPbPr format. Output Resolutions up to 1920x1200 and 1080p are accommodated. In addition to converting between PC and HD, the unit can take a 480i Component Video signal (from a DVD Player for example) and convert it to PC or HD resolutions.

The output resolution and refresh rate is selected via push buttons on an On Screen Display. The integral processor provides control over many signal parameters, such as: Contrast, Brightness, Color Saturation, Sharpness, R-G-B Levels and Aspect Ratio. The unit is 5VDC powered and the included Power Adapter features a locking DC Connector for security.

AV Toolbox 1T-VS-434 Features

  • Ultra Compact, High Performance Unit
  • Cross Convert between PC and HD resolutions
  • PC Output Resolutions up to 1920x1200
  • HD Output Resolutions up to 1080p
  • Locking DC Power Connector for Security

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra Compact, High Performance Unit
  • Cross Convert between PC and HD resolutions
  • PC Output Resolutions up to 1920x1200
  • HD Output Resolutions up to 1080p
  • Locking DC Power Connector for Security

What's in the box:

  • AV Toolbox 1T-VS-434 PC/HD Cross Converter
  • Power Adapter
  • AV Toolbox 2 Year Parts and Labor Warranty
