AViPAS AV-3207 4D Serial & IP Joystick Keyboard Controller for PTZ Cameras, Black
SKU: AV3207 MFR: AV-3207
Earn VIP Reward Points
Key Features
- Achieve precise control over your PTZ cameras with our responsive joystick for seamless adjustments.
- Effortlessly manage multiple PTZ cameras using customizable presets for quick scene changes.
- Enjoy broad compatibility with VISCA, Pelco-D, and ONVIF protocols for versatile use.
- Experience reliable performance with a durable build, perfect for demanding production environments.
- Simplify your setup with easy setup options, getting you operational in no time.
- Stay updated with a convenient USB-C port, ensuring your controller always has the latest features.
Temporarily On Backorder?Expected Availability: 02/2026
Free Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Protection
About AViPAS AV-3207

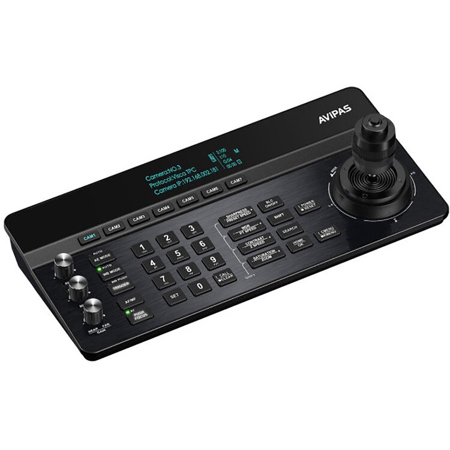

AViPAS AV-3207 is a PTZ camera joystick controller for any camera supports VISCA, PELCO D/P, VISCA over IP, UDP, TCP and ONVIF protocols. Supports control over IP(RJ45) and via RS232/RS485/RS422 Serial communications. With joystick/buttons/Knobs combination, it allows operator easily to control pan, tilt, zoom and focus of the camera, and in addition to control the settings of camera, such as iris, red & blue gains, white balance, image color adjustments, presets, P/T/Z speed and many other ways to operate your camera. It has 7 quick camera selection buttons that makes it easily to switch and control between 7 cameras, this fits the most applications. The 3.12" large OLED screen with backlit, is convenience to see the current settings and do configurations in any lighting conditions. This controller can control up to 255 cameras.
• 5 Control modes: 2 IP control mode via RJ45 (IP VISCA & ONVIF), 3 serial control mode (RS422/RS485 & RS232)
• PoE supported: IEEE (802.3af)
• Control Interface: 1x RS232 (DB9 Male)/ 1x RS422 (4 position terminal, Full-duplex) / 1x RS485 (half-duplex, shared with RS422)/ 1x LAN(RJ45)
AViPAS AV-3207 Features
- IP & Serial control simultaneously
- Precise P/T/Z control with adjustable speed
- Adjustable speed for calling presets
- Advance focus, iris, red gain, blue gain control with joystick/buttons/knobs
- 4D joystick offers simultaneous pan, tilt, zoom, and lock(unlock PTZ functions)
- Control up to 255 units
- 7 quick camera selection buttons
- 3.12" (7.9cm) OLED display status and menu
- Supports PELCO-D/P, VISCA, VISCA-over-IP, TCP, UDP and ONVIF protocols
- 5 control modes: 2 IP control modes via RJ45(IP VISCA & ONVIF); 3 serial control modes(RS422/S485 & RS232)
- PoE supported: IEEE (802.3af)
Warranty Information
This product has a limited warranty of 24 months.
