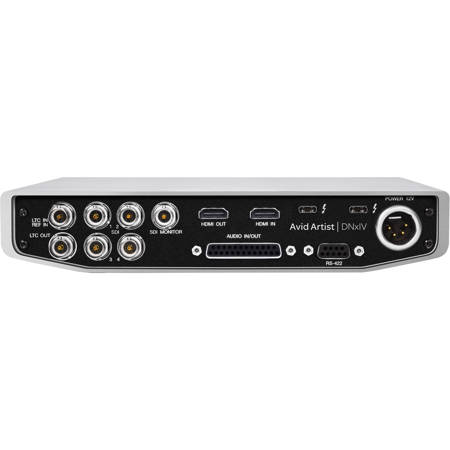

Avid Artist DNxIV
See all Avid items

Avid Artist DNxIV

SKU: AV9935723850
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Avid Ultimate Upgrade: Picture 1 regular
Avid Sibelius Ultimate Upgrade Plan for Education, Multi Seat Licenses, Download
$29.00
Avid Studio: Picture 1 regular
Avid Pro Tools Studio Audio & Music Software for Edu.,Multi Seat 1Y Subscription
$99.99
Avid : Picture 1 regular
Avid Pro Tools Studio Audio and Music Software, Perpetual License, Download
$749.00$599.00
Avid : Picture 1 regular
Avid Pro Tools Studio Audio and Music Software, 1-Year Subscription, Download
$375.00$299.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary use of the Artist DNxIV?

The Artist DNxIV is primarily used for professional-grade audio and video recording and playback. It's designed for diverse media productions and can be used for in-studio video and post-production tasks.

What connectivity options does the Artist DNxIV offer?

The Artist DNxIV offers a comprehensive range of analog and digital I/O options, including quad 12G/6G/3G-SDI, HDMI 2, DB-25, XLR, LTC, RS-422, and a dedicated headphone jack.

Can the Artist DNxIV be used with Pro Tools?

Yes, the Artist DNxIV can be used with Pro Tools and Pro Tools | Ultimate for high-quality video playback to a monitor.

Is the Artist DNxIV portable?

Yes, the Artist DNxIV is compact and portable, making it ideal for fieldwork and on-the-go projects.

Can the Artist DNxIV be used as an audio monitoring solution?

Yes, the Artist DNxIV can serve as an 8-channel audio surround sound monitoring solution.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Avid Artist DNxIV Specifications

  • Video Formats

    (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25
    (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1080i 50, 59.94, 60
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Audio Inputs Analog

    8-Channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
    +24 dBu full scale digital (0dBFS)
    +/- 0.2 dB 20 to 20 kHz frequency response
    Input supported across Ch. 1-8, Ch. 1-4, or Ch. 5-8 depending on configuration chosen

  • Audio Input Analog Microphone

    1-Channel, 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard XLR
    +24 dBu full scale digital (0dBFS) in "Line" mode
    optional +40 dB analog gain in "Mic" mode
    optional +40 dB analog gain with 48V phantom power (1mA max) in "+48V" mode

  • Audio Outputs Digital

    16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
    8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

  • Audio Outputs Analog

    8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8 x XLR on DB-25 breakout cable (cable not included)
    +24 dBu full scale digital (0dBFS)
    +/- 0.2 dB 20 to 20 kHz frequency response
    Output supported across Ch. 1-8, Ch. 1-4, or Ch. 5-8 depending on configuration chosen

  • Downstream Keyer

    Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

  • Down-Conversion 4K/UltraHD

    Real time, dedicated 4K down-conversion output (1 x BNC)
    4K to 2K down-conversion
    UltraHD to HD down-conversion

  • Reference and LTC I/O

    1 x BNC LTC output
    1 x BNC assignable to Reference video or LTC input

  • Reference

    Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
    Reference input is terminated into 75 ohms when Genlock is set to Ref In

  • Electrical Interface

    Thunderbolt 3 (2 x)

  • Machine Control

    RS-422, Sony 9-pin protocol
    9-pin D-connector pinout is as follows:
    1 GND
    2 RX-
    3 TX+
    4 GND
    5 No Connection
    6 GND
    7 RX+
    8 TX-
    9 GND
    Shell GND

  • Power (device only)

    10-20V, 30W typical, 36W max, 70W max with USB-C power delivery to external devices

  • Environment

    Safe Operating Temperature Range: 0 to 40C (32xF to 104xF)
    Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Dimensions (W x D x H)

    8.74 x 8.11 x 1.65" (222 x 206 x 41.9mm)

  • Weight

    3.4 lbs (1.5kg)

About Avid Artist DNxIV

While compact in size, the Artist DNxIV from Avid is a powerhouse of professional-grade audio and video capabilities, designed to meet the demands of today's diverse media productions. This advanced device offers a comprehensive range of analog and digital I/O options, including quad 12G/6G/3G-SDI, HDMI 2, DB-25, XLR, LTC, RS-422, and a dedicated headphone jack. These versatile connectivity options allow seamless integration of your equipment for in-studio video and post-production tasks, or any creative project that sparks your inspiration.

The Artist DNxIV is not just an interface, but a sophisticated solution for high-quality video playback to a monitor when used with Pro Tools and Pro Tools | Ultimate. This makes it an invaluable tool for mixing audio and composing music to picture, as well as for editing dialogue, ADR, and Foley, with an impressive sync accuracy better than 1/4-frame.

Beyond the standard capture, monitor, and output workflow, the Artist DNxIV expands your media production possibilities. Its portability makes it ideal for fieldwork, while its innovative features allow for direct voiceover recording to the Media Composer timeline with easy audio punch-in, HDR content monitoring, and external reference syncing. It even serves as an 8-channel audio surround sound monitoring solution, demonstrating its high-quality and professional-grade capabilities.

In essence, the Artist DNxIV is a testament to Avid's commitment to delivering innovative, high-quality, and professional audio and video equipment, making it a top choice for professionals seeking versatility and sophistication in their media production endeavors.

Avid Artist DNxIV Features

  • Professional-grade audio and video interface from Avid, ideal for diverse media productions
  • Comprehensive range of analog and digital I/O options, including quad 12G/6G/3G-SDI, HDMI 2, DB-25, XLR, LTC, RS-422, and a headphone jack
  • Compatible with Pro Tools and Pro Tools | Ultimate for high-quality video playback to a monitor
  • Enables precise audio mixing and music composition to picture, as well as dialogue, ADR, and Foley editing
  • Compact and portable design, perfect for fieldwork and on-the-go projects
  • Doubles as an 8-channel audio surround sound monitoring solution

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Professional-grade audio and video interface from Avid, ideal for diverse media productions
  • Compatible with Pro Tools and Pro Tools | Ultimate for high-quality video playback to a monitor
  • Compact and portable design, perfect for fieldwork and on-the-go projects
  • Doubles as an 8-channel audio surround sound monitoring solution

What's in the box:

  • Artist DNxIV
  • Avid 1 Year Limited Warranty
